1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment

1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment

    • 1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment
    • 1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment
  • 1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment

    Product Details:

    Place of Origin: Shanghai ,China(Mainland)
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumiation wooden package(Package size:2560*870*1330mm)
    Delivery Time: Within 5 working days after receive your payment
    Payment Terms: T/T
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Composed By: 1.6m Dye Sublimation Heater And Filter Fan United Printer: Mutoh,Mimaki,Roland And Any Other Piezo Printer
    Working Width: 1600mm(63'') Material: Blank Or Printed Polyester / Cotton
    Operation System: MS Windows XP ﹠ Windows 7 / 10 Work Speed: 20-100m / Hour
    Function: Dry Fabric And Fix Color Of Printed Section Temperature: 0-300℃
    High Light:

    textile printing machines

    ,

    printing dryer

    1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment





    Introduction:



    Composed by two parts: Heater + Filter.



    This machine mainly aimed at the post treatment program for heating cloth,dry the wet ink,then appear the real painting you want.



    Product Description:



    Product Model SR 1600

    Power

    3500W

    Working Width

    1600MM(63'')

    Blackbody Tube Working Model

    Far Infrared

    Heat Pipe Dimension

    2200MM(86.6")

    Working Temperture

    100 to 250 °C

    Tension

    0 to 1.2Kg

    Working Voltage
    Take Up working Method
    Take Up media diameter(roll to roll)

    220~240V 50HZ
    Directly out or Roll to Roll.
    300mm

    Application Material

    Cotton,Flax Fabric,Silk Fabric,Polyester Fabric,

    Flag Fabric,Satin Fabric,Warp Knitting Fabric,Nonwoven Fabrics,

    Weight

    294kg

    Certification

    CE Certificated

    Available Printer

    Mimaki, Roland , Mutoh and any Piezo Printer



    Product Advantages:



    Heater:



    1.Ceramic heating tube: Heating fast and well distributed.

    2. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape. Feeding and taking up speed controllable.

    3. Intelligent Temperature control system. (0℃----300℃ adjustable)

    4. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.

    5.Fabric feeding axis could bear the max. weight: 200KG



    Filter:



    1. Exhaust pipes fully discharge the smoke from the tube.

    2. makes the environment odorless and smokeless.

    3. Discharge slot is easily to clean.





    Features:



    • Easy to open the caver to clean inside of the heater
    • Special clutch to control the feeding up system working or stop ,it’s easy for you loading the roll materials.
    • Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs
    • No smell ,No Pollution.

    Product Advantages:



    1. Many size to choose,from 1.4m to 5m

    2. High Speed,can reach 100m per hour

    3. water based ink,no pollution

    4. Uniform Speed,make the fabric picture consonant



    Extensive use:



    Colored flag,national flag,car flag,party flag,table flag,meeting flag,beach flag and indoor outdoor flag.

    Cotton fabric to make clothes.



    1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment 0

    After Sales Service:



    1.English RIP and print software.
    2.12 months warranty.
    3.English manuals for easier installation and operation.
    4.Engineers available to service machinery overseaside.



    How To Order:

    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery

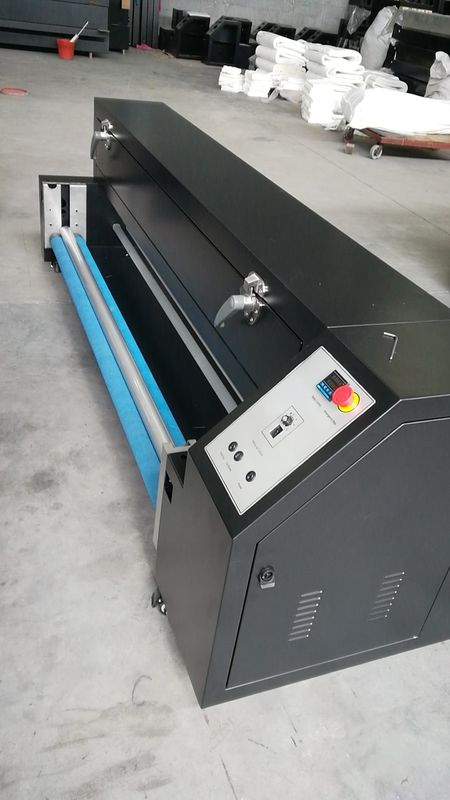

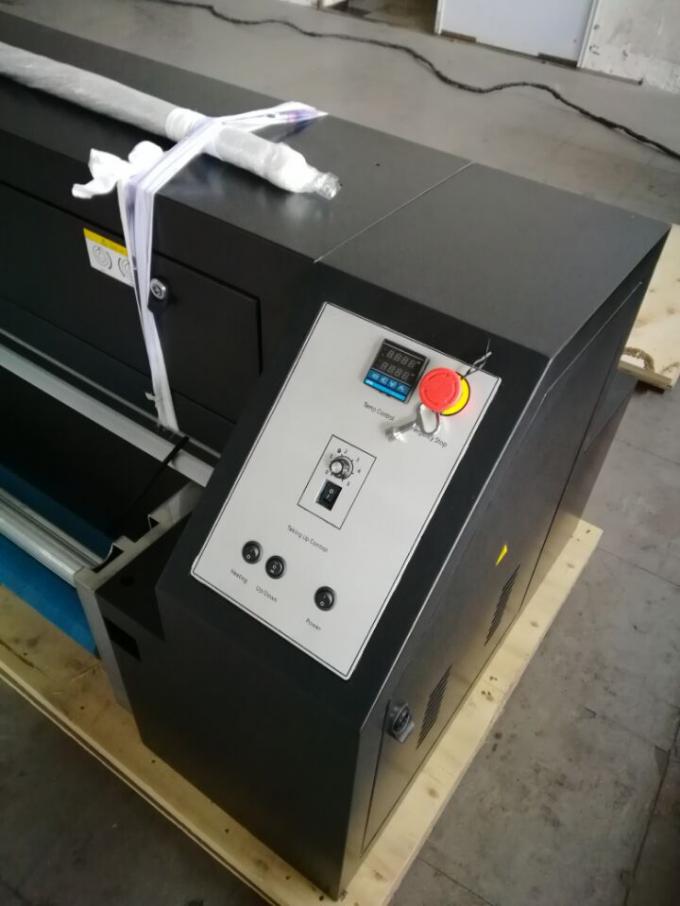

    Machine Detail Pictures:



    1600mm Dye Sublimation Fabric / Textile Heater Post Treatment Equipment 1
