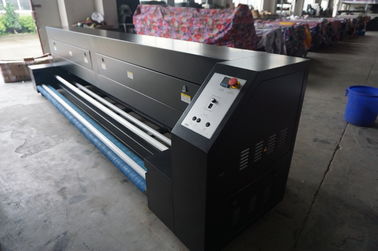

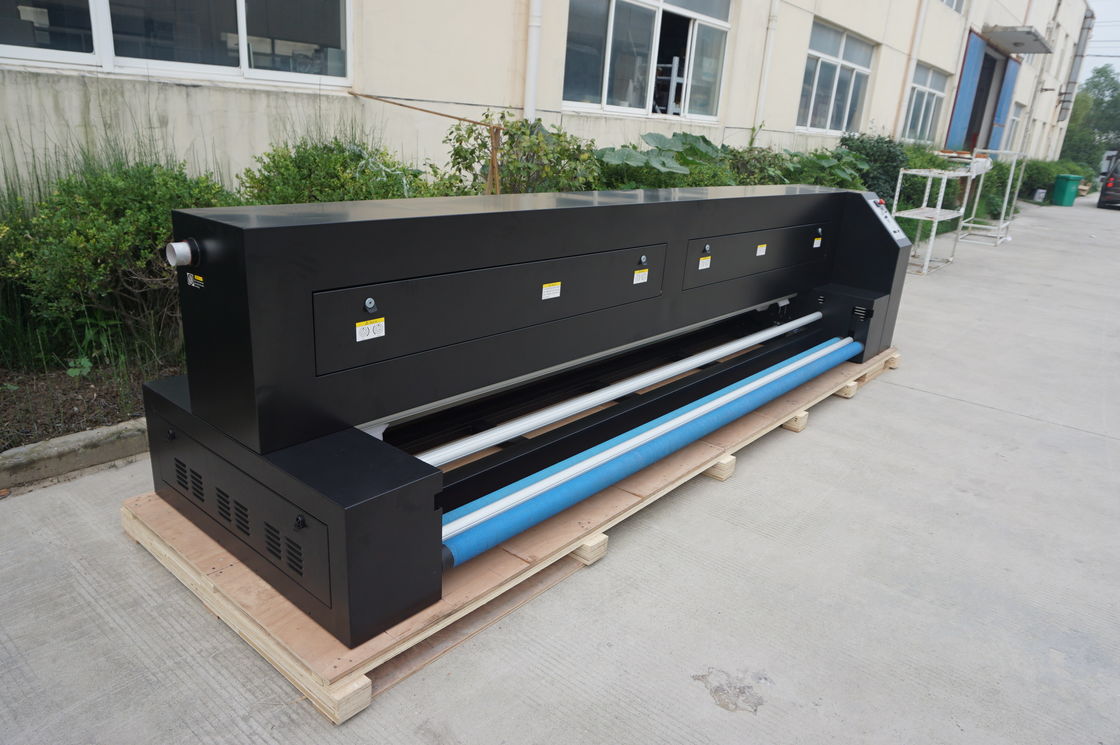

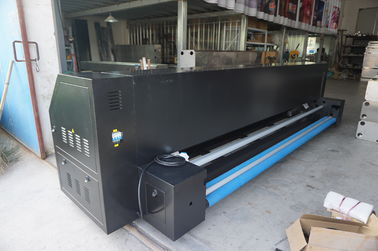

3.2m Digital Print Heat Sublimation Machine Automatic Large Size

3.2m Digital Print Heat Sublimation Machine Automatic Large Size

    • 3.2m Digital Print Heat Sublimation Machine Automatic Large Size
    • 3.2m Digital Print Heat Sublimation Machine Automatic Large Size
    • 3.2m Digital Print Heat Sublimation Machine Automatic Large Size
    • 3.2m Digital Print Heat Sublimation Machine Automatic Large Size
  • 3.2m Digital Print Heat Sublimation Machine Automatic Large Size

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 9600 USD/Set
    Packaging Details: Non fumigation wooden pakage
    Delivery Time: Whithin one week after receive the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Plate Type: Sublimation Heater Automatic Grade: Automatic
    Condition: New Color & Page: Multicolor
    Dimensions(L*W*H): 4350mm*1310mm*1230mm Usage: Textile Fixing Machine
    Working Width: 3.2m Color Mode: Dual CMYK
    Take Up Working Method: Directly Out Or Roll To Roll Gross Weight: 680kg

    3.2m Digital Print Heat Sublimation Machine Automatic Large Size





    Products Features



    1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.

    2. Our machine have excellent heat insulation,can save more power for you.

    3. Easy to load the media in and out oven during your machine working

    4. Blackbody tube have more thermal efficiency

    5. Intelligent PID Temperature Control

    6. Feeding and Taking up Are synchronous
    7. Perfect oil & water collect solution in oven..

    8. Quick Tail Gas Treatment
    9. Convenient to Maintain
    10. Easy to Set up and Operate

    11. Easy to open the caver to clean inside of oven
    12. Easy to change the active carbon from the filter

    13. Perfect heat insulation,can touch our machine without danger of scald



    Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.



    Specifications



    Product Name

    Direct Dye Sublimation machine

    Model

    SR 3200

    Blackbody Tube Working Model

    Far Infrared

    Mainly Use

    Appear and fix the color

    Power

    6.5kw(include filter fan)

    Maximum Width

    3300mm

    Heat Tube Dimension

    3400mm

    Working Temperature Control

    Room temperature ~250°C

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Machine size

    4350mm*1310mm*1230mm(not include filter

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera



    Advantage



    1. Exhaust without any smell, good environment need.
    2. Normal temperture for exhaust , no dangerouse for hot air out.
    3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree.
    4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.

    5. Can united any piezo printers



    Applications



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    After Sales Service



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
