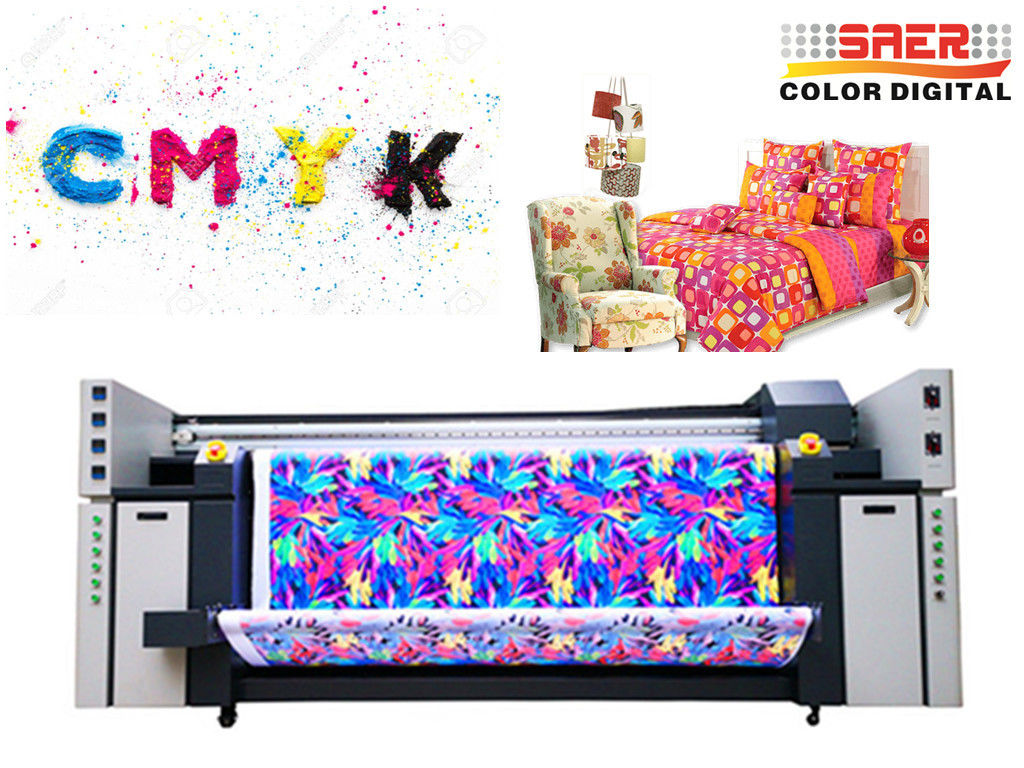

6kw 2.2M Roll To Roll Dye Sublimation Printer Direclty Fabric Printing System

6kw 2.2M Roll To Roll Dye Sublimation Printer Direclty Fabric Printing System

6kw 2.2M Roll To Roll Dye Sublimation Printer Direclty Fabric Printing System

Product Details:

Place of Origin: Shanghai, China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR2200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Non-fumigation wooden box
Delivery Time: 10 work days
Payment Terms: T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Color & Page: MULTICOLOR Heater Power: 6kw
Automatic Grade: Automatic Voltage: 110V/220V
Suitable Fabric Type: Knitted Or Woven Cotton,linen,silk,wool,chemical Fiber,nylon.oxford Etc Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
Ink Type: Sublimation Ink, Pigment Ink
High Light:

sublimation printing machine

,

digital textile printing equipment

,

cmyk printing machine



Product name:  2.2m Roll to Roll Digital Textile Printing Machine / Direclty Fabric Printing System





Printing Speed:











Printing resolution and speed



Resolution(dpi) speed
360*1800dpi(3 pass) 65m2/h

720*1220dpi(4 pass) 45m2/h

720*1800dpi(6 pass) 35m2/h





Specifications:



Product Parameter
Model type CSR2200
Print head 3 pieces Epson 4720
Ink Sublimation ink, pigment ink
Number of nozzles (400 nozzles*8lines)*3head
Color Dual CMYK
Print head high 1.5mm/6mm (adjustable)
Ink supply mode Continuous ink supply
Max materials width 2200mm
Max printing width 2000mm
Roll outer diameter 3 inch
Maximum weight for roll material 100kg
Interface USB2.0
RAM 128M
Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
Power Heater 3.5kw
Printer 100w
Temperature 30-32℃
Humidity 40-60%(Non-condensing)





Advantages:



1. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

2. The unique print platform design to make the cloth always smooth in the process of printing.

3. Unique filtering lampblack system, make the picture very clean.

4. Taking up and feeding roller are inflatable roller.

5. Taking up and feeding fabric are smoothly









Main Features :





Print head:



Three Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.



Guid Rail:



Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit .



X axis and Yaxis:



X axis and Y axis are using AC servo motors.







Application industry:





1), personality print: such as shops, cell phone decoration shop, personality gift shop.

2), advertising industry: indoor and outdoor advertising.

3), products proofing: all kinds of traditional printing sample production.

4), studio: digital image production.

5), clothing industry: sample print or character pattern of color printing.
