Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China(Mainland) |
| Brand Name: | SAER |
| Certification: | CE Certificated |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | None fumigation wooden package(Package size: 3350*1070*1550mm) |
| Delivery Time: | 7 working days after get your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 Sets Per Month |
| Product Name: | Automatic Digital T-shirt Printing Machine | Size Of Panel: | 2200mm |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Ink Supply Model: | Continuous Ink Supply |
| Max Printing Width: | 2300mm | Color Mode: | Double CMYK(Cyan,Megenta,Yellow,Black) |
| Rip Software: | Maintop 5.3 Rip Software Or Onyx Optinoal | Ink: | Sublimation,Reactive And Pigment Ink |
| Material: | Polyester,Cotton,Wool And Silk Etc | Automatic Grade: | Automatic |
| Print Head: | EPSON 4720 *3 | ||
| High Light: | mimaki digital printing machine,digital fabric printer,continuous inkjet printer |
||
Automatic Digital T-shirt Printing Machine / Directly Textile Printer
characteristics:
1. Low cost:About 2 degree electricity cost per hour with non-stop running.
2. High productivity:40m2 / hour of the speed.
3. Dye Sublimation system:print onto fabric with sublimation ink.
4. Directly print on textile:no need any transfer paper.
5. Good after sales service:1 year maintenance period.
Specifications:
|
Model |
CSR 2200 |
| Brand | SAER |
|
Print head |
Piezo technology, Epson 4720 print head |
|
Ink |
Sublimation ink,pigment and reactive ink |
|
Color model |
Double 4 Color(CMYK) |
|
Nozzles |
(180 nozzles x 8 lines ) x3 pieces of head |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 764kg Gross Weight : 886kg |
Printing Speed:
|
|
Resolution speed |
| 360x1800dpi(3pass) 65m²/h | |
| 720x1200dpi(4pass) 45m²/h | |
| 720x1800dpi(6pass) 35 m²/h |
Available Ink and Material:
a. Sublimation Ink:
mainly used in polyester fabric.
b. Reactive Ink:
For cotton,linen and silk etc.
c. Pigment Ink:
For all kinds of textile fabrics.
Advantages:
Product Feature:
1. This Dye Sublimation Fabric Printing Machine For any kind of fabric material. It can Direct Printing Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.
2. It Adopt Newsest Epson DX7 Printhead With High Precison.
3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.
4. This machine with print and heat function . save cost and place.
5. It is direct print image onto Fabric .
Application:
Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
(1) One year of warranty time.
(2) About the after-sales service:
A. If the printer has problem, the client can take a picture or video to the technician.
B. The technician will teach the client to fix and operate the printer through the internet.
C.We will ask the client to send back the board which is wrong to check it.
D.The technician is full of experience, and the sales also keep in touch with the client.

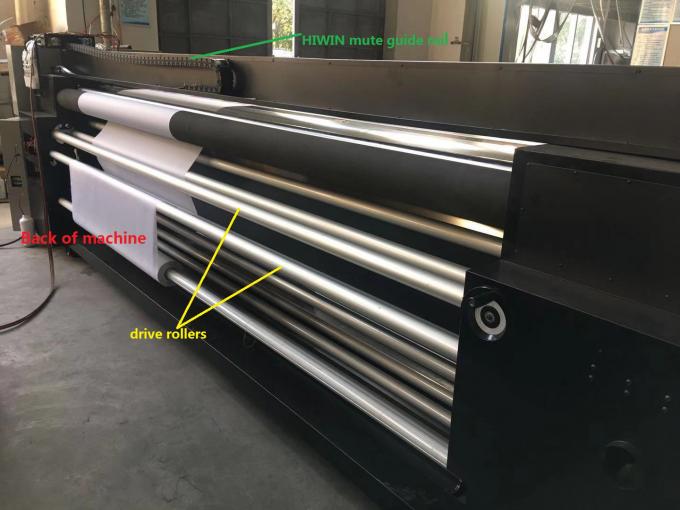

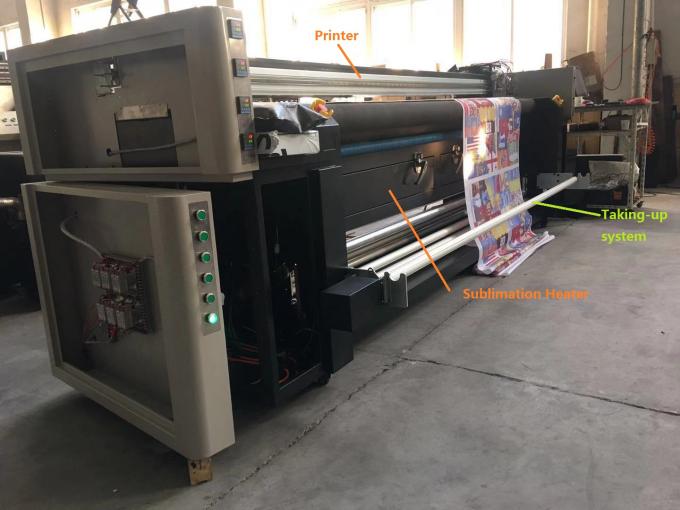

Machine Details:
