Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System

Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System

    • Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System
    • Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System
  • Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System

    Product Details:

    Place of Origin: Shanghai of China(Mainland)
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
    Delivery Time: 10 working days after get your payment
    Payment Terms: T/T
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Wide Format Fabric Plotter Application: Fabric Image Print And Heat
    Resolution: 1440 Dpi Maximum Color Mode: 4 Color(CMYK)
    Print Head Type: Two Epson DX5 Print Head Rip Software: Onyx
    Working Type: Connect With The Computer Heating System: Front Heater,print Platform Heat,back Heat
    High Light:

    epson color printer

    ,

    epson sublimation printer

    Auto Wide Format Fabric Plotter , Epson DX5 Head high Resolution




    Contents:



    ① integrated printer system(print and heat together)

    ② filter fan for pollute waste air



    Technical Detais:



    Model CSR 3200
    Printhead technology Piezo technology, Epson DX5
    Amount of head 2 Pcs
    Color Mode 4 color,Cyan,Magenta,Yellow,Black
    Nozzles 180 nozzles * 8 lines
    Print Head Height 1.5mm to 6mm(adjustable)
    Ink Supply Mode Continuous Ink Supply



    Max Printing Width 3200mm
    Roll Owter Diameter 3 Inch
    Max Weight For Roll Material 100KG
    Interface USB 3.0
    RAM 128M
    Printer Power 380V
    Power

    Direct Dye Sublimation Heater 3500W

    Printer 2000W

    Environment temperature 20-32 degree
    Weight 1130KG


    Printing Resolution And Speed:



    Resolution(DPI) Print Mode Speed
    720*360dpi(2 pass) Sketch Mode 40m²/h
    360*1080dpi(3 pass) Standard Mode 32m²/h
    720*720dpi(4 pass) High quality Mode 22m²/h
    720*1080dpi(6 pass) Precision Mode 18m²/h
    720*1440dpi(8 pass) High-precision Mode 12m²/h



    Package Details:



    Package GW(KG) NW(KG) Dimension(CBM)
    2 Pcs 1439 1130 8.76


    Advantages:


     Print and Heat integrated,can be finished by a device directly, eliminating the need for printed material or the installation do extra work



    1. Constant temperature control:temperature adjustable

    2. Low Consumption,high efficiency.

    3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.

    4. The finished product can be directly obtained by one set of equipment.



    characteristics:

    1. Low cost:About 2 degree electricity cost per hour with non-stop running.
    2. High productivity:40m2 / hour of the speed.
    3. Dye Sublimation system:print onto fabric with sublimation ink.
    4. Directly print on textile:no need any transfer paper.
    5. Good after sales service:1 year maintenance period.



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.

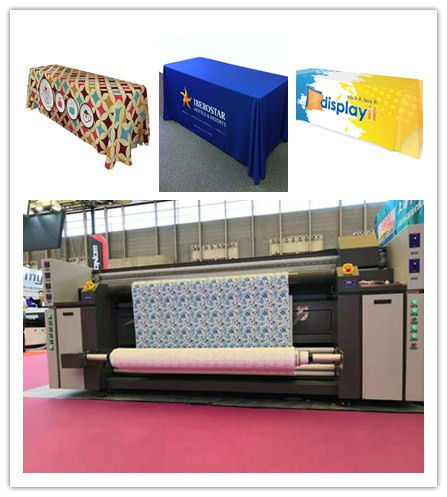

    Back cushion Hand flag Skirt Curtain
    Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 0 Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 1 Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 2 Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 3


    Description:

    1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10.Low cost and no need any transfer paper.


    Applications:


    Mainly use for publicity and pilot identify of commercial fair and major incidents.


    How To Order:



    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery


    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



    Printer Detail Pictures:



    Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 4 Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 5 Auto Wide Epson Head Printer With Epson DX5 Head High Resolution Integrated System 6
