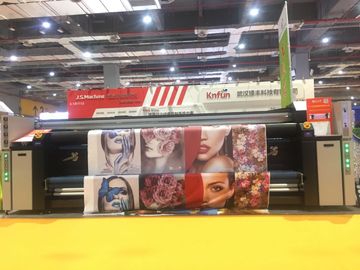

Automatic Roll To Roll Flag Printing Machine 3.2m Digital Piezo Flag Printer

Automatic Roll To Roll Flag Printing Machine 3.2m Digital Piezo Flag Printer

    • Automatic Roll To Roll Flag Printing Machine 3.2m Digital Piezo Flag Printer
    • Automatic Roll To Roll Flag Printing Machine 3.2m Digital Piezo Flag Printer
  • Automatic Roll To Roll Flag Printing Machine 3.2m Digital Piezo Flag Printer

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package
    Delivery Time: 14 days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Type: Inkjet Printer Condition: New
    Plate Type: Roll To Roll Color & Page: Multicolor
    Usage: Fabric Printing Automatic Grade: Automatic
    High Light:

    banner printing machine

    ,

    textile digital printing machine

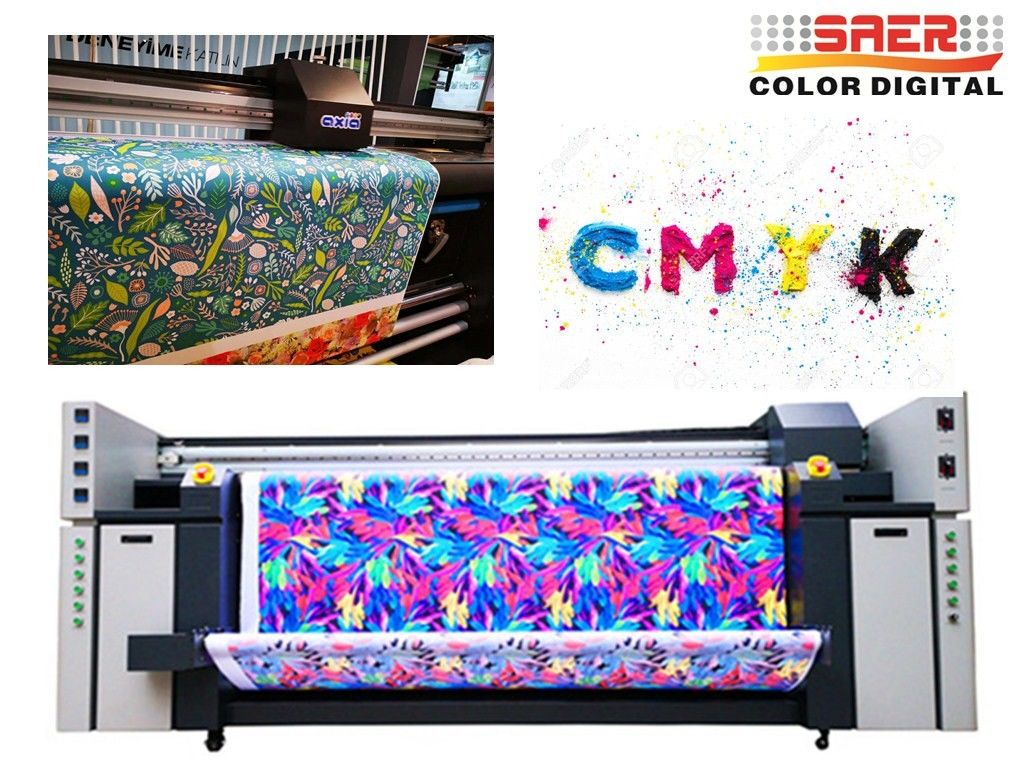

    Product name: Digital Piezo Flag Printer / Sublimation Textile Printing Machine





    Product features:



    1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.




    2. Our machine have excellent heat insulation, can save more power for you.




    3. Easy to load the media in and out oven during your machine working




    4. Blackbody tuble have more thermal efficiency





    5. Intelligent PID Temperature Control



    6. Feeding and Taking up Are synchronous




    7.Taking up can choose roll to roll .





    8. Quick Tail Gas Treatment




    9. Convenient to Maintain




    10. Easy to Set up and Operate





    11. Easy to open the caver to clean inside of oven




    12. Easy to change the active carbon from the filter







    Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



    Specification:



    Product parameter
    Product name Sulimation textile printing system
    Model CSR3200
    Include One set of whole machine and one filter
    Ink model Sublimation ink
    Available color Dual CMYK
    Print head Piezo technology,2 Epson DX5 print head
    Max material width 3300mm
    Max printing width 3200mm
    Print head high control 1.5mm/1.6mm(adjustable)
    Printing resolution and speed Resolution(DPI)                  Speed
    360*1080dpi(6 pass)        18m2/h
    540*720dpi(6 pass)          18m2/h
    720*720dpi(4 pass)          23m2/h
    360*2160dpi(6 pass)        16m2/h
    Media type Polyester
    Ink feeding system 4 color  mode:400cc  cartriage*2color  800cc/color
    Roll outer diameter 3 inch
    Max weight for roll material 100kg
    Head cleaning Automatic/Manual
    RAM 128M
    Printer power AC380V(Adaptive)  50/60Hz±1Hz
    Heater power consuption 3500KW
    Printer power consuption 7.5KW
    Weight 890KG
    Operation environment 20-23oC   Humidity:40-60% (non-condensing)



    Description:



    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    8· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



    Advantages:

    • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
    • The printed image color is bright and vivid with nice color gamut.
    • Rapid speed and various printer to choose
    • It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
    • Low cost and no need of any kind transfer paper, liner breaking the highest costs performance



    Application:



    Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show,feather flag and so on.



    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
