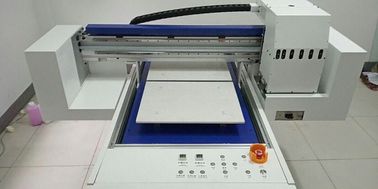

Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads

Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads

    • Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads
    • Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads
    • Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads
  • Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR2200(R)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: withion one week workdays after get the payment
    Payment Terms: Western Union, T/T
    Supply Ability: 100 per month
    Contact Now
    Detailed Product Description
    Color & Page: Multicolor Print Head: Ricoh GH2220*8 Pcs
    Ink Type: CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW Condition: New
    Media Type: Fabric Automatic Grade: Automatic
    Warranty: 1 Year Brand Name: SAER
    High Light:

    t shirt screen printing machine

    ,

    garment printing machine



              Commercial t-shirt printing machine A3 size with 8 pcs Ricoh Print heads




    Ink Supply:




    Ink Color CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
    Ink type Import pigment ink, good fastness,bright color
    Ink supply Negative pressure supply ink





    Machine speed:





    Speed Production models A3 size 4pass Dark color fabric 1min.14s
    Light color fabric 58s
    precision A3 size 6pass Dark color fabric 1min.52s
    Light color fabric 1min.27s








    Advantage:



    1. Double guild rail to keep stable of machine.



    2. Import textile ink.The print finish has excellent colour fastness, high elasticity and durability while remaining soft to the touch.



    3. There's no minimum quantity for custom printed t-shirts and no setup costs so low ,fast turnaround jobs.



    4. DTG has amazing detail and vibrancy, allowing for accurate reproductions of high resolution full colour photographic images onto almost any garment



    5. Our company is committed to supplying ethically sourced and quality driven products







    Parameters:



    Items Technical Parameters
    Model

    CSR2200(R)

    Print head Print head Ricoh GH2220 head
    QTY 8 pieces
    Tray Standard configuration Optional configuration
    Tray size 380*480mm 600*1200mm
    Tray Numbers 3 1
    Interface USB
    Computer system CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
    Working environment temperature:20℃-30℃, humidity:55%-70%
    Power supply 210-230VAC 50/60 HZ 16A
    Software Rip software
    Machine Dimension 2065*1705*1240mm
    Machine Weight 260kg







    Ricoh GH2220 print head:





      Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads 0Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads 1




    Operation mode :



     1.Upload pictures to computers



    Upload the required pictures to the computer software and arrange them neatly in the software .



    2.Location of clothes



    Fixed and arranged the samples needed to be typed on the machine.



    3. Start printing



    Click on the button to start printing,wait for more than one minute ,print successfully,effect display.







    Printed sample:





    Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads 2









     Questions:

    1. Do you offer free printing samples?
    Yes, we can print some samples according to customer's requirements.

    2. If I have some technical problem, how can you help us to solve it?
    Detailed description, photos or video will help our technician analyze the problem and give solution accordingly,will send an overseas engineer service to you.


    3. Once there is something need to replace, what can I do?
    We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.


    4. Can we send our technician to your factory for training?
    Yes, you are warmly welcome to visit us for free training.

    5. We want to become exclusive distributor of your machines?
    We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship.


    6. How about Warranty?
    13 months warranty for our machines. During warranty period, we will send free parts for replacement (circuit boards) while broken parts should be sent back.

    7. Can I customize the appearance color of the machine?
    Yes, we can. we can support lots of special design model according to your request

    8. How can assemble and install the machine myself?
    Our packaging contains a complete set of installation tutorials, text and video manuals to help you master the machine.

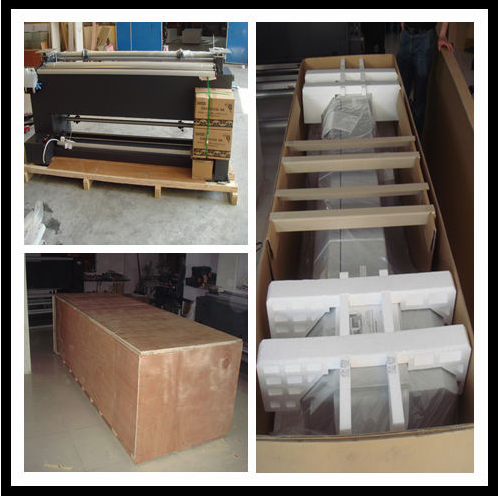

    Package :







    Commercial T Shirt Printing Machine A3 Size With 8 Pcs Ricoh Print Heads 3
