Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply

Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply

Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply

Product Details:

Place of Origin: China
Brand Name: SAER
Certification: CE
Model Number: CSR 2200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: None fumigation wooden package (Package size: 3350*1070*1550mm)
Delivery Time: 10 working days after the payment
Payment Terms: T/T
Supply Ability: 100 Sets Per Month
Contact Now
Detailed Product Description
Ink Supply Model: Continous Ink Supply Rip Software: Onyx
Ink Type: CMYK Dye Sublimation Ink,pigment Ink,reactive Ink Media Type: Polyester,Cotton,Wool,Linen And Silk Blank Fabric
Color Management: Superior ICC Profile Printing Interface: Computer Control The Output Directly
Media Handle: Automatic Feeder,automatic Take Up Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
Media Heating: Pre-heating & Post Color Fixation Include: All-in-one Printing System And Filter
Special Characteristic: No Pinch Roller Resolution: 360dpi,720dpi,1080dpi,1440dpi
High Light:

mimaki digital printing machine

,

digital fabric printer

,

continuous inkjet printer

Digital Fabric Printing Machine Flags Printing Printers Polyester Fabric Banner Print



Brief description:



Consist of 2.2m integrated Digital Textile printing system and filter fan, dye sublimation printing type, print directly on blanket fabric material.printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed,color fastness level 3.




Product Features:



  • SAER Sublimation Textile Printer:with high resolution,outdoor and indoor applied,designed especially for printing of textile,sublimation Flag banner cloth etc.
  • This unit is double 4 color type printer,Adopts the Epson 4720 printhead
  • Using HIWIN mute guide rail.germany IGUS silent drag chain,make your printing environment more quiter.
  • Strong Media Feed-in system,for smooth printing on heavy materials,such as textile,sublimation banner,cloth and so on.
  • X axis and Y axis are using AC serve motors
    Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply

Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply






Technical Details:



Brand Name SAER

Model

CSR 2200

Print head technology

Piezo technology

Print Head Epson4720

Color mode

Double four color(C,M,Y,K)

Nozzles

(180 nozzles x 8 lines ) x2 heads

Printer head higher

1.5mm / 6mm ( Adjustable )

Ink supply model

Continuous ink supply

Maximum materials width

2400mm

Maximum printing width

2200mm

Roll diameter

3 Inch

Maximum weight for roll material

100kg

Interface

USB 2.0

RAM

128M

Print Power

AC100-120V./AC220-240V(Adaptive)   50/60Hz

Power consumption

Direct dye sublimation heater 3500W

Printer                               100w

Temperature

20-32°C

Humidity

40-60% Non-condensing

Available Media Polyester,cotton,silk,linen,textile material
Media Handle Automatic feeder,automatic take up
File Format

TIFF,JPEG,PDFand other common image formats

Control software Chinese version and English Version

Weight

Net Weight : 764kg                  Gross Weight : 886kg

Rip Software Onyx
Working Process Windows XP / Windows 7

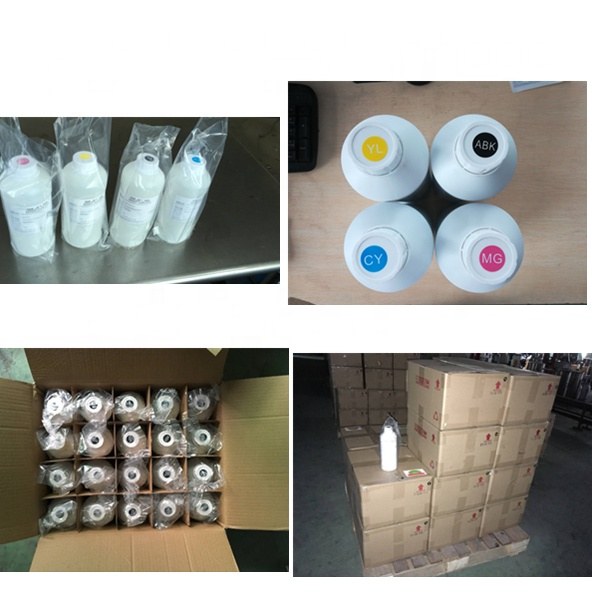

Available Ink and Material:



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags, banner shows and for home decoration

2) Reactive Ink: For cotton, linen and silk etc.

After printing and heating, the materials can use to make clothes and scarf.

3) Pigment Ink: For all kinds of textile fabrics.

Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply

Rip Software:


1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.

2.Colorful color replacement function can easily reproduce the required color.





After Sales Service:

1. One year warranty time.
2. Provide 24 hours online service.
  when you the first time operate the machine,our engineer will be online to guide you how to operate.
  When your machine gets any problem, our engineer will help you to solve it through remote control.
3. If necessary,we can send you new spare part.



Application:

Home Decoration:Print on polyester fabric to make windows curtain and Table cover,bed sheets and so on also can make Wall Stickers.
Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on.



Computer Control Digital Fabric Printing Machine Flags Printing Printers Continous Ink Supply
