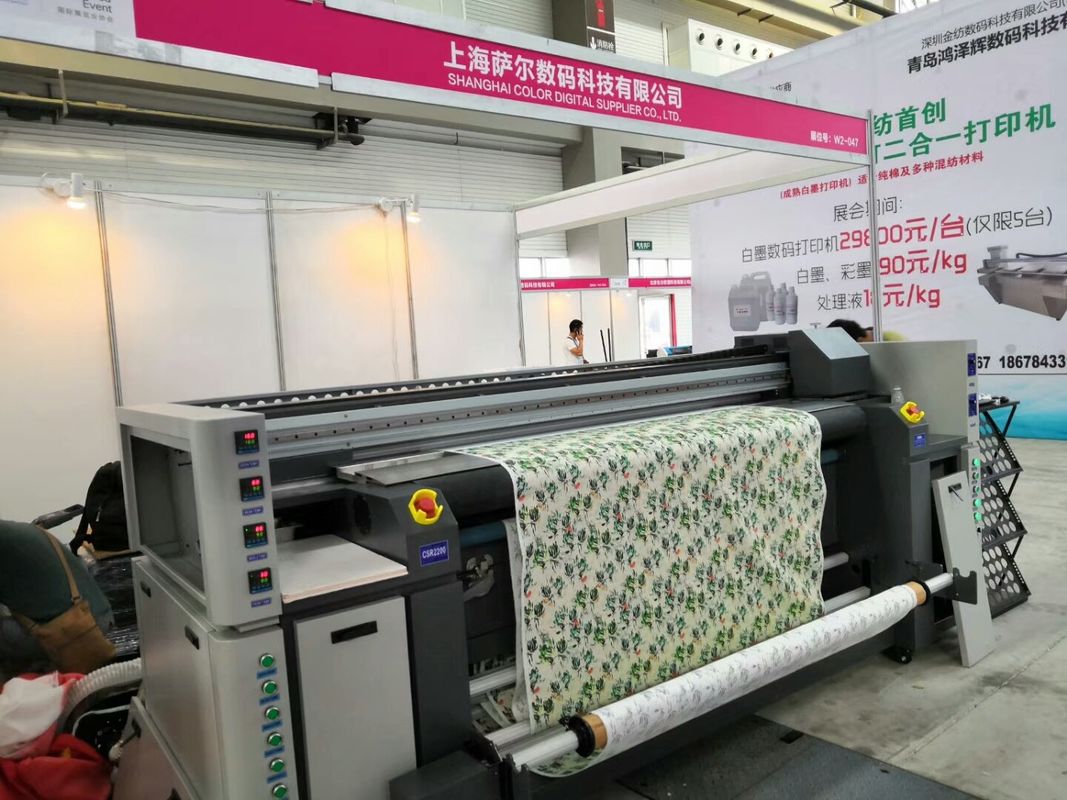

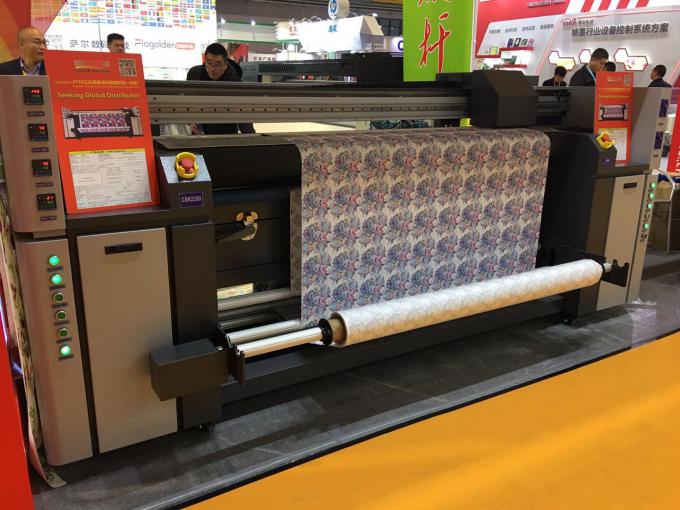

Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads

Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads

    • Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads
    • Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads
  • Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
    Delivery Time: 10 working days after get your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Direct Fabric Plotter Application: Indoor & Outdoor Flag Making
    Max Resolution: 1440 DPI Color Mode: Dual CMYK
    Voltage: 220V Gross Power: 5.5KW
    Print Head Type: Three Epson 4720 Print Heads Plate Type: Roll To Roll Printing Machine
    Rip Software: Maintop 5.3 Rip Software Or Neostampa 8 Optional Compatible OS: Win XP & Win 7
    Printing Width: 2.2m Ink: Sublimation,Reactive And Pigment Ink
    Printing Interface: Connect With Computer
    High Light:

    large format printers

    ,

    fabric printer machine

    ,

    large format plotter

    Large Format 2200mm Fabric Plotter With Three Epson 4720 Print Heads





    Specifications:



    Specification

    Model

    CSR2200

    Print head

    Piezo technology, Epson DX7 printer head

    Ink

    Sublimation ink,Reactive Ink,Pigment Ink

    Color model

    Dual  KCMY

    Nozzles

    ( 180 nozzles x 8 lines ) x2 heads

    Printer head higher

    15mm/6mm ( adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2300mm

    Max printing width

    2200mm

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 2.0

    RAM

    1.2M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine power

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3200W

    Printer                               5500w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net 646kg                  Gross 886kg



    Printing Resolution And Speed:



    Resolution(DPI)          Speed

    720*360dpi(2 pass)      40m²/h

    360*1080dpi(3 pass)     32m²/h

    720*720dpi(4 pass)      22m²/h

    720*1080dpi(6 pass)     18m²/h

    720*1440dpi(8 pass)     12m²/h



    Advantages:



    1. Direct textile sublimation printer can directly print on polyster fabric,no need any transfer paper.

    2.The printed fabic after sublimation heater process can directly make banner flag etc,no fade.

    3.The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.



    Description:



    1. Three Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter

    3. X axis and Y axis are using AC servo motors.

    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.

    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system,make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly

    10.Low cost and no need any transfer paper.



    Applications:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

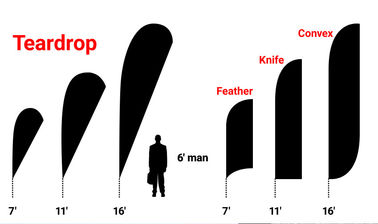

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads 0



    Printing Samples:

    Custom Made 2200mm Large Format Plotter With Three Epson 4720 Print Heads 1





    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
