Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution

Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution

    • Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution
    • Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution
  • Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: One set
    Price: Negotiation
    Packaging Details: no fumigation wooden package
    Delivery Time: Within 5-8 Working days after the payment
    Payment Terms: T/T
    Supply Ability: 1000 sets / month
    Contact Now
    Detailed Product Description
    Product Name: Sublimation Fabric Plotter Suitable Fabric Type: Polyester,silk,chemical Fiber,nylon.oxford Etc
    Media Processing: Rear Auto Feeding Print Head: Epson Print Head
    Ink Supply Mode: Continuous Ink Supply Mode Maximum Print Width: 2100mm
    Process Speed: Adjustable Temperature Adjustment: P.I.D. Controller Up To 250℃
    Available Ink: Sublimation / Pigment Ink Maximum Speed: 65sqm Per Hour
    Product Name: CSR 2200 Printer Machine Condition: New
    Plate Type: Textile Printer Ink Type: Sublimation Ink
    Usage: Cloths Printer
    High Light:

    digital textile printing equipment

    ,

    cmyk printing machine

    Digital Dye Polyester Textile Sublimation Printing Fabric with High Resolution Printer



    Sublimation Printing Detail:



    composed by two parts: 2.2m printing system and one filter fan



    sublimation printing type



    printed material can use indoor and outdoor



    sublimation plotter can stand sunshine and no fade



    sublimation printing machine can be washed,no pollute to air



    pigment and sublimation ink for fabric,mainly can make clothes,also bed sheets etc.







    Sublimation Machine Description:



    • Saer Textile Inkjet Printer: with high resolution, outdoor and indoor applied
    •
    • Designed especially for printing of textile, sublimation banner cloth etc.
    •
    • This unit is double 4 color type outdoor and indoor printer, Adopts the Epson printhead
    •
    • fast speed, long lifespan, high precision.
    •
    • Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.
    •
    • Using HIWIN mute guide rail.
    •
    • germany IGUS silent drag chain
    •
    • make your printing environment more quiet.
    •
    • Refillable ink cartridge reduces production cost.
    •
    • Strong Media Feed-in system, for smooth printing on heavy materials
    •
    • X axis and Y axis are using AC serve motors
    • Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution 0



    Product Model CSR 2200
    Printhead Piezo technology, Three Epson printer heads
    Ink Environmental Sublimation ink, Pigment Ink optional
    Color Dual KCMY
    Printing Media Soft roll to roll
    Fabric Type Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc
    Medium Transfer Continous Transport Automatic Fabric Feeding & Taking-up
    Nozzles (180 nozzles x 8 lines ) x3 heads
    Printer head higher 15mm / 6mm ( Adjustable )
    Ink supply model Continuous ink supply
    Ink Volume 2000ML Volume ink,automatic ink detector
    Max materials width 2200mm
    Printing width Maximum 210 cm
    Printing Speed Production Mode 45㎡/hour
    Image Data Format TIFF,JPEG
    Rip Software ONYX
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 3.0
    RAM 128M
    Printer power AC210-230V / AC220-240 Adaptive 50/60Hz
    Sublimation machine AC220-240V. 16A. 50/60Hz
    Power consumption Direct dye sublimation heater 3500w
    Printer 1000w
    Temperature 20-32°C(68 – 89.6 ℉)
    Humidity 40-60% RH



    Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution 1

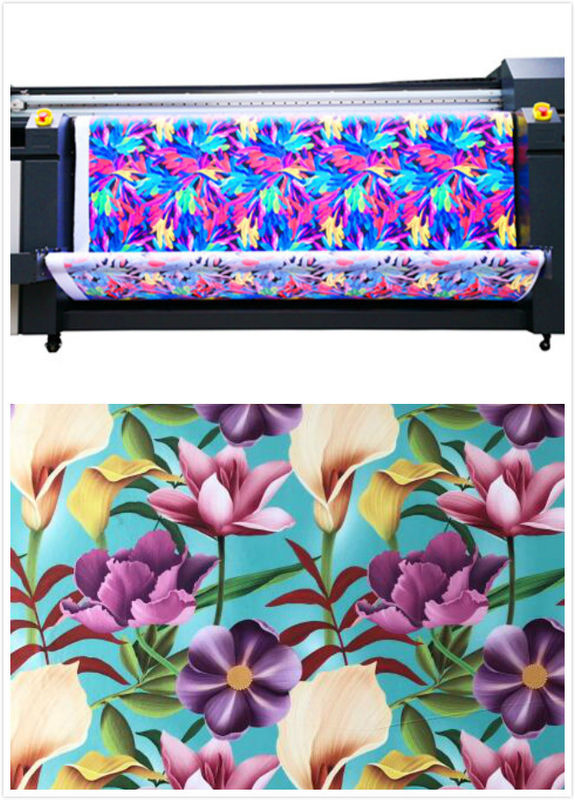

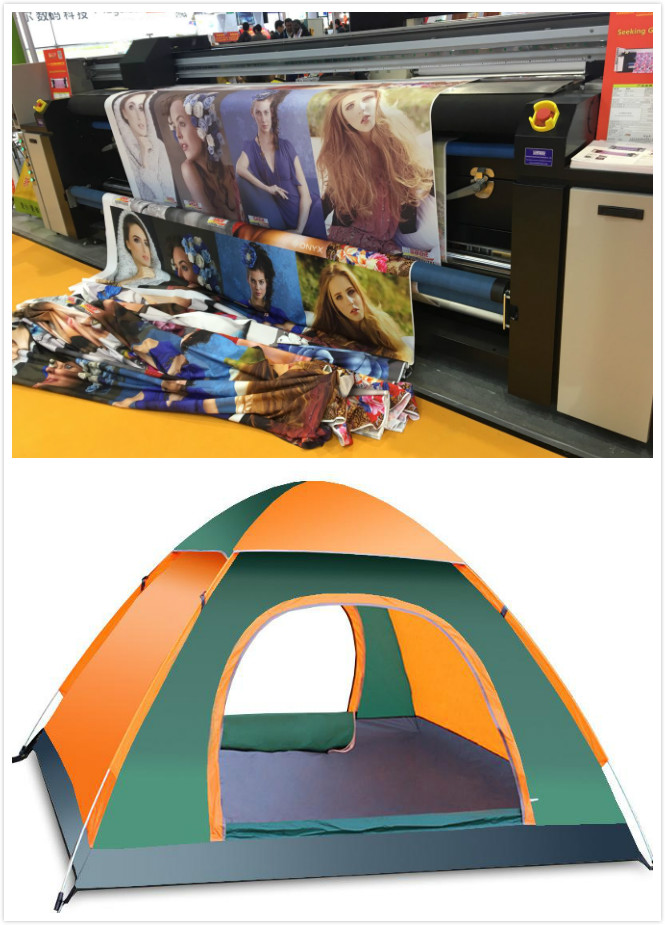

    Applications:



    Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution 2


    Digital Dye Polyester Textile Sublimation Printing Machine With High Resolution 3
