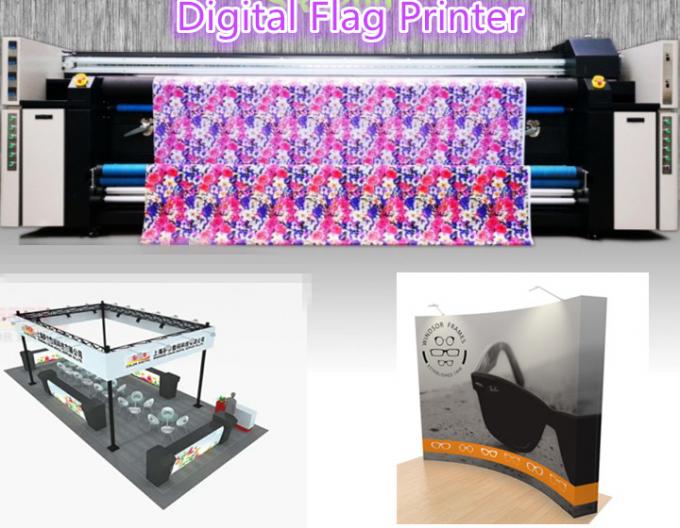

Digital Sublimation Flag Printing Machine Epson Head For Custom Flag / Banner

Digital Sublimation Flag Printing Machine Epson Head For Custom Flag / Banner

Digital Sublimation Flag Printing Machine Epson Head For Custom Flag / Banner

Product Details:

Place of Origin: Shanghai ,China(Mainland)
Brand Name: SAER
Certification: CE
Model Number: CSR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
Delivery Time: 10 working days after get your payment
Payment Terms: T/T, Western Union
Supply Ability: 100 set / month
Contact Now
Detailed Product Description
Product Name: Digital Sublimation Printing Machine Application: Commercial Fair And Advertisement Flag
Resolution: 720 DPI To 1800 DPI Color Mode: Double 4 Color CMYK
Voltage: 210-230V,50 / 60HZ Gross Power: 5.5KW
Print Head Type: Three Epson 4720 Print Head Rip Software: Maintop 5.3 Rip Software Or Onyx Optional
Compatible OS: Win XP & Win 7 Printing Width: 3.2m
Working Type: Connect With The Computer Print Media Type: Polyester,cotton,silk,wool Etc

Digital Sublimation Epson Head Printer For Custom Fabric Printing Use




Technical Detais



Model CSR 3200
Print head Piezo technology, Epson 4720
Amount of head Three Pieces
Color Mode Cyan,Magenta,Yellow,Black
Print Head Height 1.5mm / 6mm(adjustable)
Ink Supply Mode Continuous Ink Supply



Max Printing Width 3200mm
Roll Owter Diameter 3 Inch
Max Weight For Roll Material 100KG
Interface USB 3.0
RAM 128M
Printer Power 210-230V
Power

Direct Dye Sublimation Heater 3500W

Printer 2000W

Environment temperature 20-32 degree
Weight 1120KG


Printing Resolution And Speed:

Resolution(DPI)          Speed

360*1800dpi(3 pass)     65m²/h
720*1200dpi(4 pass)      45m²/h
720*1800dpi(6 pass)     35m²/h

 Digital Sublimation Flag Printing Machine Epson Head For Custom Flag / Banner



Contents:



One all-in-one printer(printer and heat together)

One filter fan for pollute waste air



Usage:



Home decoration,outdoor advertisement and for cloth making





Advantages:


 Print and Heat together,can be finished by a device directly, eliminating the need for printed material or the installation do extra work



1. Constant temperature control:temperature adjustable

2. Low Consumption,high efficiency.

3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.

4. The finished product can be directly obtained by one set of equipment.



Available Ink and Material:



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Reactive Ink:For cotton,linen and silk etc.

After printing and heating,the materials can use to make clothes and scarf.

3) Pigment Ink:For all kinds of textile fabrics.


Description:


1. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
2. X axis and Y axis are using AC servo motors.
3. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
4. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
5. The unique print platform design to make the cloth always smooth in the process of printing.
6. Unique filtering lampblack system,make the picture very clean.
7. Taking up and feeding roller are inflatable roller.
8. Taking up and feeding fabric are smoothly
9. Low cost and no need any transfer paper.





Applications:


Mainly use for publicity and pilot identify of commercial fair and major incidents.


How To Order:



Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery


After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
