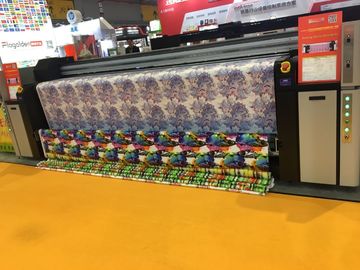

Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment

Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment

    • Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment
    • Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment
  • Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment

    Product Details:

    Place of Origin: CHINA
    Brand Name: SAER
    Certification: CE CERTIFICATE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiation
    Packaging Details: without fumigation wooden package
    Delivery Time: 5-8 DAYS AFTER PAYMENT
    Payment Terms: T/T
    Supply Ability: 1000 sets / month
    Contact Now
    Detailed Product Description
    Type: Inkjet Printer RAM: 128M
    Usage: Cloths Printer Automatic Grade: Automatic
    Warranty: 1 Year Keywords: Sublimation Machine
    Product Name: Sublimation Textile Heat Transfer Printer Feature: High Speed
    Ink: Pigment Ink Sublimation Ink Print Head: Epson High Presicion
    Resolution: 1800DPI
    High Light:

    cloth printing machine

    ,

    large format printing machine

    Digital Inkjet Printing Sublimation Printer Machine Direct to Polyester Fabric



    Specifications:



    1. Constant temperature heating box

    rapidly heating, good leakproofness ensure the temperature constant

    2. Green smoke extraction filtration system

    filter and sublimation smoke efficiently, keep the environment clean

    3. open ink-supply system

    Compatible with many brands of sublimation ink, easily to control the printing cost.



    Product Model CSR 2200
    Printhead Piezo technology, Three Epson printer heads
    Ink Environmental Sublimation ink, Pigment Ink optional
    Color Dual KCMY
    Printing Media Soft roll to roll
    Fabric Type Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc
    Medium Transfer Continous Transport Automatic Fabric Feeding & Taking-up
    Nozzles (180 nozzles x 8 lines ) x3 heads
    Printer head higher 15mm / 6mm ( Adjustable )
    Ink supply model Continuous ink supply
    Ink Volume 2000ML Volume ink,automatic ink detector
    Max materials width 2200mm
    Printing width Maximum 210 cm
    Printing Speed Production Mode 45㎡/hour
    Image Data Format TIFF,JPEG
    Rip Software ONYX
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 3.0
    RAM 128M
    Printer power AC210-230V / AC220-240 Adaptive 50/60Hz
    Sublimation machine AC220-240V. 16A. 50/60Hz
    Power consumption Direct dye sublimation heater 3500w
    Printer 1000w
    Temperature 20-32°C(68 – 89.6 ℉)
    Humidity 40-60% RH

    Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment 0

    APPLICATION SHOW

    Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment 1



    Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment 2

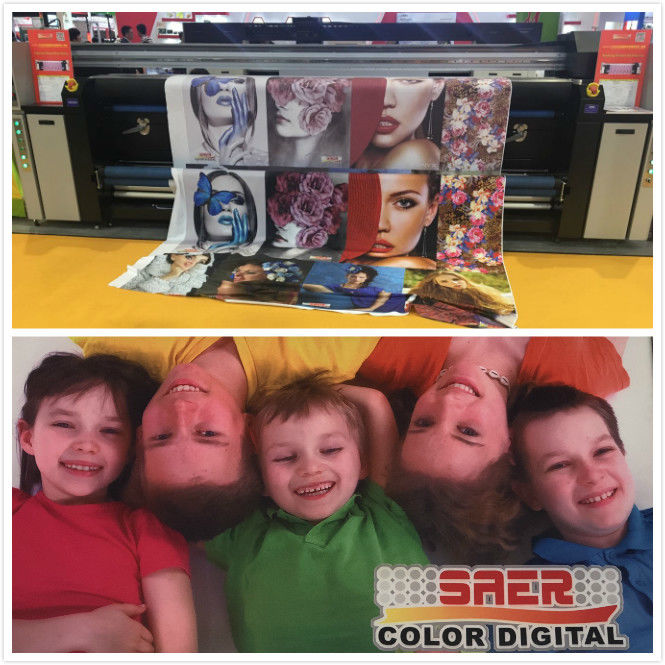

    TEXTILE FABRIC PRITER MACHINE INK DIRECTLY

     Advantage:



    This machine prints directly on fabric without heating transfer process. It can work continuously for 24 hours without corrugated.



    1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
    2.Adopt professional feeding system and fit to textile without tension. Stable feed
    resolution and stability material, make sure printing process
    3. No need platemaking and fit to flag and scroll
    4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
    5. Environmental smoke exhaust filter system to handle smoke efficiently and make clean work shop
    6. Use open ink supply system which is compatible to more brand sublimation ink



    Product Service and shipping method:



    With one year warranty and lifelong technical support.

    Offer Video and operation manual, and the professional technical staff online guidance.

    Guarantee prompt warranty service for main parts repairmen and replacement by international courier
    Digital Sublimation Ink Printer / Automatic Sublimation Printing Equipment 3



    IF YOU HAVE ANY QUESTIONS PLEASE CONTACT US WITH NO HESITATE!  THANK YOU !
