Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making

Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making

    • Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making
    • Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making
    • Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making
    • Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making
  • Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Digital Fabric Printing Machine Max Resolution: 1400DPI
    Type: Inkjet Printer Condition: New
    Print Head: Epson DX7*2 Color Model: Dual CMYK
    Ink Supply Model: Continuous Ink Supply Max Materials Width: 2300mm
    Rip Software: Maintop 5.3 Rip Software Compatible OS: Win XP&Win 7
    Net Weight: 646KG Wet Weight: 886KG
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    High Light:

    mimaki digital printing machine

    ,

    digital fabric printer



    Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making



    Specifications:



    Product parameter

    Model

    CSR2200

    Print head

    Piezo technology, Epson DX7 printer head

    Ink

    Sublimation ink,Reactive Ink,Pigment Ink

    Color model

    Dual  KCMY

    Nozzles

    (180 nozzles x 8 lines ) x2 heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2300mm

    Max printing width

    2200mm







    Printing resolution and speed

    Resolution                       speed

    720x360dpi (2pass)               40m²/h

    360x1080dpi(3pass)               32m²/h

    720x720dpi(4pass)                22m²/h

    720x1080dpi(6pass)               18 m²/h

    720x1440dpi(8pass)               12 m²/h

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 2.0

    RAM

    1.2M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net Weight : 7646kg                  Gross Weight : 886kg



    Description:



    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



    Advantages:

    • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
    • The printed image color is bright and vivid with nice color gamut.
    •  Rapid speed and various printer to choose
    •  It  is simple and leave out heat transfer process, one person can operates with high efficency and short time.
    •  Low cost and no need of any kind transfer paper, liner breaking the highest costs performance

    Application:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    Printing Samples:



    Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making 0

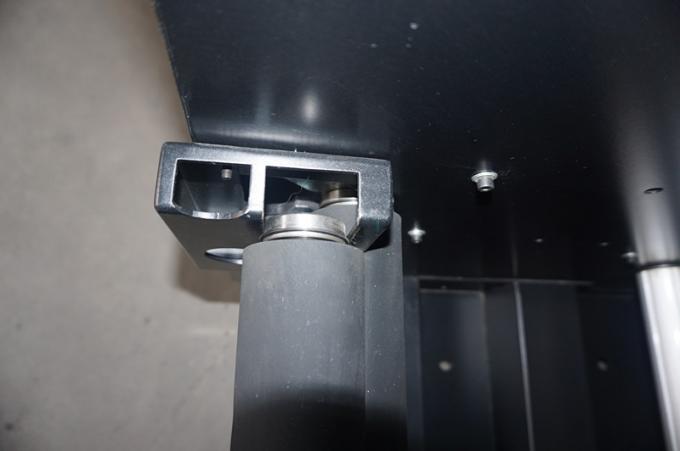

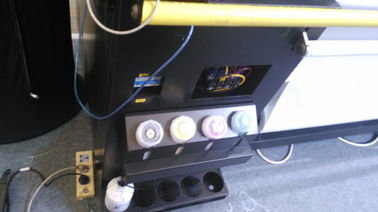

    Machine Details:



    Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making 1



    Double Dx7 Print Head Digital Fabric Printing Machine For Flag Making 2

    After Sales Service:



    1.  With one year warranty and lifelong technical support.

    2.  Offer Video and operation manul,and the professional technical staff online guidance.

    3.  Guarantee prompt warranty service for main parts repairment and replacement by international courier
