Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi

Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi

    • Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi
    • Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi
  • Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package
    Delivery Time: 12 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 30 Sets Per Month
    Contact Now
    Detailed Product Description
    Print Head3.2m DireProduct Namectly Fabric Printer: Epson High DIP Head *3 Size Of Panel: 3.2m
    Max Resolution: 1400DPI Type: Inkjet Printer
    Color Model: Dual CMYK Ink Supply Model: Continuous Ink Supply
    Max Materials Width: 3300mm Rip Software: ONYX
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    High Light:

    Curtain Fabric Epson Inkjet Printers

    ,

    Intelligent Epson Inkjet Printers

    ,

    360*1800dpi Epson Inkjet Printers

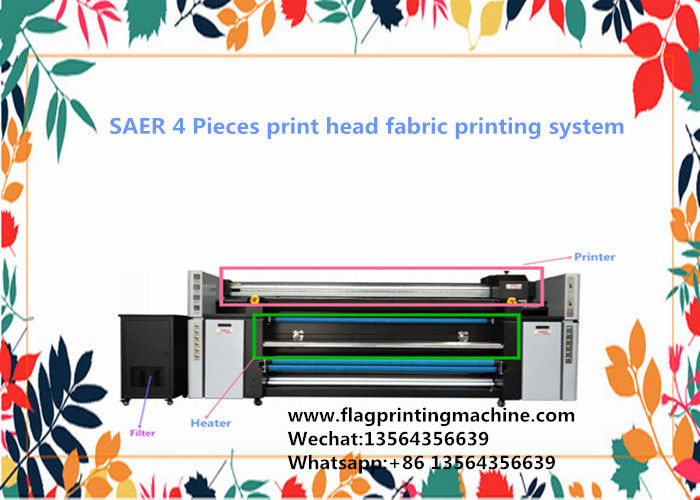

    Product name:  Digital Epson head printer for umbrella fabric / Curtain fabric printer





    Features:



    The Heater:



    1. Ceramic heating tube: Heating fast and well distributed

    2. Feeding and taking up inflatable roller.

    3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.

    4. Intelligent Temperature control system. (0°C----300°C adjustable)

    5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.





    Printer:



    1. 4 pieces Epson high resolution print head, with fast print speed, long lifespan, high precision.

    2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.

    3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.

    4. Refillable ink cartridge reduces production cost.



    Machine working speed :





    Printing resolution and speed

    360*1800dpi(3 pass) 80m2/h
    720*1220dpi(4 pass) 65m2/h
    720*1800dpi(8 pass) 45m2/h











    Specifications:





    Product Parameter
    Model type CSR3200
    Print head 4 pieces Epson hign resolution
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*4head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 3300mm
    Max printing width 320000mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)









    Description:



    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    7· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.





    Advantages:

    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    •  Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
    •  Working process is simple, one person can operates with high efficency and short time.
    •  Low cost, liner breaking the highest costs performance



    Application:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.



    Intelligent Curtain Fabric Epson Inkjet Printers 360*1800dpi 0





    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
