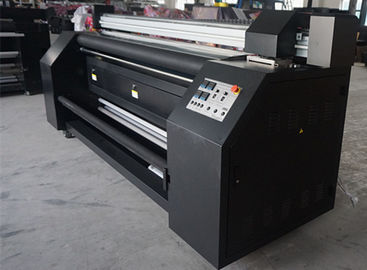

Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz

Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz

    • Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz
    • Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz
  • Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package (Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after the payment
    Payment Terms: T/T
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Usage: Fabric / Textile / Cloth Printer Rip Software: Onyx
    Color Management: Superior ICC Profile Printing Interface: Computer Control The Output Directly
    Media Handle: Automatic Feeder,automatic Take Up Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up
    Media Heating: Pre-heating & Post Color Fixation Ink Clor: Cyan,Magenta,Yellow,Black
    Power Supply: Automatic Lift Cleaningstructure Max Printing Resolution: 1440dpi
    Brand Name: SAER Heating System: Intelligent Embedded Heating System
    High Light:

    sublimation printing machine

    ,

    cmyk printing machine

    Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine


    Product Features:



    • Saer Textile Inkjet Printer:with high resolution,outdoor and indoor applied,designed especially for printing of textile,sublimation banner cloth etc.
    • This unit is double 4 color type outdoor and indoor printer,Adopts the Epson 5th Generation of piezo technology,two heads,each head has 1440 nozzles in 8 rows,long using life.
    • Using HIWIN mute guide rail.germany IGUS silent drag chain,make your printing environment more quiter.
    • Strong Media Feed-in system,for smooth printing on heavy materials,such as textile,sublimation banner cloth and so on.
    • X axis and Y axis are using AC serve motors


    1 Economical textile printer ideal for producing soft signage.
    2 Directly print on different type of fabrics.
    3 Standard 2.2m  wide, print up to 40m2/h for high-volume production.
    4 Double 4 colors ink ensure rich, vibrant colors.
    5 Rigid construction for durable performance
    6 Refillable ink cartridge reducing production cost.
    Print on: Flag cloth,polyester,canvas,oxford,the peach skin,satin,pattern-book



    Technology advantage:



    Can make doubleside flags, high-definition colourful banners cloth printing,personal pattern and so on.

    It can make small quantity, personal, many varieties printing,no quantity limit. Spray printing picture gorgeous and realistic, can feel colour levels strongly. Fabric will be colorful, good at penetration, no color difference in both side through our machine.



    Technical Details:



    Brand Name SAER
    Model CSR 2200
    Print head Piezo technology,Epson DX5 Heads * 2 PCS
    Color mode Double four color(C,M,Y,K)
    Head Cleaning Automatic and/or Manual
    Nozzles (180 nozzles x 8 lines ) x2 heads
    higher Of Printer head 1.5mm - 6mm ( Adjustable )
    Ink supply mode Continuous ink supply
    Maximum materials width 2400mm
    Maximum printing width 2200mm
    Roll diameter 3 Inch
    Maximum weight for roll material 100kg
    Interface USB 2.0
    RAM 128M
    Print Power AC100-120V./AC220-240V(Adaptive) 50/60Hz
    Power consumption Direct dye sublimation heater 3500W
    Printer 100w
    Temperature 20-32°C
    Humidity 40-60% Non-condensing
    Media type

    The sublimation of cloth:Polyester Scroll Fabrics, Silk Fabrics,

    Mirror Flag Fabrics, Thick Silk Fabrics, Matt Mesh Fabrics,

    Glossy Mesh Fabrics, Hole Fabrics, Taupaulin Fabrics

    Media Handle Automatic feeder,automatic take up
    Media Processing Roll to Roll + Auto Feeding + Auto Roll Up
    Media Heating Pre & Post Media Heating
    File Format

    TIFF,JPEG,and other common image formats

    Control software Chinese version and English Version

    Media Drying Infrared Drying
    Weight Net Weight : 764kg Gross Weight : 886kg
    Rip Software Onyx
    Working Process Windows XP / Windows 7/window 10



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.



    Technical superiority;



    1.Width optional: you can choose 2.2 meter or 3.2 meter.

    2.Enlarge picture design: can choose enlarge picture funtion, smooth and no wrinkles in continuous printing.

    3.High-precision printing: use original EPSON5 / EPSON7 generation print heads, pictures are more exquisite.

    4.Thermal energy color: when heavy machine continuously work, mechanical park is still stable, anti-wrinkle, adjustable speed, automatic synchronous Lstacking.



    Products can be made:



    Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz 0 Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz 1 Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz 2



    After Sales Service:





    1. Updated the shipping information as soon as possible.

    2. Ensure the Adaptor delivery on time.

    3. Documents will be send correctly and promptly.



    • One year warranty
    • Provide 24 hours online service.

      when you first time operate the machine,our engineer will be online to guide you how to operate machine.
      When your machine gets any problem, our engineer will help you to solve it through remote control.

    • If necessary,we can send you new spare part.


    Application:

    Home Decoration:Print on polyester fabric to make windows curtain and Table cloth,sheets and so on also can make Wall Stickers.
    Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on



    Large Format Roll To Roll Polyester / Cotton Fabric Printing Machine 50Hz / 60Hz 3
