Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth

Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth

    • Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth
    • Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth
  • Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 26,000 - 29,800 USD / set
    Packaging Details: Non fumigation wooden package(Package size 4460*1160*1730mm)
    Delivery Time: 10 working days after get your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 Sets / Month
    Contact Now
    Detailed Product Description
    Product Name: Direct Textile Epson Head Printe Application: Indoor Decoration & Outdoor Adertising
    Max Resolution: 1440 DPI Voltage: 380V,50/60HZ
    Gross Power: 5.5KW Print Head Type: Two Epson DX7 Print Head * 2 PCS
    Plate Type: Roll To Roll Printing Machine Rip Software: Maintop 5.3 Rip Software Or Onyx Optional
    Compatible OS: Win XP & Win 7 Printing Width: 3.2m
    Working Type: Connect Computer Print Media: Coated Fabric

    Outdoor Multicolor Digital Epson Head Printer For Wallpaper And Tablecloth



    Include:



    3.2m All-in-one Digital Textile Printer With Filter Fan


    Descriptions:



    Model CSR 3200
    Print head Piezo technology, Epson DX7
    Amount of head Two Pieces
    Color Mode Dual CMYK
    Nozzles 180 nozzles * 8 lines
    Print Head Height 1.5mm / 6mm(adjustable)
    Ink Supply Mode Continuous Ink Supply



    Max Printing Width 3200mm
    Roll Owter Diameter 3 Inch
    Max Weight For Roll Material 100KG
    Interface USB 2.0
    RAM 128M
    Printer Power 380V
    Power

    Direct Dye Sublimation Heater 3500W

    Printer 2000W

    Environment temperature 20-32 degree
    Weight 1120KG



    Printing Resolution And Speed:



    Resolution           DPI         Speed

    720*360dpi        2 pass     40m²/h

    360*1080dpi      3 pass     32m²/h

    720*720dpi        4 pass     22m²/h

    720*1080dpi      6 pass     18m²/h

    720*1440dpi      8 pass     12m²/h


    Advantages:


    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    • Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
    • Working process is simple, one person can operates with high efficency and short time.
    • Low cost, liner breaking the highest costs performance



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.


    Description:

    1. Double Epson DX7 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10.Low cost and no need any transfer paper.

    Applications:


    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.


    After Sales Service:

    1. One year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



    Printer Detail Pictures:

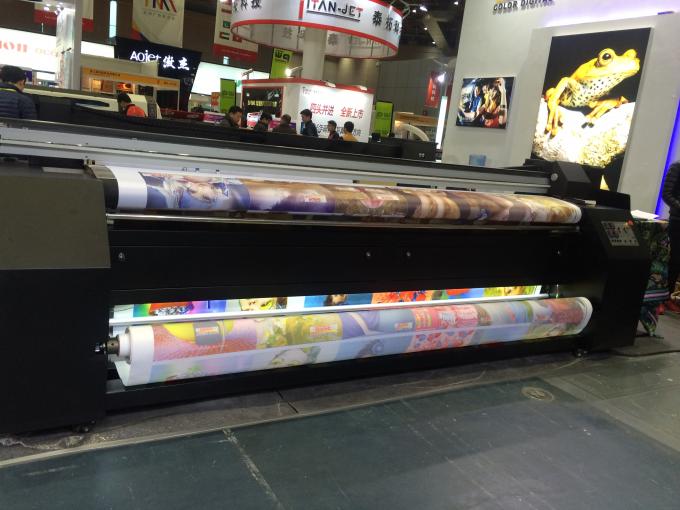

    Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth



    Epson DX7 Head Mute Guide Control Pannel
    Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth

    Multicolor Epson Head Printer Digital Textile Printer For Wallpaper And Tablecloth
