Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai Of China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | SR 3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm) |
| Delivery Time: | whithin 7 working days after get the payment |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per month |
| Machine Type: | Dye Sublimation Machine | Condition: | New |
|---|---|---|---|
| Color & Page: | Multicolor(Dual CMYK) | Dimensions(L*W*H): | 4350mm*1310mm*1230mm |
| Working Type: | Roll To Roll | Model: | SR 3200 |
| Power: | 6.5kw | Usage: | Heat Wet Ink On Fabric,fix Color |
| High Light: | dye sublimation equipment,sublimation heater |
||

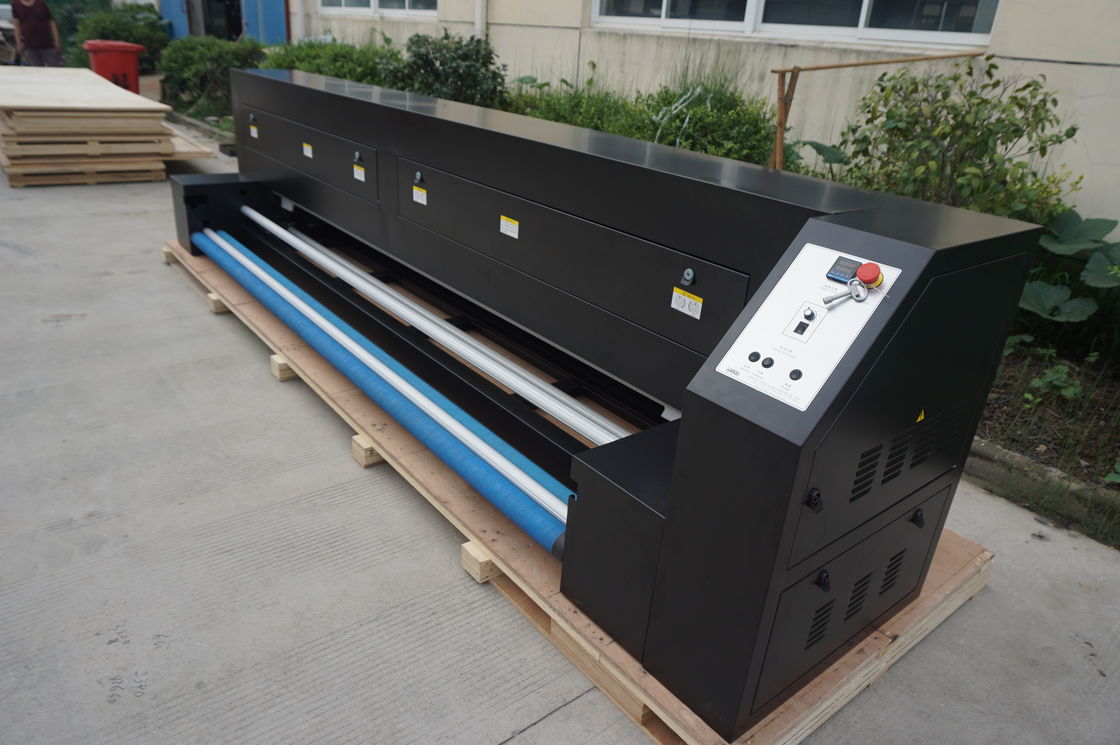

Multifunction Roller Dye Sublimation Machine For Textile High Speed
Introduction
Two Parts:
One Sublimation Textile Heater,high temperature to heat the wet ink and fix the color of fabric after printer printed.
The other is Filter Fan to collect wasted gas,protect the environment.
This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.
| Maximum Width | Heat Tube Dimension | Working Temperature Control | Maximum Speed | Working Voltage | Machine size | Net Weight |
| 3300mm | 3400mm | 0~250°C | 100m/hour | 220v 50hz | 4350mm*1310mm*1230mm | 625kg |
Products Features:
1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
2. Our machine have excellent heat insulation,can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tube have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..
8. Quick Tail Gas Treatment
9. Convenient to Maintain
Description:
|
Product Name |
Direct Dye Sublimation machine |
|
Model |
SR 3200 |
|
Blackbody Tube Working Model |
Far Infrared |
|
Mainly Use |
Appear and fix the color |
|
Power |
6.5kw(include filter fan) |
|
Temperature Control Method |
PID |
|
Tension Control |
3kg(optional counterweight to control tension) |
|
Filter Fan Speed |
0~300m³/h |
|
Filter Fan Power |
400W |
|
Gross Weight |
1025kg(Include filter and package) |
|
Operating mode |
Instrument control, manual, automatic opera |
Advantage:
1. Exhaust without any smell, good environment need.
2. Normal tempreture for exhaust, no dangerous for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less than 25 Degree
Specification:
a. Low cost
b. High productivity
c. Working together with any piezo printers.
d. Directly heating on textile with high temperature.
e. Good after sales service.
Application:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
Machine Details:
Heated Samples:
Service:
1) Before place order:
We provide a suitable project according to your environment and production capacity.
2) Installation training service:
We dispatch technician to your factory for installation ,testing and training.
3) Quality Guarantee:
The whole set of machine guarantee is 1 year.
