Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer

Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer

    • Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer
    • Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer
  • Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non Fumigation Wooden Package(4460*1160*1730mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T or Western Union
    Supply Ability: 20 sets / month
    Contact Now
    Detailed Product Description
    Ink: Sublimation,Reactive,Pigment Ink Application: Indoor & Outdoor Advertising Field
    Color & Page: Multicolor Color Mode: Dual CMYK
    Voltage: 380V Rip Software: ONYX
    Compatible OS: Windows XP & Windows 7 Include: One 3.2m All-in-one Printing System And One Filter
    Material: Polyster,Cotton,Silk And Wool Fabric Gross Power: 6500W
    High Light:

    Flag Continuous Inkjet Printer

    ,

    6500W Continuous Inkjet Printer

    ,

    Dual CMYK Continuous Inkjet Printer

    Product name : Factory price Voltage 380V Continuous Inkjet Printer Flag Printing System 6500W Gross Power



    Specification:



    Product parameter
    Product name Sulimation textile printing system
    Model CSR3200
    Include One set of whole machine and one filter
    Ink model Sublimation ink
    Available color Dual CMYK
    Print head Piezo technology,3 Epson 4720 print head
    Max material width 3300mm
    Max printing width 3200mm
    Print head high control 1.5mm/1.6mm(adjustable)
    Printing resolution and speed Resolution(DPI) Speed
    360*1800dpi(3 pass) 65m2/h
    720*120dpi(4 pass) 45m2/h
    720*1800dpi(6 pass) 35m2/h
    Media type Polyester
    Ink feeding system 4 color mode:400cc cartriage*2color 800cc/color
    Roll outer diameter 3 inch
    Max weight for roll material 100kg
    Head cleaning Automatic/Manual
    RAM 128M
    Printer power AC380V(Adaptive) 50/60Hz±1Hz
    Heater power consuption 3500KW
    Printer power consuption 7.5KW
    Weight 890KG
    Operation environment 20-23oC Humidity:40-60% (non-condensing)



    Filter Specification:



    Power 550w
    Package size 60*55*108CM(0.382CBM)
    Net Weight 64kg
    Gross Weight 80kg
    Working Voltage 220-240V 50HZ
    Input Air Temperature ﹥200℃
    Out Air Temperature ﹤25℃








    Features:





    Printer:



    1. Double Epson DX7 print head, with fast print speed, long lifespan, high precision.

    2. Printing groove designed specially for fabric printing to collect waste ink and keep fabric clean.

    3. HIWIN mute guide rail,Germany IGUS silent drag chain,make the printing environment more quieter.

    4. Refillable ink cartridge reduces production cost.



    Heater:



    1. Ceramic heating tube: Heating fast and well distributed

    2.Feeding and taking up inflatable roller.

    3. Front and back stainless steel oscillating axles make the fabric feeding smoothly without drape.

    4. Intelligent Temperature control system. (0°C----300°C adjustable)

    5. Discharge slot design helps to keep the heating tube clean and easy to wipe off the oil and dust.



    Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer 0



    Filter:



    1.  Exhaust pipes fully discharge the smoke from the tube.

    2.  Carbon can be inputted easily, it makes the environment odorless and smokeless.

    3.  Discharge slot is easily to clean.



    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag,roll up banner, act fast show and so on.

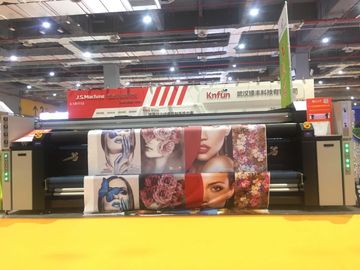

    Piezo Dual CMYK 6500W Flag Continuous Inkjet Printer 1



    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manual, and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
