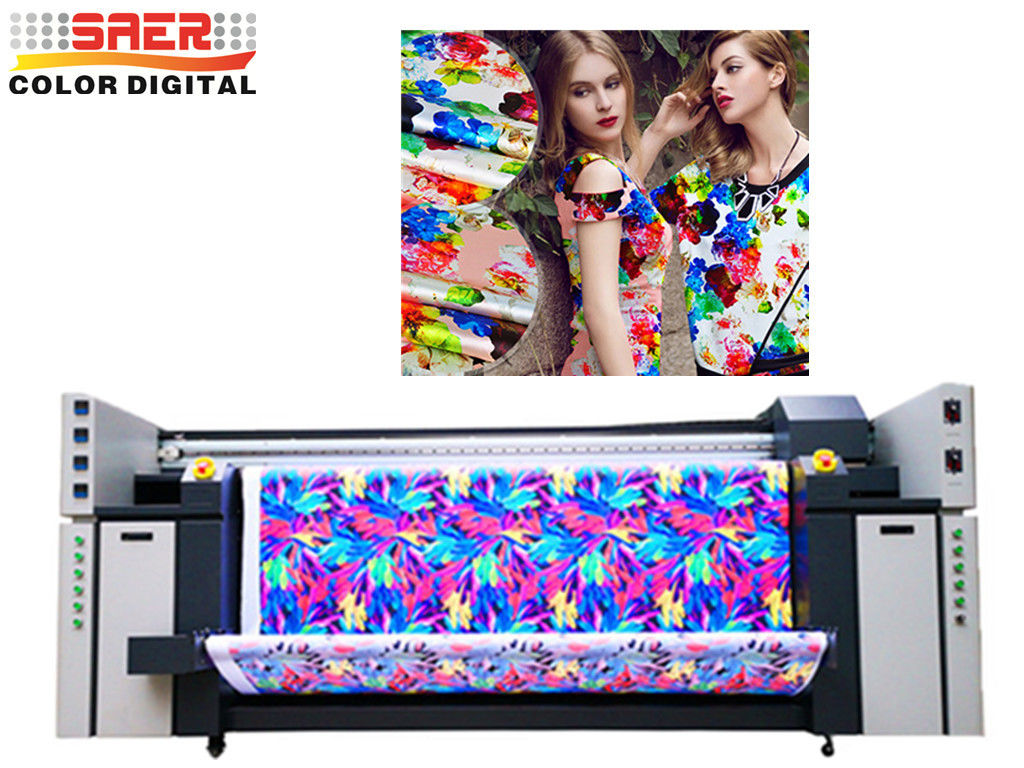

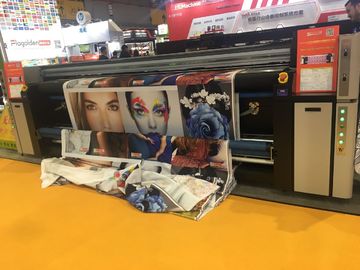

Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter

Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter

    • Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter
    • Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter
  • Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package
    Delivery Time: 14 days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Type: Inkjet Printer Condition: New
    Plate Type: Roll To Roll Color & Page: Multicolor
    Usage: Fabric Printing Automatic Grade: Automatic
    High Light:

    Flag Fabric Plotter


    Digital Piezo Fabric Plotter


    3.2m Fabric Plotter



    Product name: Digital Piezo Flag Printer / Sublimation Textile Printing Machine



    Specification :


    Model CSR 3200
    Print head Piezo technology, Epson 4720
    Amount of head Three Pieces
    Color Mode Cyan,Magenta,Yellow,Black
    Print Head Height 1.5mm / 6mm(adjustable)
    Ink Supply Mode Continuous Ink Supply


    Max Printing Width 3200mm
    Roll Owter Diameter 3 Inch
    Max Weight For Roll Material 100KG
    Interface USB 3.0
    RAM 128M
    Printer Power 210-230V

    Direct Dye Sublimation Heater 3500W

    Printer 2000W

    Environment temperature 20-32 degree
    Weight 1120KG



    Printing Resolution And Speed:

    Resolution(DPI) Speed

    360*1800dpi(3 pass) 65m²/h
    720*1200dpi(4 pass) 45m²/h
    720*1800dpi(6 pass) 35m²/h




    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable
    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    8· Easy to Set up and Operate

    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.



    • Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
    • The printed image color is bright and vivid with nice color gamut.
    • Rapid speed and various printer to choose
    • It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
    • Low cost and no need of any kind transfer paper, liner breaking the highest costs performance




    Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show,feather flag and so on.


    Roll To Roll 3.2m Digital Piezo Flag Fabric Plotter 0





    After Sales Service:


    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
