Shanghai Color Digital Supplier Co., Ltd.

Shanghai Color Digital Supplier Co., Ltd.

Professional Digital Textile Printing Equipment & Relevant Materials General Supplier

Home ProductsDigital Textile Printing Machine

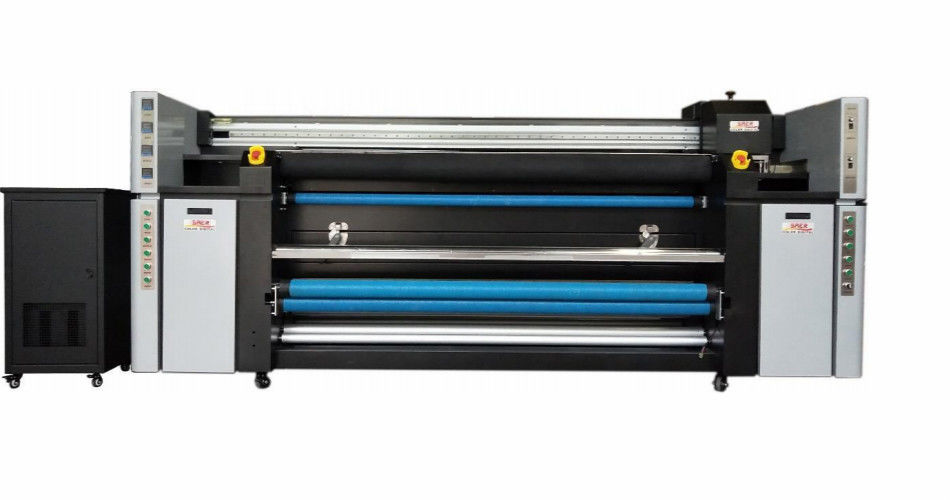

Roll To Roll 3.2m Direct Dye Digital Textile Printer

Roll To Roll 3.2m Direct Dye Digital Textile Printer

Roll To Roll 3.2m Direct Dye Digital Textile Printer

Product Details:

Place of Origin: Shanghai of China
Brand Name: SAER
Certification: CE Certification
Model Number: CSR 3200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm)
Delivery Time: whithin 7 working days after get the payment
Payment Terms: T/T, Western Union
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Plate Type: Color Fixing Machine Automatic Grade: Automatic
Condition: New Color & Page: Multicolor(Dual CMYK)
Dimensions(L*W*H): 4350mm*1310mm*1230mm Working Width: 3.2m
Working Type: Roll To Roll Printing Material: Polyester, Cotton
Printhead: 3 Pcs Epson Head Resolution: 1800DPI
Ink Type: Sublimation Ink Color: 4 Colors (CMYK)
Product Name: Textile Sublimation Printer,fabric Printing Machine
High Light:

3.2m Digital Textile Printer

,

1800DPI Digital Textile Printer

,

Sublimation Ink Digital Textile Printer

3.2m Direct Dye Printing Flag Digital Printers Factory Printer For Fabric Color Print

Specifications:



Product name Economic CSR2200 Sublimation Machine
Item No. CSR 2200
Printhead EPSON
Number of Printhead Three
Print Resolution 1800dpi
ink sublimation ink/pigment ink.
Maximum Print Width 2000mm
Print Speed 3 pass 360x1800DPI 65m²/h
4 pass 720X1200DPI 45m²/h
6 pass 720x1800DPI 35m²/h
Printer Head height Adjustable 1.5~6mm
Ink Type Sublimation Ink, pigment ink
Color dual CMYK
Ink Supply System Continuous Ink Supply System
Media Maximum Width 2000mm
Feeding mode Automatic feeding and taken-up system
weight Sublimation machine net weight 800kg, gross weight 1000kg
power consumption sublimation heater Directly dye sublimation heater 3500w
printer printer 1000w
printer power AC210-230v 50-60HZ 16A
temperature 25-35°C
humidity 35-65%(non-condensing)



Application:

Our sublimation machine is CE certificated. And our sublimation  printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.
Roll To Roll 3.2m Direct Dye Digital Textile Printer 0

Advantage:
·Far Infrared Blackbody Tube Radiation
1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable

6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate

9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.

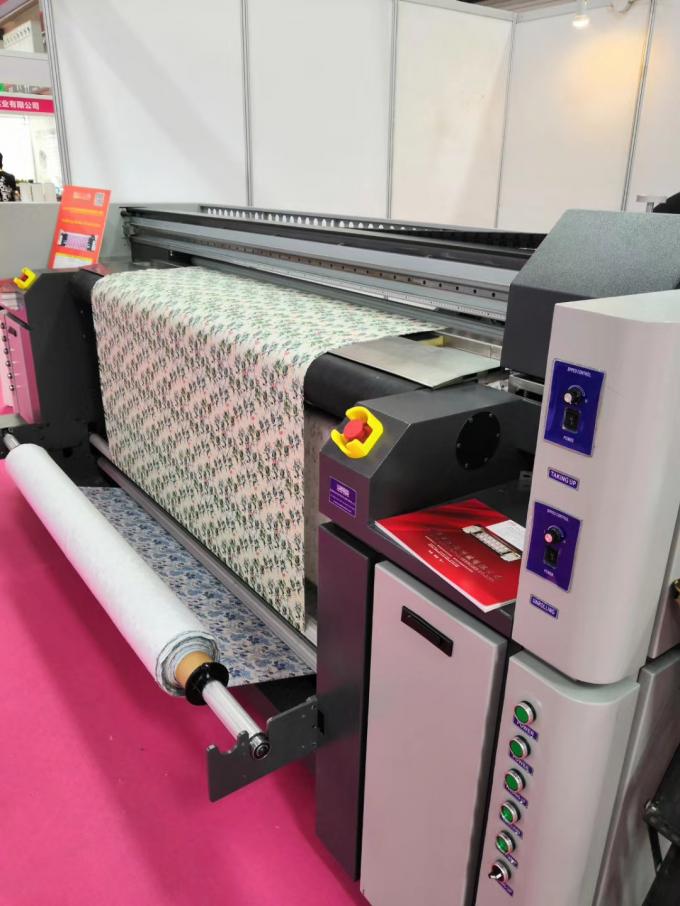

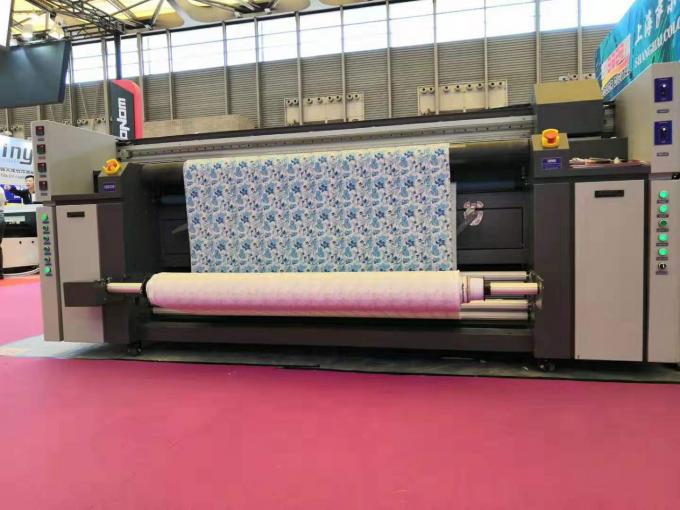

Machine Details:
Roll To Roll 3.2m Direct Dye Digital Textile Printer 1
Roll To Roll 3.2m Direct Dye Digital Textile Printer 2

Roll To Roll 3.2m Direct Dye Digital Textile Printer 3

Samples Print:

Roll To Roll 3.2m Direct Dye Digital Textile Printer 4

 With CE Certificate Provide
 After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courie
