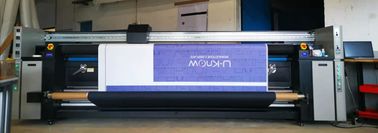

Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head

Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head

    • Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head
    • Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head
  • Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Color & Page: Multicolor Certification: CE
    Printing Solution: 1440dpi Automatic Grade: Automatic
    Voltage: 110V/220V Place Of Origin: Shanghai,China
    Brand: SAER
    High Light:

    mimaki digital printing machine

    ,

    digital fabric printer

    ,

    continuous inkjet printer



    Product name:  Roll to roll high quality texile printing system / Digital fabric plotter with Epson 4720 head







    Machine Quick Details: Our CSR3200 includes one printer, one heater (printer and heater are whole one set), one filter







    Parameters:



                                                    Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson 4720
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 2300mm
    Max printing width 2200mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)















    Automatic feeding and collecting structure:




    1,Intelligent infrared heater and fan drying system;
    2,The machine through different quality tests is stable and competent enough for mass production requirement.
    3,No Pinch roller, let the fabric no wrinkle and print smoothly

    4,Keep the fabric good air permeability after sublimation

    5,Printing groove designed specially for fabric printing to collect waste ink and keep

    fabric clean.

    6,Patented ink tanks keep ink supply constantly.









    Printing Speed:







    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h










    Description:





    1.Three pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

    5. Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly







    Applications:





    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.









    Service:



    1) Customized Service:We Can Provide Customized Production and Packing for You!



    2) Print Service:



    We Also Provide FREE Printing Samples for You!



    3) Training Service:

    We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!



    4) Guarantee Service:

    We Provide Lifetime Warranty for All MT Industry Machine Models!



    5) Solution Service:

    The Most Important We Have Digital Printing Solution Ability

    We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! Some of Them are Very Famous Printing Company











    How To Order:



    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery









    Application:





    Roll To Roll Digital Textile Printing Machine CSR3200 With Epson 4720 Head 0
