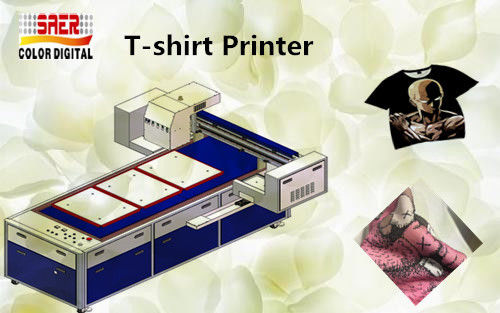

Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads

Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads

Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads

Product Details:

Place of Origin: Made in China
Brand Name: SARE
Certification: CE certificate
Model Number: CSR2200(R)

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden packages or Standard export seaworthy packing
Delivery Time: 10 work days after received full amount of you order
Payment Terms: T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Print Head: With 8 Ricoh GH2220 Head Printing Size: 600*1200mm
Ink Type: Import Pigment Ink Color: CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
Plate Type: Flatbed Printer, Digital Printing, Automatic Grade: Automatic,Manual
Certification: CE Certification Condition: New
Voltage: 210-230VAC 50/60 HZ 16A Dimensions(l*w*h): 2065*1705*1240mm
Weight: 260kg After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

t shirt screen printing machine

,

garment printing machine


Product nameHot sale digital T-shirt printer with 8 Ricoh GH2220 print heads good quality



Parameters:



ItemsTechnical Parameters
ModelCSR2200(R)

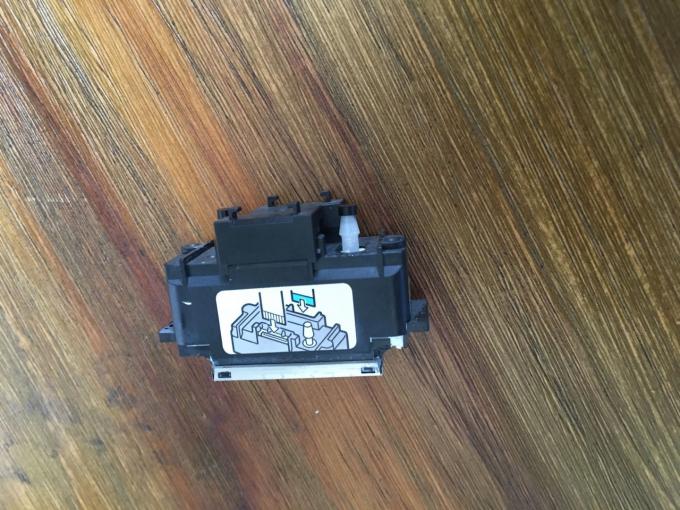

Print headPrint headRicoh GH2220 head
QTY8 pieces
InkColorCMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
Ink typeImport pigment ink, good fastness,bright color

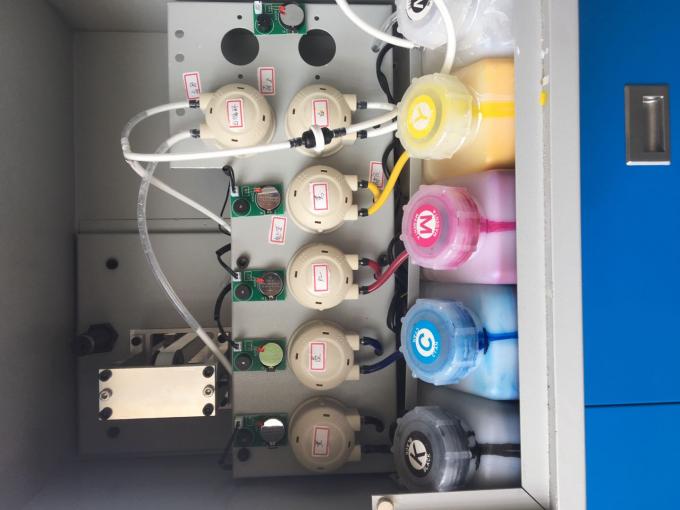

Ink supplyNegative pressure supply ink
SpeedProduction modelsA3 size 4passDark color fabric 1min.14s
Light color fabric 58s
precisionA3 size 6passDark color fabric 1min.52s
Light color fabric 1min.27s
TrayStandard configurationOptional configuration
Tray size380*480mm600*1200mm
Tray Numbers31
InterfaceUSB
Computer systemCPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
Working environmenttemperature:20℃-30℃, humidity:55%-70%
Power supply210-230VAC 50/60 HZ 16A
SoftwareRip software
Machine Dimension2065*1705*1240mm
Machine Weight260kg



Details:

 Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads 0


           Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads 1






Application:

Stable High Efficiency T Shirt Printing Machine With 8 Ricoh GH2220 Print Heads 2



Advantages:


1.Lowe printing cost, greatly reduce the printing cost of the product.
2.High speed, simple to operate, no personnel reliance.
3.Using Ricoh print head, high precision, natural color
4.Batch production conveniently for processing.
5.No limit on material.
6.Cycle output of white ink to avoid the clog of print head.
7. Double guide rails to keep stable of machine.
8.After-sales service guarantee: professional research and development and after-sales service.


FAQ :

1.What material can I use for printing?

It can print on many kinds of fabric,such as cotton,linen,polyester,leather and so on.

2.What ink do you have?

We supply import textile ink.Order ink and printer together can get more discount.

3. Do materials require pretreatment spray application?

Only dark colored materials must be pre-treated in order to achieve best printing results.


4. How do I use the printer?

The software needed to use the printer is included with any model. We also include a manual and training video to assist with learning how to use the printer. We are also available by phone or email to answer any questions you may have.

5. How much ink does one t shirt use?

Ink usage widely varies depending on resolution settings, size of graphic and colors used. We find, on average, that one square meter uses 10-12ml of ink.

6. Are replacement parts available?

We offer all replacement parts for your printer with quick delivery to ensure your print has very little downtime. We offer 24h technical assistance for troubleshooting and repair.
