Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR2200(R) |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | non fumigation wood package |
| Delivery Time: | usually one week after payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 per month |
| Condition: | New | Weight: | 260kg |
|---|---|---|---|
| Automatic Grade: | Automatic | Ink Type: | Pigment |
| Type: | Digital Printer,Inkjet Printer,T Shirt Flatbed Printered | Warranty: | 1 Year |
| Plate Type: | Flatbed Printer,Textile Printer | Tray Number: | Three |
| Printing Material: | Cloth,above 80% Cotton (Recommend) | ||
| High Light: | t shirt screen printing machine,garment printing machine |
||
| Items | Technical Parameters | ||

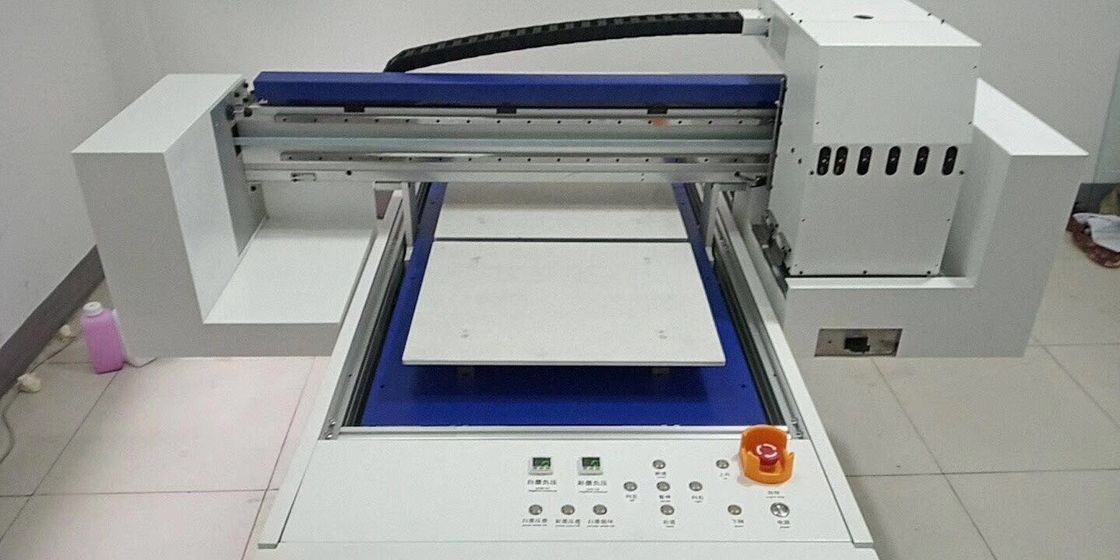

| Model | CSR2200(R) | ||
| Print head | Print head | Ricoh GH2220 head | |
| QTY | 8 | ||
| Ink | Color | CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW | |
| Ink type | Import pigment ink, good fastness,bright color | ||
| Ink supply | Negative pressure supply ink | ||
| Speed | Production | A3 size 4pass | Dark fabric 1min14s |
| Light fabric 58s | |||
| precision | A3 size 6pass | Dark fabric 1min52s | |
| Light fabric 1min27s | |||
| Tray | Standard configulation | Optional configulation | |
| Tray size | 380*480mm | 600*1200mm | |
| Tray Numbers | 3 | 1 | |
| Interface | USB | ||
| Computer system | CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10 | ||
| Working environment | temperature:20℃-30℃, humidity:55％-70％ | ||
| Power supply | 210-230VAC 50/60 HZ 16A | ||
| Software | Rip software | ||
| Machine Dimension | 2065*1705*1240mm | ||
| Machine Weight | 260kg | ||
Our Sublimation System includes one brand new printer and one sublimation heater machine, directly print to the sublimation textile with sublimation ink, and then through our sublimation system to appear and fix the color ,after this the process printed pictures become very bright . No need any sublimation paper more !
The printed textile can work inside and out side , and suitable to wash , no fading for the pictures.,
It can reduce normal sublimation process , save costs and time , give you more efficiency! Our Sublimation system available a few width , we can based customer request to produce different size as you want.
