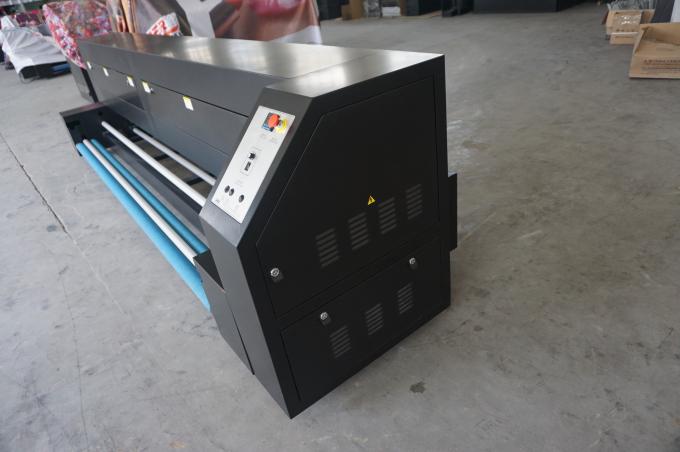

Fabric Fixation Dye Sublimation Machine Large Format For Direct Textile Printing Machine

Verified Supplier

China

Detailed Product Description
Plate Type: Roll To Roll / Cloth Inserted Voltage: 220-240AC 50HZ
Usage: Fix And Bright Color Of Printed Fabric United With: Any Piezo Printers
Machine Type: Dye Sublimation Machine Heaters: Heating Box
Automatic Grade: Automatic Working Width: 320cm
High Light:

dye sublimation equipment

,

sublimation heater

Fabric Fixation Dye Sublimation Machine Large Format  For Direct Textile Printing Machine





Product Feature :



1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.

2. Intelligent PID temperature control.

3. Digital tension control.

4. Feeding and taking up are synchronous.

5. Vacuum fan delivery is controllable.

6. Quick tail gas treatment.

7. Convenient to maintain.

8. Easy to set up and operate.

9. Easy to load the media in and out the oven during your machine working.

10. Easy to open the caver to clean the oven inside.

11. Easy to change the active carbon from the filter.

12. Perfect heat insulation,can touch our machine without danger of scald.

13. Our machine have excellent heat insulation,can save more power for you.

14. Adopting the most advanced thermal energy technology low power consumption,saves electricity and conserve energy costs.



Specifications:



Product Name

Direct Dye Sublimation machine

Model

SR 3200

Blackbody Tube Working Model

Far Infrared

Mainly Use

Appear and fix the color

Power

6.5kw(include filter fan)

Maximum Width

3300mm

Heat Tube Dimension

3400mm

Working Temperature Control

Room temperature~250°C

Temperature Control Method

PID

Tension Control

3kg(optional counterweight to control tension)

Maximum Speed

0~2800mm/min

Filter Fan Speed

0~300m³/h

Filter Fan Power

400W

Working Voltage

220v 50hz

Machine size

4350mm*1310mm*1230mm(not include filter

Net Weight

625kg(not include filter)



Product Advantages



1. Exhaust with out any smell, good environment need.
2. Normal temperture for exhaust , no dangerouse for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree .
4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure that the emission of harmful gases.


Fabric Fixation Dye Sublimation Machine Large Format  For Direct Textile Printing Machine 0



Fabric Fixation Dye Sublimation Machine Large Format  For Direct Textile Printing Machine 1

Fabric Fixation Dye Sublimation Machine Large Format  For Direct Textile Printing Machine 2





Filter Fans Specificaton:



Power 360W
Working Voltage 220~240V 50HZ
Package Size 620X565X1100mm
Weight 60 Kg
Input Air temperature >200 ℃
Out put Air temperature <25 ℃
Filter Medium Active Carbon
Certification CE Certificated



Usage:

To Produce Flags, Color Banner, cloth printing etc
LOW COST
IT IS SIMPLE AND LEAVE OUT HEAT TRANSFER PROCESS ONE PERSON CAN OPERATES WITH HIGH EFFICENCY AND SHORT TIME
LOW COST AND NO NEED OF ANY KIND TRANSFER PAPER ,LINER BEAKING THE HIGHEST COSTS PERFORMANCE



After Sales Service:


1. With one year warranty and lifelong technical support.

2. Offer Video and operation manual, and the professional technical staff online guidance.

3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
