Digital Printer Custom Industrial Oven High Temperature For Fabric Heat

Digital Printer Custom Industrial Oven High Temperature For Fabric Heat

Large Image :  Digital Printer Custom Industrial Oven High Temperature For Fabric Heat

Verified Supplier

Shanghai of China

Verified Supplier

Shanghai of China

Detailed Product Description
Plate Type: Color Fixing Heater Machine Automatic Grade: Automatic
Condition: New Color & Page: Multicolor(Dual CMYK)
Dimensions(L*W*H): 4350mm*1310mm*1230mm Working Width: 3.2m
Working Type: Roll To Roll Available Printer To Unit: Mimaki Mutoh And Roland Etc
Working Power: 2000W First Power: 6000W

Digital Sulimation Printer Oven With High Temperature For Fabric Heat



Products Features:


1. Far infrared blackbody tube radiation electro thermal heating,can work at least 10000 hours.
2. Excellent heat insulation,can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tube have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..
8. Quick Tail Gas Treatment
9. Convenient to Maintain


Specifications:


Product Name

Direct Dye Sublimation machine

Model

SR 3200

Blackbody Tube Working Model

Far Infrared

Mainly Use

Appear and fix the color

Power

6.5kw(include filter fan)

Maximum Width

3300mm

Heat Tube Dimension

3400mm

Working Temperature Control

Room temperature ~250°C

Temperature Control Method

PID

Tension Control

3kg(optional counterweight to control tension)

Maximum Speed

0~2800mm/min

Filter Fan Speed

0~300m³/h

Filter Fan Power

400W

Working Voltage

220v 50hz

Machine size

4350mm*1310mm*1230mm(not include filter

Net Weight

625kg(not include filter)

Gross Weight

1025kg(Include filter and package)

Operating mode

Instrument control, manual, automatic opera


Advantage:

·Far Infrared Blackbody Tube Radiation

1· Electro thermal Heating
2· Intelligent PID Temperature Control
3· Digital Tension Control
4· Feeding and Taking up Are synchronous
5· Vacuum Fan Delivery Is Controllable


6· Quick Tail Gas Treatment
7· Convenient to Maintain
8· Easy to Set up and Operate


9. Easy to load the media in and out oven during your machine working
10. Easy to open the caver to clean inside of oven
11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.

12. Easy to change the active carbon from the filter
13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.


Application:

Our sublimation machine is CE certificated. Has been used most fields such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

Machine Details:

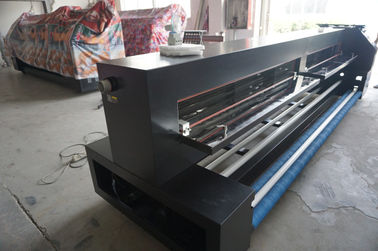

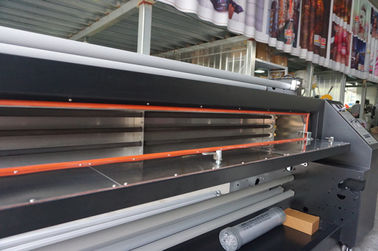

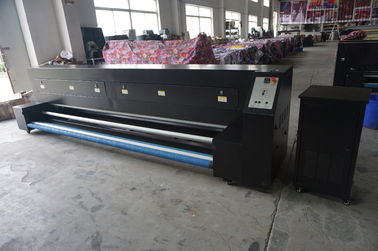

Digital Printer Custom Industrial Oven High Temperature For Fabric Heat

Heated Sample:

Digital Printer Custom Industrial Oven High Temperature For Fabric Heat

 After Sales Service:

1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
