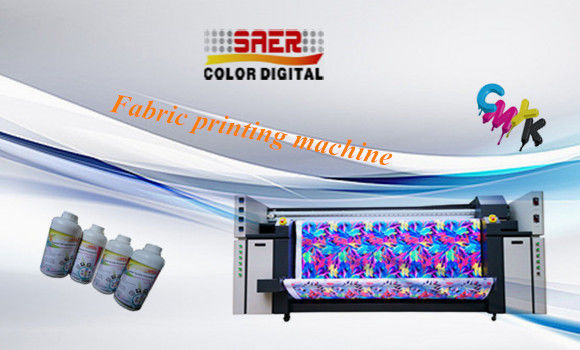

3.5kw Heater Power Fabric Plotter / Cotton Fabric Printing Machine Large Format Size

3.5kw Heater Power Fabric Plotter / Cotton Fabric Printing Machine Large Format Size

    • 3.5kw Heater Power Fabric Plotter / Cotton Fabric Printing Machine Large Format Size
    • 3.5kw Heater Power Fabric Plotter / Cotton Fabric Printing Machine Large Format Size
  • 3.5kw Heater Power Fabric Plotter / Cotton Fabric Printing Machine Large Format Size

    Product Details:

    Place of Origin: Shanghai, China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: 10 work days
    Payment Terms: T/T, Western Union
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Warranty: 1 Year Ink Type: Pigment Ink , Sublimation Ink
    Software: Onyx Heater Power: 3.5kw
    Automatic Grade: Automatic Type: Digital Printer



    Product name:  SAER directly Large Format Size Fabric Plotter / Cotton Fabric Printing Machine

    Our Support:

    (1) 12-month warranty

    (2) Free techinical traning

    (3) On-site service

    (4) Sample free

    (5) Lifetime maintenace



    Machine working Speed:





    Printing resolution and speed



    Resolution(dpi) speed
    360*1800dpi(3 pass) 65m2/h

    720*1220dpi(4 pass) 45m2/h

    720*1800dpi(6 pass) 35m2/h






    Specifications:



    Product Parameter
    Model type CSR3200
    Print head 3 pieces Epson 4720
    Ink Sublimation ink, pigment ink
    Number of nozzles (400 nozzles*8lines)*3head
    Color Dual CMYK
    Print head high 1.5mm/6mm (adjustable)
    Ink supply mode Continuous ink supply
    Max materials width 3300mm
    Max printing width 320000mm
    Roll outer diameter 3 inch
    Maximum weight for roll material 100kg
    Interface USB2.0
    RAM 128M
    Printer Power AC100-120V/AC220-240V(adjustive) 50/60HZ
    Power Heater 3.5kw
    Printer 100w
    Temperature 30-32℃
    Humidity 40-60%(Non-condensing)





    Description:



    1.3 pieces Epson 4720 Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy.

    2. Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit

    3.X axis and Y axis are using AC servo motors.

    4.Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.

    5.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.

    6. The unique print platform design to make the cloth always smooth in the process of printing.

    7. Unique filtering lampblack system, make the picture very clean.

    8. Taking up and feeding roller are inflatable roller.

    9. Taking up and feeding fabric are smoothly





    Below are our services terms:



    1. Every printer will come with English user manual. The user manual guide well how to install the machine, and how to maintain machine in very details.

    2. Our engineer full of experience, and they are English speaking, not need to worry about the communication, you can talk with engineer directly, solve your problem high efficiency.

    3. You are always welcome to trip to China, welcome to feel us, if you visit china, our company very please to offer a free training of printers.

    4. We also can send our engineer come to serve, customers need to pay engineer’s tickets, foods, hotel, and printer install or repair charges.





    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.
