Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai, China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR1800E |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Non-fumugation wooden box |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Plate Type: | Hybrid Printer | Ink Type: | UV Ink |
|---|---|---|---|
| Printing Size: | 1800mm | Condition: | New |
| Automatic Grade: | Automatic | Color & Page: | Multicolor |
| Warranty: | 1 Year | Ink: | CMYK+W+V |
| Application: | Acrylic,leather,UV Film,etc. | Port: | Any China Port |
| Packaging Details: | Export Wooden Case, Cartons | ||
| Highlight: | 6 feet digital UV plotter,flatbed roll to roll UV plotter,Maintop roll to roll UV plotter |
||

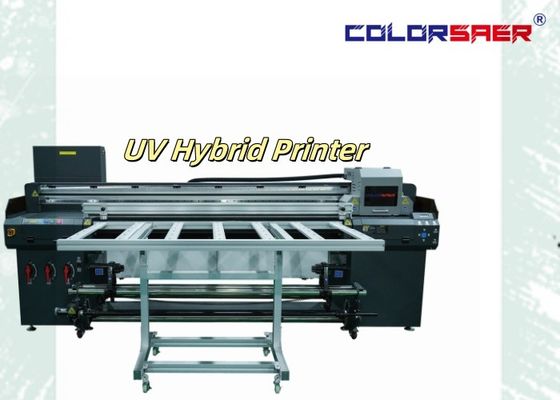

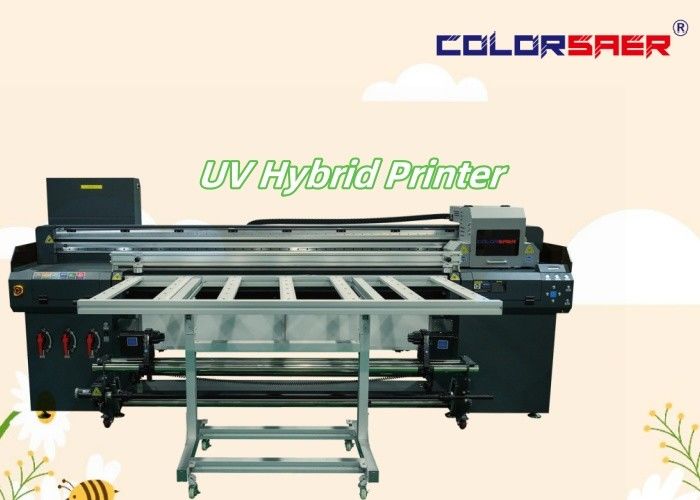

Product name: SAER 6 feet digital UV plotter flatbed & roll to roll UV hybrid printing machine with Maintop or ONYX software
Print head optinal: Max 4 pcs Epson i3200 print head, meet the vavious print, subject to actnal order
UV belt convey hybrid printer : in industrial grade which meets customers' production demand for ultra materials in large quantities
Machine working speed:
Printing Speed |
4pass(720x1200dpi):15sqm/h |
| 6pass(720x1800dpi):9sqm/h | |
| 8pass(720x2400dpi):6sqm/h |
Machine specification:
| Model | CSR1800E |
| Print Head | EPSON i3200U1 |
| Printing Technology | Piezoelectric Inkjet |
| Acceptable Media Width | 1800mm |
| Acceptable Media Thickness | Maximum 30mm |
| Acceptable Media Weight | 200kg |
| Printing Width | 1800mm |
| Ink Cartridges Type | UV Curing Ink |
| Ink Cartridges Capacity | 1500ml |
| Ink Cartridges Color | 4colors /White/varnish (CMYKWV) |
| Printing Resolution | Maximum 2400 dpi |
| Platform Vacuum | Turbo fan |
| Interface | USB3.0 |
| Power Supply | AC 220V,50/60HZ System Power Maximum 4600w |
| Media | Glass PMMA Metal Paper Wood Leather PVC PP PE, etc. |
| Drying System | LED Lamp |
| Operation System | Windows10 64Bit RAM≥8G SSD≥500G CPU≥INTEI5 |
| RIP Software | MainTop6.1 / Onyx |
| Working Environment | Temperrature:15-30℃ Relative Humidity:40-65% |
| Printer Size(L*W*H) | 3330*1320*1615mm |
| Printer Packing(L*W*H) | 3900*1000*1450 mm |
| Weight (N.W.) | 620KG |
| Weight (G.W.) | 800KG |
Machine features: Small and exquisite, more business opportunites
1.White Ink Stirring Function
The white ink automatic stirring and precipition prevention system can prevent the white ink from precipitatin and effectively prevent the white ink from precipitating and blocking the nozzle
2.Low power design
The design of low power consumption saves more processing costs for customers, and also achieves the purpose of energy saving and emission reduction
3.Liquid level alarm system
Automatically detect ink level status and remind to repenish ink in time , convenient and user-friendly design.
4.External motion system control
The extenal motion control can be used to prepare the printing work in advance, which is easy to operate and saves work time.
5.Ink tempreture control system
Automatic heating system can make the ink to be in the best situation at a constant tempreture, so obtaining the best print quality
6.Water-cooled high energy LED-UV curing
Convex spotlight makes stronger light to cure ink, and efficient water-recycling ensure it works longer time
Machine details:
1. Well-designed machine structure, excellent for printing of both roll material, and regular rigid material.
2.Equipped with Epson latest industrial level i3200-U1 printheads, powered by advanced PrecisionCore technology, guarantee the high resolution, high efficiency and high stability production.
3.Advanced inflatable roller are applied to the media feeding and take-up system, perfectly meet the requirement of high precision printing of different types roll material.
4.Elegant and sleek appearance design, not only an advanced printing equipment, but also a decoration for the company.
5.Integrated machine control centre. Convenient and high-efficiency.
6.Rigorous ink filtration design, Effectively avoid the impurities from going into the ink supply system.
7.Modular component design for the connection of printhead and ink supply system, makes the printhead installation, cleaning and replacing to be quite convenient.
8.Mature time-set stirring system for white ink, effectively decrease the problems caused by white ink precipitation.
9.Printer will automatically stop when the printhead carriage hit any unexpected object during working, and system memory function support continuing printing from the interruption part, reduce the material waste.
10.Movable and foldable front and back platforms are standard equipped. Convenient for storage.
11.Ultrawide LED Light Bar (optional Part) .Convenient for checking backlit material printing quality.
1) How can I place order?
A: Contact us about your order details,we will prepare the PI .
2) How can I pay you?
A: Uaually we accept T/T, Western Union
3) How about the after-sale service?
A: Machine guarantee 12 month, printheads are no guarantee. We supply the on line technology even machine out of guarantee.
4) If I buy the machine, can you supply the ink, material, etc also?
A: Yes sure, please use the Original ink, it's better for the printer maintance, we can supply the relate material also.
5) I want to open a new business, can you give me some ideas?
A: Yes, we can, please tell me what products you want to make, and your request, we can offer you some projects.
Logistics Service:
Professinal Service:
Application:
