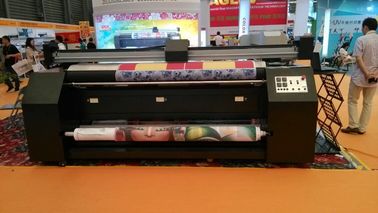

Automatic Fabric Plotter Multicolor with 2 Epson DX7 print head

Automatic Fabric Plotter Multicolor with 2 Epson DX7 print head

Large Image :  Automatic Fabric Plotter Multicolor with 2 Epson DX7 print head

Verified Supplier

Shanghai of China

Verified Supplier

Shanghai of China

Detailed Product Description
Type: Digital Printer Condition: New
Plate Type: Roll To Roll Automatic Grade: Automatic
Color & Page: Multicolor Usage: Cloths Printer, Fabric Printer
High Light:

large format plotter

,

large format printers

Product name:Automatic Fabric Plotter Multicolor with 2 Epson DX7 print head









Product features:



1. Far Infrared Blackbody Tube Radiation Electro thermal Heating, our tuble can work at least 10000 hours.




2. Our machine have excellent heat insulation, can save more power for you.




3. Easy to load the media in and out oven during your machine working




4. Blackbody tuble have more thermal efficiency







5. Intelligent PID Temperature Control



6. Feeding and Taking up Are synchronous




7. Taking up can choose roll to roll .







8. Quick Tail Gas Treatment




9. Convenient to Maintain




10. Easy to Set up and Operate







11. Easy to open the caver to clean inside of oven




12. Easy to change the active carbon from the filter











Applicaton:



Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.





Specification:



Product parameter
Product name Sulimation textile printing system
Model CSR2200
Include One set of whole machine and one filter
Ink model Sublimation ink
Available color Dual CMYK
Print head Piezo technology,2 Epson DX7 print head
Max material width 2300mm
Max printing width 2200mm
Print head high control 1.5mm/1.6mm(adjustable)
Printing resolution and speed Resolution(DPI)                  Speed
360*1080dpi(6 pass)        18m2/h
540*720dpi(6 pass)          18m2/h
720*720dpi(4 pass)          23m2/h
360*2160dpi(6 pass)        16m2/h
Media type Polyester
Ink feeding system 4 color  mode:400cc  cartriage*2color  800cc/color
Roll outer diameter 3 inch
Max weight for roll material 100kg
Head cleaning Automatic/Manual
RAM 128M
Printer power AC220-240V(Adaptive)  50/60Hz±1Hz
Sublimation heater power AC220-240V   16A   50/60Hz±1Hz
Heater power consuption 3500KW
Printer power consuption 6KW
Weight 780KG
Operation environment 20-23oC   Humidity:40-60% (non-condensing)
