Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric

Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric

    • Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric
    • Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric
  • Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric

    Product Details:

    Place of Origin: Shanghai of China(Mainland)
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package(Package size 4.56X1.18X1.56M)
    Delivery Time: Within 5 working days after get your payment
    Payment Terms: T/T
    Supply Ability: 1000 sets / month
    Contact Now
    Detailed Product Description
    Usage: Advertising Flag Making,Indoor & Outdoor Working Method: Computer Input Print Data
    Print Media Type: All Kinds Of Natural Fiber,synthetic Fiber,mainly Polyester,cotton Data Interface: USB
    Heating System: Front Heater,print Platform Heat,back Heat Print Head: Epson DX5 * 2 Pieces
    Print Mode: Continous Bulk Ink System Color & Page: Multicolor(C,M,Y,K)
    Type: Inkjet Printer Ink Type: Water Based Ink(sublimation / Pigment)
    Compatible OS: Win XP & Win 7 / 8 / 10 Rip Software: Onyx
    High Light:

    fabric printer machine


    large format plotter

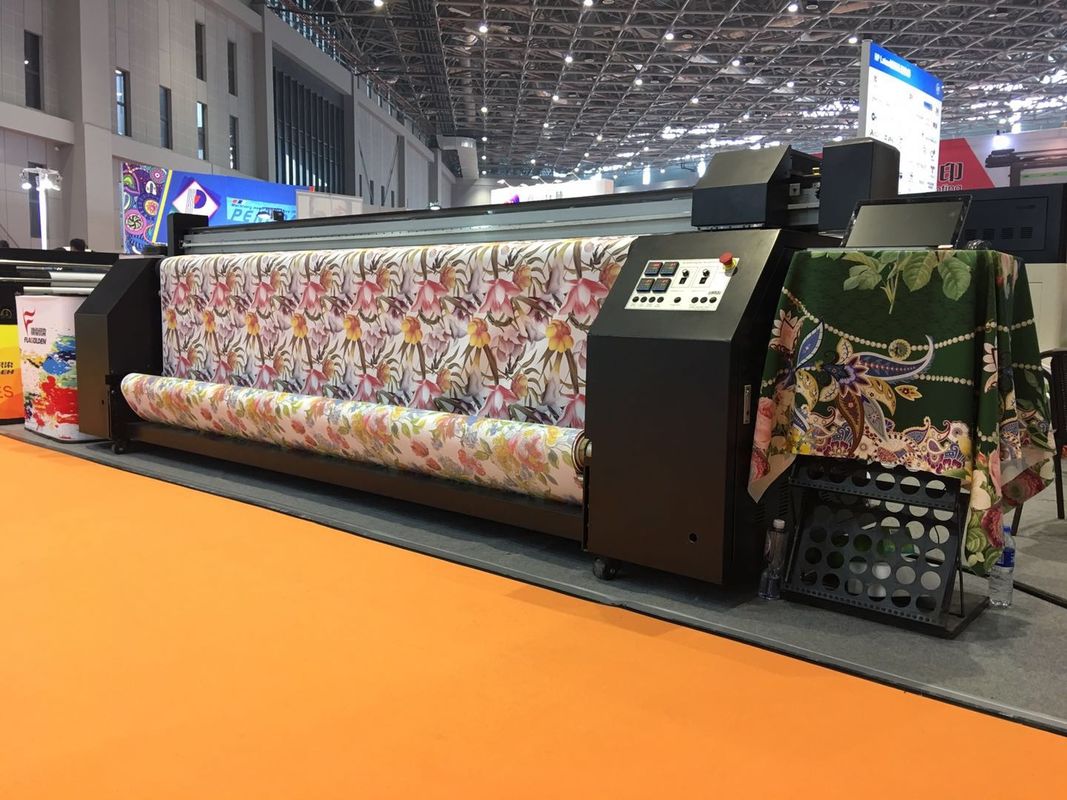

    CMYK Colour Digital Fabric Printing Plotter For LED-box Fabric




    One 3.2m integrated printer system(with the function of print and dry)

    One filter fan to absorb waste air,protect the environment.


    Technical Detais


    Model CSR 3200 Fabric plotter
    Printhead  2pcs micro Piezo Epson DX5 Printheads
    Color Mode 4 colors(Cyan,Magenta,Yellow,Black)
    Nozzles (180 nozzles * 8 lines)*2 heads
    Height of Print Head 1.5mm - 6mm(adjustable)

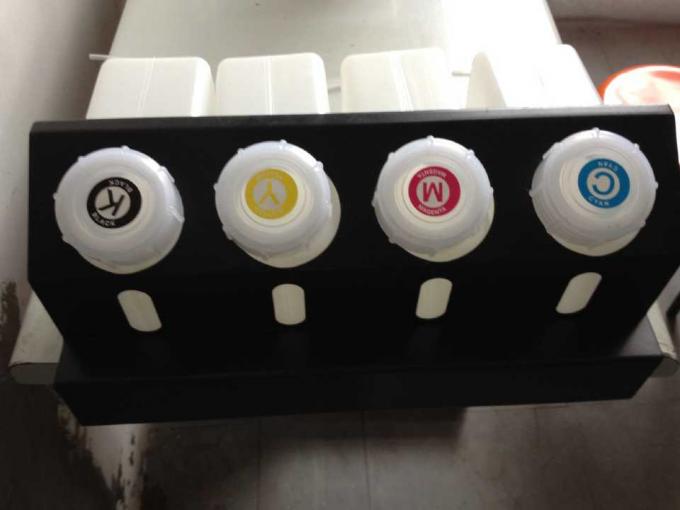

    Ink Supply Mode Continuous Ink Supply
    Medium Textile Fabric
    Media Adsorption system Intelligent multi-function,multi stage adjustable intensity
    Media feeder Yes
    Media take-up Yes
    Ink Type Dye sublimation ink,water-based ink,pigment ink
    Auto cleaning system automatic cleaning and moisturizing spray has blockades flash function
    Heating system Intelligent embedded segment heating system
    Three Heating Sections Pre-heater,printing bed heater,rear heater
    Control software print Console


    Rip Software Onyx
    Picture Type .JPG .TIFF
    Max Printing Width 3200mm(126”)
    Roll Owter Diameter 3 Inch
    Max Weight For Roll Material 100KG
    Interface USB 2.0
    RAM 128M
    Printer Power 380V

    Direct Dye Sublimation Heater 3500W

    Printer 2000W

    Environment temperature 20-32 degree
    Weight Gross weight:1439kg   Net weight:1130kg
    Packge Dimension W4560*D1180*H1560mm + W550*D600*1080

    Printing Resolution And Speed
    Resolution(DPI)          Print Mode                         Speed
    720*360dpi(2 pass)    Sketch Mode               40 sqm per hour
    360*1080dpi(3 pass)  Standard Mode            32
    sqm per hour
    720*720dpi(4 pass)    High quality Mode        22sqm per hour
    720*1080dpi(6 pass)  Precision Mode             18sqm per hour
    720*1440dpi(8 pass)  High-precision Mode     12sqm per hour

     Print and Heat integrated,can be finished by a device directly, eliminating the need for printed material or the installation do extra work


    1. Constant temperature control:temperature adjustable

    2. Low Consumption,high efficiency.

    3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.

    4. The finished product can be directly obtained by one set of equipment.


    Onyx Rip Software

    1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
    2.Colorful color replacement function can easily reproduce the required color.


    Main Features


    1. Simple but strong structure, easy to make installation and maintenance.

    2. Adopts two pcs of Epson DX5 printhead, decreased investment amount but get a significant higher speed.

    3. High-precision media feeding gear disc molded ensures concentricity and media feeding uniformly



    1. Low cost:About 2 degree electricity cost per hour with non-stop running.
    2. High productivity:40m2 / hour of the speed.
    3. Dye Sublimation system:print onto fabric with sublimation ink.
    4. Directly print on textile:no need any transfer paper.
    5. Ink Cost:10 - 15 ml / sqm.




    1. CMYK four Colors.

    2. 3.2m Print Width.

    3. Suitable for Water Based Ink, Sublimation Ink, Pigment Ink.

    4. Indoor Signs, Textile Printing, Decoration and so on.

    5. Automatic Feeding, Taking Up, Cleaning, Heating.

    This type of high-tech inkjet printer is mainly used for advertising industry. It can present pictures vividly.


    Available Ink and Material


    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.


    Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric 0

    1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
    2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
    3. X axis and Y axis are using AC servo motors.
    4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
    5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
    6. The unique print platform design to make the cloth always smooth in the process of printing.
    7. Unique filtering lampblack system,make the picture very clean.
    8. Taking up and feeding roller are inflatable roller.
    9. Taking up and feeding fabric are smoothly
    10.Low cost and no need any transfer paper.




    SportsWear, T-Shirts, Accessories


    BedLinen, Upholstery, Table Cloths


    Mirror Flag / Fabric Banner / Ice Silk Mat Making


    Digital textile sublimation printer is applied in digital textile printing industry to replace traditional printing techniques,which is the solution of both large batch & small batch,low cost,fast printing requirements.the production printing speed and printing width achieves the possibility of textile fabrics printing turning into digital printing method,which is adequately according with customer requirements of sample printing,home textile printing,sign advertisement printing,digital textile printing,building decoration textile printing,flag textile printing,cloth printing,soft-signage,flagbanner printing,wall decoration printing and so on.

    Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric 1



    What Service Can We Supply

    1) Before place order:

    We provide a suitable project according to your environment and production capacity.

    2) Installation training service:

    We dispatch technician to your factory for installation ,testing and training.

    3) Quality Guarantee:

    The whole set of machine guarantee is 1 year.


    Cmyk Colour Digital Fabric Printer Low Consumption For Led - Box Fabric 2
