| Place of Origin: | Shanghai Of China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | 22,000 - 27,800 USD set |
| Packaging Details: | Non fumigation wooden package（Package size 4460*1160*1730mm） |
| Delivery Time: | 7 working days after get your payment |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / month |
| Product Name: | Direct Fabric Printing Machine | Application: | Indoor & Outdoor |
|---|---|---|---|
| Max Resolution: | 1440 DPI | Color Mode: | Dual CMYK |
| Voltage: | 380V,50/60HZ | Gross Power: | 5.5KW |
| Print Head Type: | Two Epson DX5 Print Head | Plate Type: | Roll To Roll Printing Machine |
| Rip Software: | Onyx | Compatible OS: | Win XP & Win 7 |
| Printing Width: | 3.2m | Print Media: | Polyester,cotton,silk Etc |
| Highlight: | epson inkjet printers,epson color printer |
||

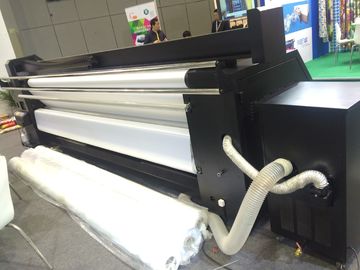

Directly For Textile Epson Head Printer
Specifications:
|
Product parameter |
|
|
Model |
CSR 3200 |
|
Print head |
Piezo technology, Epson DX5 printer head *2 Pcs |
|
Ink |
Sublimation ink,Reactive ink,Pigment Ink |
|
Color model |
Dual KCMY |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
3300mm |
|
Max printing width |
3200mm |
|
Printing resolution and speed |
Resolution speed |
|
720x360dpi (2pass) 40m²/h |
|
|
360x1080dpi(3pass) 32m²/h |
|
|
720x720dpi(4pass) 22m²/h |
|
|
720x1080dpi(6pass) 18 m²/h |
|
|
720x1440dpi(8pass) 12 m²/h |
|
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
128M |
|
Printer power |
380V |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 1120kg Gross Weight : 1280kg |
Advantages:
1. Direct textile sublimation printer can directly print on polyster,Cotton and silk fabric,no need any transfer paper.
2. The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
3.The machine has an easy learing curre,you will be able to use it perfectly within 3 days.
Description:
1. Double Epson DX5 Print heads,faster speed,longer head life time.
2. Feather printing funcation available,print heads correction and counterpoint are more easy.
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

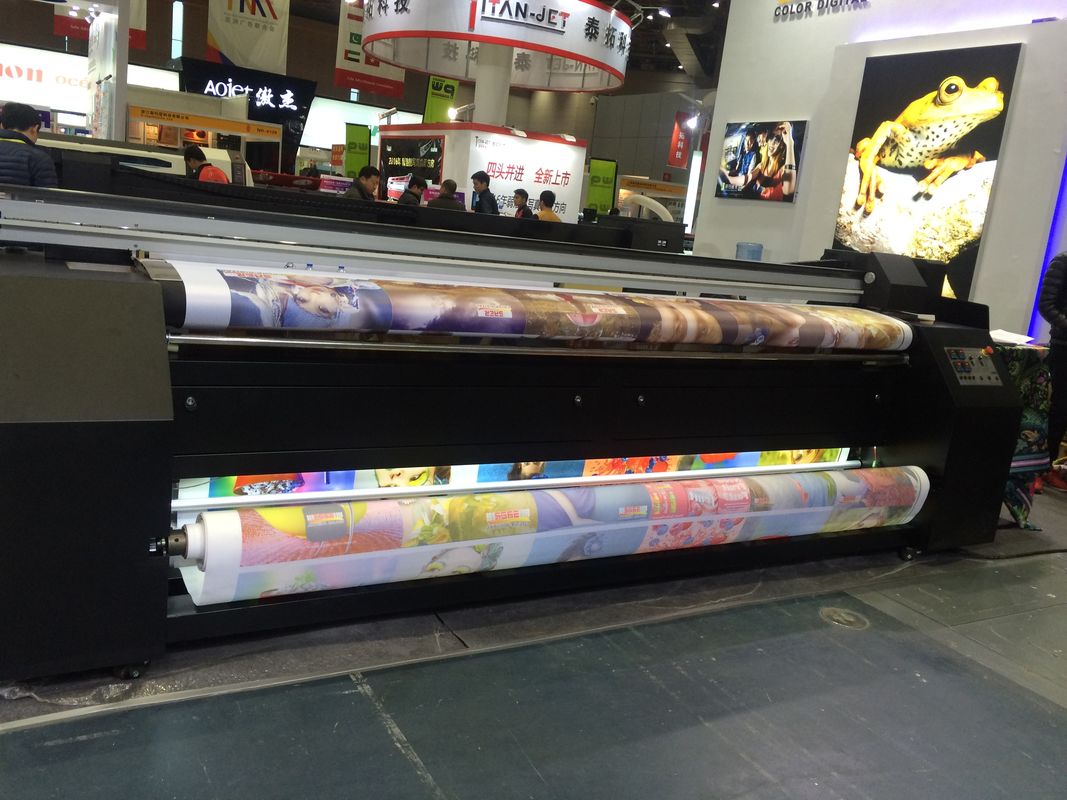

Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
