Professional Digital Textile Printing Equipment & Relevant Materials General Supplier

Home ProductsSublimation Printing Machine

Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type

Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type

    • Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type
    • Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type
    • Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type
  • Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type

    Product Details:

    Place of Origin: Shanghai of China(Mainland)
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 15 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 50 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: 2.2m Digital Fabric / Textile Printer Size Of Panel: 2200mm
    Max Resolution: 1400DPI Type: Roll To Roll
    Condition: New Print Head Amount: Epson DX5*2 PCS
    Color Mode: Dual CMYK Ink Supply Model: Continuous Ink Supply
    Max Materials Width: 2300mm Rip Software: Maintop 5.3 Rip Software Or Onyx Optinoal
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk Etc
    Print Speed: 45 Sqm / H In 4 Pass

    Double Epson DX5 Large Format Fabric / Textile Printing Machine





    Quick Description:



    2.2m All-in-one Directly Fabric / Textile Printer With Filter Fan



    Specifications:



    Model

    CSR 2200

    Brand SAER

    Print head

    Piezo technology, Epson DX5 printer head

    Ink

    Sublimation ink,pigment ink and reactive ink

    Color model

    Double 4 Color(CMYK)

    Nozzles

    (180 nozzles x 8 lines ) x2 heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2300mm

    Max printing width

    2200mm







    Printing resolution and speed

    Resolution                       speed

    360x1800dpi(3pass)               65m²/h

    720x1200dpi(4pass)               45m²/h

    720x1800dpi(6pass)               35 m²/h

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 3.0

    RAM

    128M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net Weight : 764kg                  Gross Weight : 886kg



    Advantages:

    • Directly print on polyster,Cotton fabric,no need any transfer paper.
    • The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
    • The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.

    Product Feature



    1. This Dye Sublimation Textile Printer Machine For Flag. It is Can Direct Printing Sublimation Polyester. It is also can print full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.

    2. It Adopt Newsest Epson DX7 Printhead With High Precison.

    3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.

    4. This machine with print and heat function . save cost and place.

    5. It is direct print image into Fabric .



    Application:



    Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.

    Outside:Advertising materials to make flag,banner,act fast show and so on.Also for clothes.



    Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type



    Comfortable After-Sale Service



    1. We are a highly efficiency and experienced team.

    2. Online support Skype, Whatsapp, Youtube, etc.
    3. Life-time free technical support from SAER factory by engineers who have worked for SAER for 6-7 years.
    4. Onsite Service is acceptable

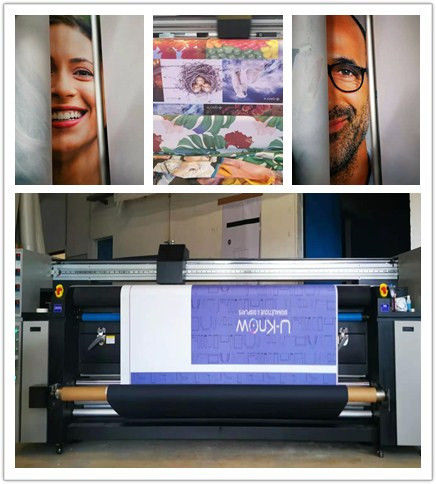

    Machine Details:



    Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type





    Double Epson DX5 Large Format Textile Printing Machine Roll To Roll Type
