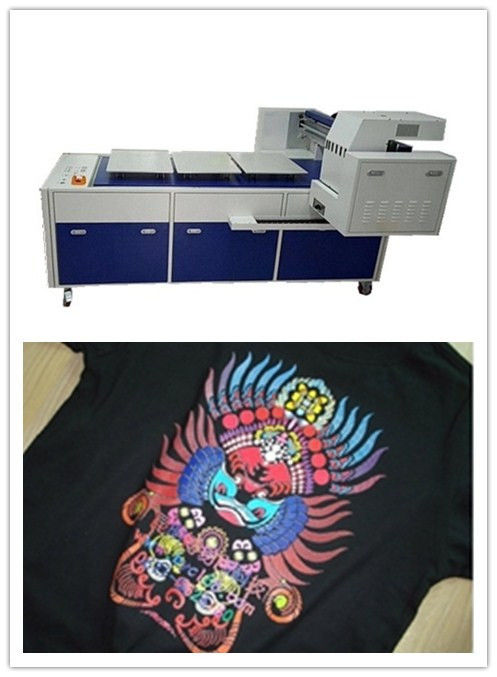

Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm

Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm

    • Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm
    • Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm
  • Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR2200(R)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non-fumigation wooden box
    Delivery Time: withion one week workdays after get the payment
    Payment Terms: Western Union, T/T
    Supply Ability: 100 per month
    Contact Now
    Detailed Product Description
    Max DPI: 1200*1800 Place Of Origin: Shanghai , China
    Ink Type: CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW Condition: New
    Media Type: Fabric Automatic Grade: Automatic
    Warranty: 1 Year Brand Name: SAER
    Voltage: 210/230V

    Product name Large Format Flatbed T Shirt Machine With Printing Size 600*1200mm




    Advantage :



    Equipped with 3 adult clothing plates,which can print different pattern or the same pattern on ready T-shirt ,cloth and bags etc..



    Effective printing area : 600*1200mm (3 trays of  adults clothing can be print at one time )



    Material can be printed : Pure cotton or cotton related products,leather,silk,canvas and other natural fibers.



    Industry applicable : Personalized T-shirt or small batch production.



    Features :



    Easy operation : Full color or gradient color can be printed at one time



    High washing fastness : Never fade,excellect breathability.



    Professional ink : Fully meet the highest testing standards of EU.



    Less investment cost: Minimal dependence on personnal,ideal for small lots with high value-added products.










     Working Speed:




    Speed Production models A3 size 4pass Dark color fabric 1min.14s
    Light color fabric 58s
    precision A3 size 6pass Dark color fabric 1min.52s
    Light color fabric 1min.27s







      Specificaiton:




    Items Technical Parameters
    Model

    CSR2200(R)

    Print head Print head Ricoh GH2220 head
    QTY 8 pieces
    Ink Color CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
    Ink type Import pigment ink, good fastness,bright color
    Ink supply Negative pressure supply ink
    Interface USB
    Computer system CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
    Working environment temperature:20℃-30℃, humidity:55%-70%
    Power supply 210-230VAC 50/60 HZ 16A
    Software Rip software
    Machine Dimension 2065*1705*1240mm
    Machine Weight 260kg






    Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm


    Large Format Flatbed Tee Shirt Printing Machine With Printing Size 600*1200mm















    Thank you for your reading, if you are interest in this printer, please feel free to contact me
