Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai of China |
| Brand Name: | SAER |
| Certification: | CE Certification |
| Model Number: | SR 3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm) |
| Delivery Time: | whithin 7 working days after get the payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets per month |
| Plate Type: | Textile Fixing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Color & Page: | Multicolor |
| Dimensions(L*W*H): | 4350mm*1310mm*1230mm | Working Width: | 3.2m |
| Working Type: | Roll To Roll | Working Speed: | 20-100m/h |
| High Light: | digital printing machine,digital printing machines |
||

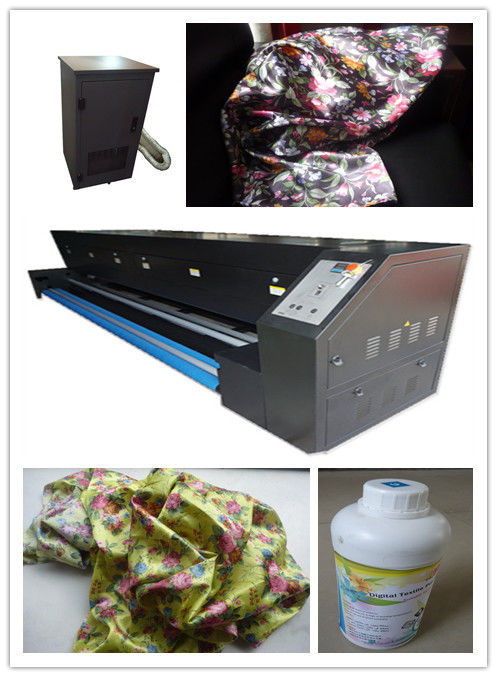

Textile Fixing Printing Sublimation oven To Make Fabric Color Brightly 3.2m
Products Features:
1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
2. Our machine have excellent heat insulation,can save more power for you.
3. Easy to load the media in and out oven during your machine working
4. Blackbody tube have more thermal efficiency
5. Intelligent PID Temperature Control
6. Feeding and Taking up Are synchronous
7. Perfect oil & water collect solution in oven..
8. Quick Tail Gas Treatment
9. Convenient to Maintain
Advantages:
1. Suitable for small lot, Personality, Diversity Printing, Without Limit Of Quantity.
2. The printed image color is bright and vivid with nice color gamut
3. .Rapid speed and various printer to choose
4. It is simple and leave out heat transfer process, one person can operates with high efficency and short time.
5. Low cost and no need of any kind transfer paper, liner breaking the highest costs performance
Specifications:
|
Product Name |
Direct Dye Sublimation machine |
|
Model |
SR 3200 |
|
Blackbody Tube Working Model |
Far Infrared |
|
Mainly Use |
Appear and fix the color |
|
Power |
6.5kw(include filter fan) |
|
Maximum Width |
3300mm |
|
Heat Tube Dimension |
3400mm |
|
Working Temperature Control |
Room temperature ~250°C |
|
Temperature Control Method |
PID |
|
Tension Control |
3kg(optional counterweight to control tension) |
|
Maximum Speed |
0~2800mm/min |
|
Filter Fan Speed |
0~300m³/h |
|
Filter Fan Power |
400W |
|
Working Voltage |
220v 50hz |
|
Machine size |
4350mm*1310mm*1230mm(not include filter |
|
Net Weight |
625kg(not include filter) |
|
Gross Weight |
1025kg(Include filter and package) |
|
Operating mode |
Instrument control, manual, automatic opera |
Application:
Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

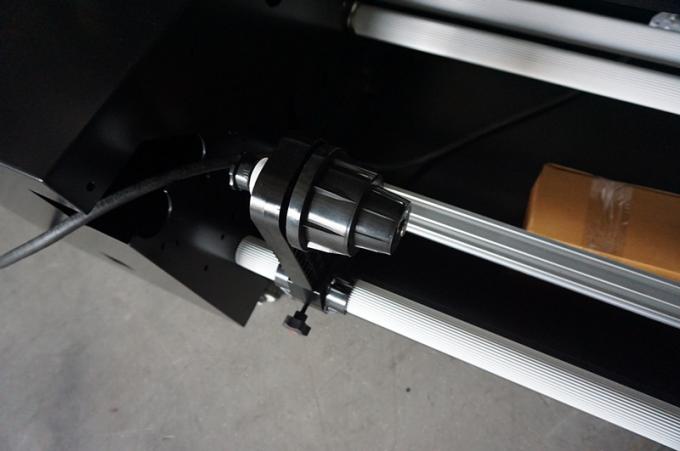

Machine Details:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
