Large Format Sublimation Heater Machine Color Fixation Unit Automatic Feed Take Up System

Verified Supplier

Shanghai Of China

Detailed Product Description
Machine Type: Fixation Unit Color & Page: Multicolor
Dimensions(L*W*H): 4350mm*1310mm*1230mm Working Type: Roll To Roll Or Cloth Inserted
First Power: 6.0kw Usage: Heat Wet Ink On Fabric,fix Color
United With: Any Piezo Printers Working Size: 3.2m
Automatic Grade: Automatic After-sales Service Provided: Engineers Available To Service Machinery Overseas
Warranty: 1 Year
High Light:

sublimation oven


printing dryer


textile printing machines




Large Format Fixation Unit Automatic Feed And Take Up System




One Sublimation Textile Heater,high temperature to heat the wet ink and fix the color of fabric after printer printed.

The other is Filter Fan to collect wasted gas,protect the environment.


This machine mainly aimed at the post processing program for printing cloth,dry the wet ink,then appear the real painting you want.




Product Name Color Fixation Unit
Model SR 3200
Blackbody Tube Working Model Far Infrared
Mainly Use Appear and fix the color
Power 6.5kw(include filter fan)
Temperature Control Method PID
Tension Control 3kg(optional counterweight to control tension)
Filter Fan Speed 0~300m³/h
Filter Fan Power 400W
Gross Weight 950kg(Include filter and package)
Operating mode

Instrument control, manual, automatic opera



Filter fan specification:


Power 360W
Working Voltage 220~240V 50HZ
Package Size 620X565X1100mm
Weight 60 Kg
Input Air temperature >200 °C
Out put Air temperature <25 °C
Filter Medium Active Carbon
Certification CE Certificated

Products Features:

  • Constant Temperature Heating Box

Rapidly heating,good leakproofness ensure the temperature constant

  • Green smoke extraction filtration system

Filter and sublimation smoke effenciently,keep the environment clean

  • Open ink supply system

Compitable with many brands of sublimation ink,easily control the heating speed


1. Exhaust without any smell, good environment need.
2. Normal tempreture for exhaust, no dangerous for hot air out.
3. High Efficiency cold system to make sure the exhaust temperture less than 25 Degree




a. Low cost

b. High quality

c. Working together with any piezo printers.

d. Directly heating on textile with high temperature.

e. Good after sales service.

Our sublimation machine is CE certificated. And our sublimation  printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

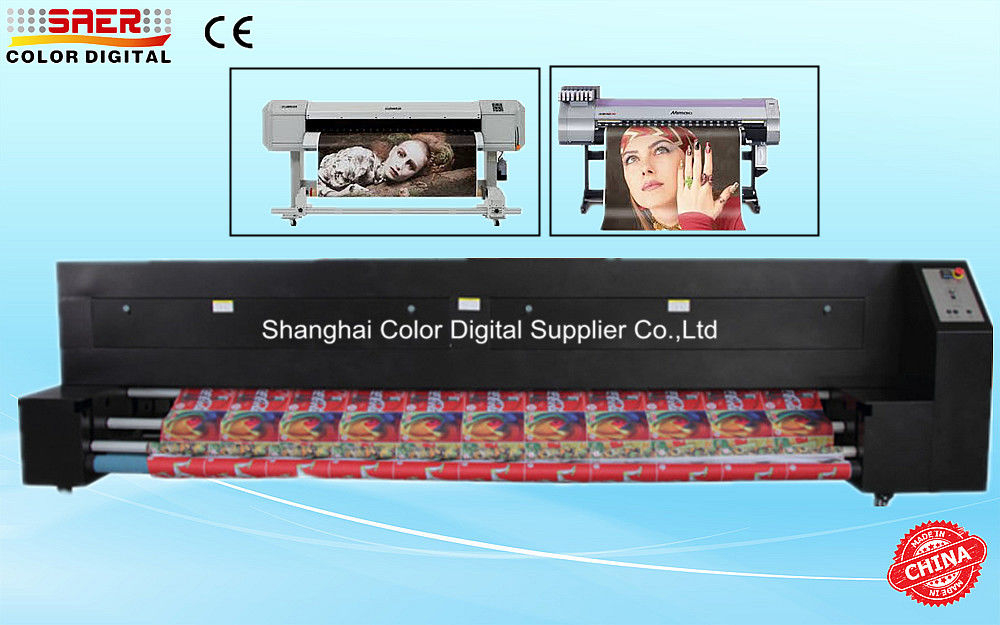

Large Format Sublimation Heater Machine Color Fixation Unit Automatic Feed Take Up System 0

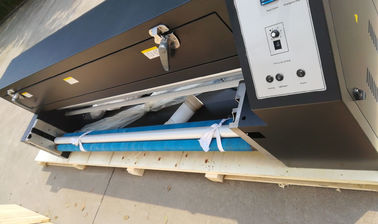

Machine Details:

Large Format Sublimation Heater Machine Color Fixation Unit Automatic Feed Take Up System 1


Heated Samples:

Large Format Sublimation Heater Machine Color Fixation Unit Automatic Feed Take Up System 2




1) Before place order:


We provide a suitable project according to your environment and production capacity.


2) Installation training service:


We dispatch technician to your factory for installation ,testing and training.


3) Quality Guarantee:


The whole set of machine guarantee is 1 year.
