1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk

1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk

    • 1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk
    • 1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk
  • 1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 2200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: 17000 - 22,000 USD / Set
    Packaging Details: None fumigation wooden package (Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after the payment
    Payment Terms: T/T
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Product Name: Flag Printing Machine Maximum Resolution: 1440dpi
    Print Head: Epson DX5 * 2 PCS Ink Supply Model: Continous Ink Supply
    Rip Software: Onyx Ink Type: Dye Sublimation Ink,pigment Ink,reactive Ink
    Media Type: Polyester,Cotton,Wool,Mixed,Linen And Silk Textile Material Etc Color Management: Superior ICC Profile
    Printing Interface: Computer Control The Output Directly Media Handle: Automatic Feeder,automatic Take Up
    Media Processing: Roll To Roll + Auto Feeding + Auto Roll Up Media Heating: Pre-heating & Post Color Fixation
    Minimum Resolution: 360dpi Ink Clor: C,M,Y,K
    Maximum Speed: 40㎡ / Hour Maximum Media Breadth: 2.4m
    Max Print Breadth: 2.2m Print Head Cleaning: Automatic Clean

    1440 DPI Epson Head Flag Printing Machine For Polyester,Cotton,Silk


    Introduce



    Consist of 2.2m integrated fabric printing system and filter fan, sublimation printing type, printed material can use indoor and outdoor, can stand sunshine and no fade, also can be washed.



    Usage Field:

    Serve solutions for small production, sample making ,designer ideas and training areas


    Product Features:



    • Saer Flag Printing Machine:with high resolution,outdoor and indoor applied,designed especially for printing of textile,sublimation flag banner,cloth etc.
    • Double 4 color type outdoor and indoor printer,Adopts the Epson 5th Generation of piezo technology,two heads,each head has 1440 nozzles in 8 rows,long using life.
    • Using HIWIN mute guide rail.germany IGUS silent drag chain,make your printing environment more quiter.
    • Strong Media Feed-in system,for smooth printing on heavy materials,such as oxford fabric,cotton and linen blend fabric.
    • X axis and Y axis are using AC serve motors



    Technical Specifications:



    Brand Name SAER

    Machine Model

    CSR 2200

    Print head technology

    Piezo technology

    Print Head Epson DX5

    Color mode

    Double four color(C,M,Y,K)

    Nozzles

    (180 nozzles x 8 lines ) x2 heads

    Print head higher

    1.5mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Maximum materials breadth

    2400mm

    Maximum printing breadth

    2200mm

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 2.0

    RAM

    128M

    Print Power

    AC100-120V./AC220-240V(Adaptive)   50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               100w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Available Media Polyester,cotton,silk,linen,blending,knitting Fabric
    Ink Type Dye Sublimation,Reactive and Pigment
    Media Handle Automatic feeder,automatic take up
    File Format

    TIFF,JPEG,PDFand other common image formats

    Control software Chinese version and English Version

    Weight

    Net Weight : 764kg                  Gross Weight : 886kg

    Rip Software Onyx
    Working Process Windows XP / Windows 7
    Gross Weight 886kg
    Net Weight 646kg
    Package Size 3350*1070*1550mm



     Printing Resolution And Speed:


    Resolution speed
    720 x 360dpi (2pass) 40m²/h
    360 x 1080dpi(3pass) 32m²/h
    720 x 720dpi(4pass) 22m²/h
    720 x 1080dpi(6pass) 18 m²/h
    720 x 1440dpi(8pass)

    12 m²/h



    Ink and Material it can use

    a. Sublimation Ink for Coated polyester fabric.
    b. Reactive Ink for polyester,cotton,silk,linen,cotton and linen blended fabric,weave fabric
     etc
    c. Pigment Ink for all kinds of textile fabrics.

    1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk



    After Sales Service:

    1. One year warranty
    2. Provide 24 hours online service.
      when you the first time operate the machine,our engineer will be online to guide you.
      When your machine have any problem, our engineer will help you to solve it through remote control.
    3. If necessary,we can send you new spare parts.

    Application:

    Home Decoration:Print on polyester fabric to make windows curtain and Table cover,bed sheets and so on,also can make Wall Stickers.
    Outside Using :Advertising materials to make flag,pop up banner,tear drops banners,and so on,no fade and can stand sunshine and rain.

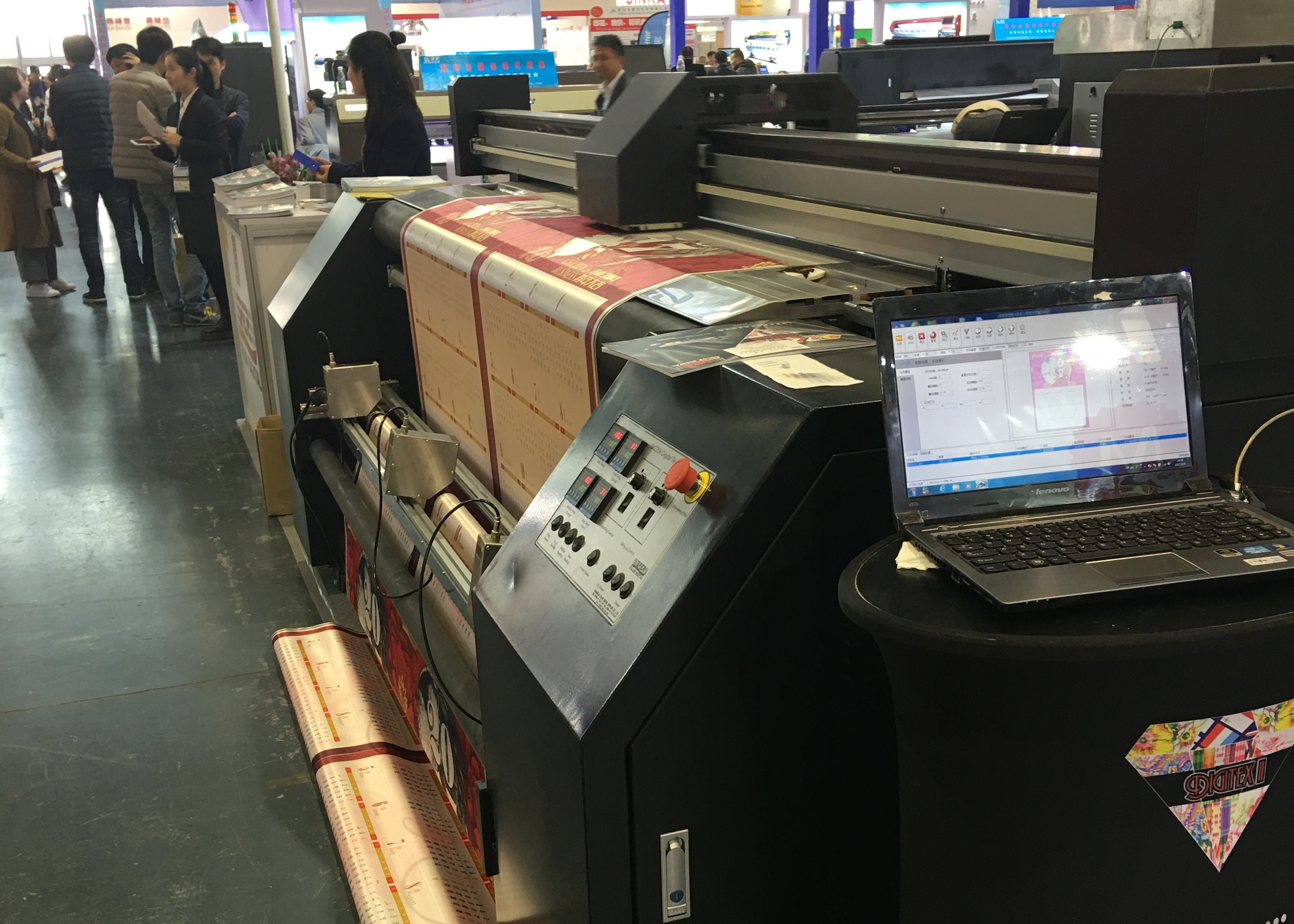

    Machine Details:

     1440 DPI Epson Head Flag Printing Machine For Polyester / Cotton / Silk
