Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | China |
| Brand Name: | SAER |
| Certification: | CE |
| Model Number: | CSR2200 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD $21000-25000 |
| Packaging Details: | Non Fumigation Wooden Package |
| Payment Terms: | T/T, Western Union |
| Voltage: | AC210-230V 50-60HZ 16A | Automatic Grade: | Automatic |
|---|---|---|---|
| Weight: | 833kg | Plate Type: | Digital Printing, Textile Printer, Roll To Roll |
| Dimensions(l*w*h): | 3710*1210*1690MM | Ink Type: | Sublimation Ink/Pigment Ink |
| Usage: | Cloths Printer, Paper Printer, Bill Printer, Card Printer, Label Printer | Type: | Digital Printer, Inkjet Printer, T Shirt Flatbed Printered, DTG Printer |
| Warranty: | 1 YEAR WITHOUT PRINT HEAD | Print Dimension: | 2000mm |
| Color: | Dual CMYK | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Print Head: | Epson Head | Printing Material: | Cloth, Polyester,cotton |
| Rip Software: | Maintop,ONYX | ||
| High Light: | Pigment Ink Flag Printer Machine,Automatic Flag Digital Fabric Printer,Directly Flag Printing Machine 2000mm |
||

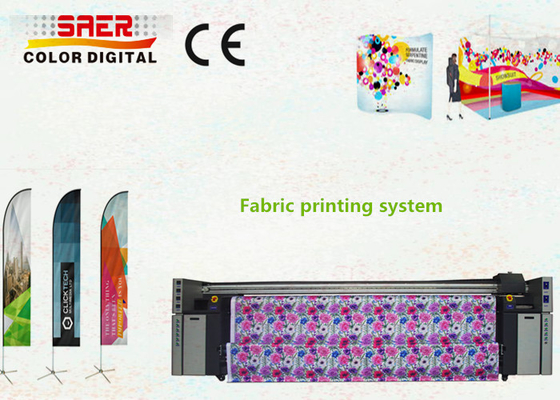

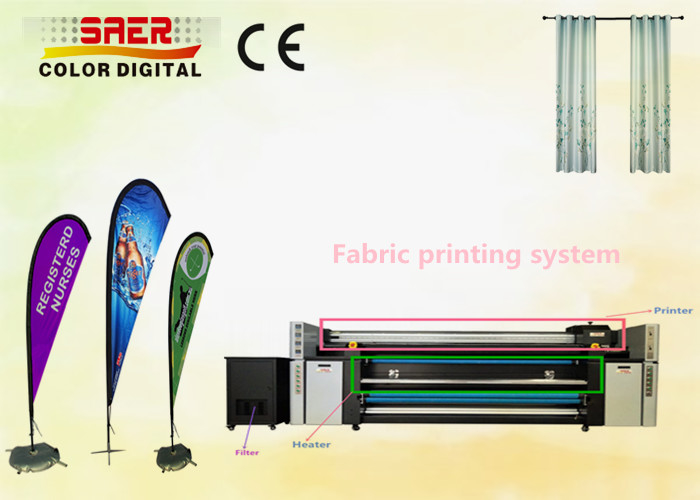

Product name : 3 pieces Epson head Pigment ink directly printing inline curing solution
Machine working speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Description:
Print head:
Three Epson Print heads, faster speed, longer head life time. Feather printing function available, print heads correction and counterpoint are more easy. Intelligent print head cleaning service, supply safe and convenient print head cleaning and protection function.
Guid Rail:
Using HIWIN mute guide rail. Germany IGUS silent drag chain make your printing environment more quit ．
X axis and Yaxis:
X axis and Y axis are using AC servo motors.
Machine specification:
| Product Parameter | |
| Model type | CSR2200 |
| Print head | 3 pieces Epson print head |
| Ink | Sublimation ink, pigment ink |
| Number of nozzles | (400 nozzles*8lines)*3head |
| Color | Dual CMYK |
| Print head high | 1.5mm/6mm (adjustable) |
| Ink supply mode | Continuous ink supply |
| Max materials width | 2200mm |
| Max printing width | 2000mm |
| Roll outer diameter | 3 inch |
| Maximum weight for roll material | 100kg |
| Interface | USB2.0 |
| RAM | 128M |
| Printer Power | AC100-120V/AC220-240V(adjustive) 50/60HZ |
| Power | Heater 3.5kw |
| Printer 100w | |
| Temperature | 30-32℃ |
| Humidity | 40-60%(Non-condensing) |
Advantages:
1.Equipped with the feeding motor Positive and Negative transfer function, taking and feeding constant tension transmission system.
2. The unique print platform design to make the cloth always smooth in the process of printing.
3. Unique filtering lampblack system, make the picture very clean.
4. Taking up and feeding roller are inflatable roller.
5. Taking up and feeding fabric are smoothly
Application industry:
1), personality print: such as shops, cell phone decoration shop, personality gift shop.
2), advertising industry: indoor and outdoor advertising.
3), products proofing: all kinds of traditional printing sample production.
4), studio: digital image production.
5), clothing industry: sample print or character pattern of color printing.
