Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
|Place of Origin:||Shanghai of China (Mainland)|
|Model Number:||CSR 3200|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Non fumigation wooden package（Package size 4460*1160*1730mm）|
|Delivery Time:||10 working days after get your payment|
|Supply Ability:||100 sets / month|
|Product Name:||Polyester Flag Printing Machine||Application:||Commercial Fair And Advertisement Flag Banners|
|Resolution:||Minimum 360 Dpi To 1440 Dpi Maximum||Color Mode:||4 Color (CMYK)|
|Voltage:||380V,50 / 60HZ||Gross Power:||5500w|
|Print Head Type:||Two Epson DX5 Print Head||Rip Software:||Onyx|
|Compatible OS:||Win XP & Win 7||Printing Width:||3200mm|
|Working Type:||Connect With The Computer||Print Media Type:||Polyester,cotton,silk,wool Etc|
|Print Head Technology:||Piezo Inkjet||Heating System:||Front Heater,print Platform Heat,back Heat|
|Ink Type:||Sublimation,reactive And Pigment Ink|

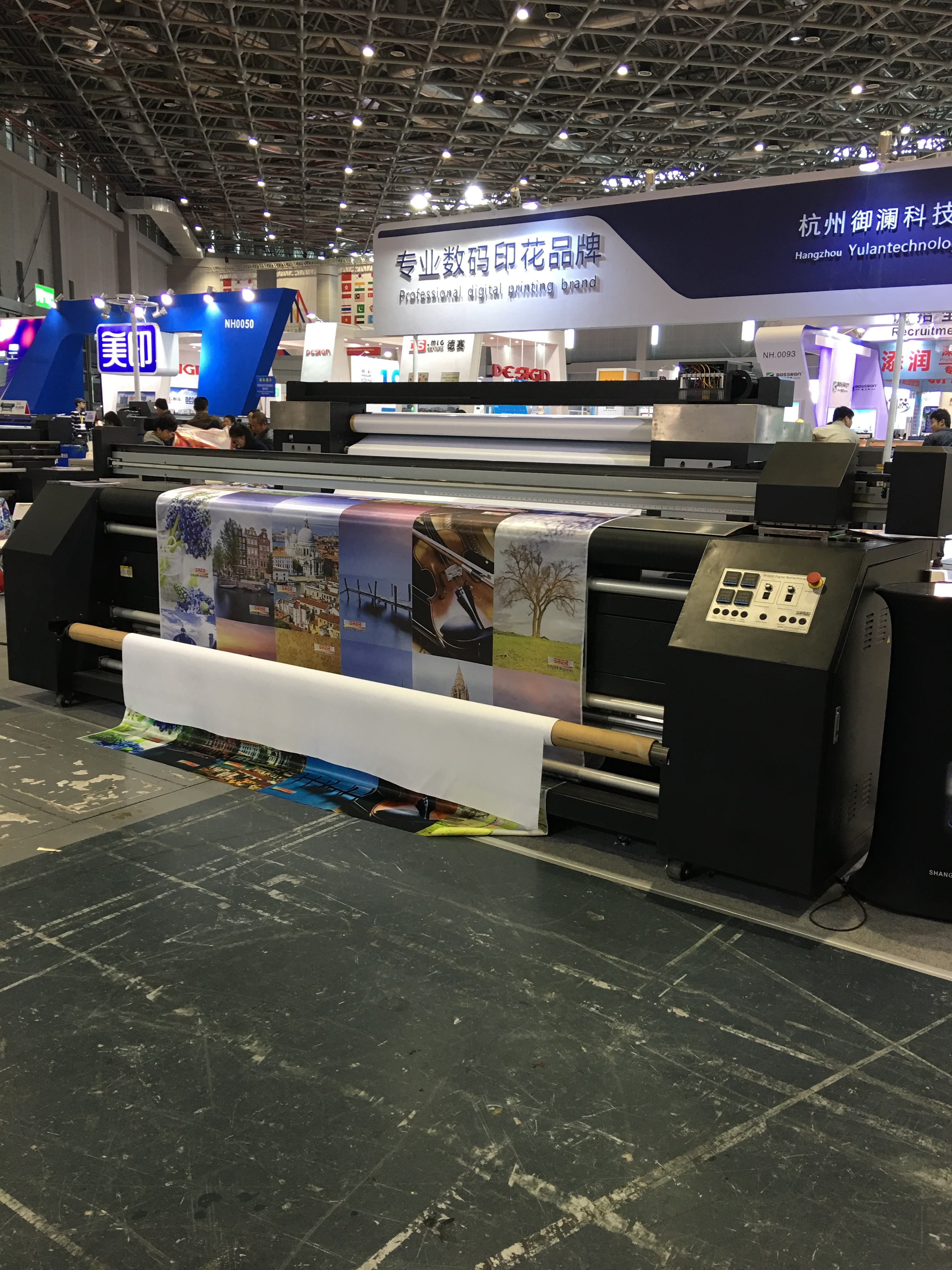

Large Format Polyester Flag Printing Machine
One integrated printer system(print and heat together)
One filter fan for pollute waste air
Serve solutions for small production,sample making ,designer ideas and training areas .
Printing and Heating together
|Printhead technology||Piezo technology, Epson DX5|
|Amount of head||Two Pieces|
|Color Mode||4 color,Cyan,Magenta,Yellow,Black|
|Nozzles||180 nozzles * 8 lines|
|Print Head Height||1.5mm / 6mm(adjustable)|
|Ink Supply Mode||Continuous Ink Supply|
|Max Printing Width||3200mm|
|Roll Owter Diameter||3 Inch|
|Max Weight For Roll Material||100KG|
Direct Dye Sublimation Heater 3500W
|Environment||temperature 20-32 degree|
Printing Resolution And Speed:
Resolution(DPI) Print Mode Speed
720*360dpi(2 pass) Sketch Mode 40m²/h
360*1080dpi(3 pass) Standard Mode 32m²/h
720*720dpi(4 pass) High quality Mode 22m²/h
720*1080dpi(6 pass) Precision Mode 18m²/h
720*1440dpi(8 pass) High-precision Mode 12m²/h
Print and Heat integrated,can be finished by a device directly, eliminating the need for printed material or the installation do extra work
1. Constant temperature control:temperature adjustable
2. Low Consumption,high efficiency.
3. Print and heat together,make the picture drying fast and more gorgeous,save the labor cost effectively,reduce the print rejection rate.
4. The finished product can be directly obtained by one set of equipment.
Onyx Rip Software:
1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
1. Low cost:About 2 degree electricity cost per hour with non-stop running.
2. High productivity:40m2 / hour of the speed.
3. Dye Sublimation system:print onto fabric with sublimation ink.
4. Directly print on textile:no need any transfer paper.
5. Good after sales service:1 year maintenance period.
Available Ink and Material:
1) Sublimation Ink (water based): mainly used in polyester fabric.
Completed fabric can use to make all kinds of flags,banner shows and for home decoration
2) Reactive Ink:For cotton,linen and silk etc.
After printing and heating,the materials can use to make clothes and scarf.
3) Pigment Ink:For all kinds of textile fabrics.
1. Double Epson DX5 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Mainly use for publicity and pilot identify of commercial fair and major incidents.
How To Order:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
Printer Detail Pictures:
