| Place of Origin: | CHINA |
| Brand Name: | SAER |
| Certification: | CE CERTIFICATE |
| Model Number: | CSR 2200 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiation |
| Packaging Details: | without fumigation wooden package |
| Delivery Time: | 5-8 DAYS AFTER PAYMENT |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sets / month |
| Type: | Inkjet Printer | RAM: | 128M |
|---|---|---|---|
| Usage: | Cloths Printer | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Keywords: | Sublimation Machine |
| Product Name: | Sublimation Textile Heat Transfer Printer | Feature: | High Speed |
| Ink: | Pigment Ink Sublimation Ink | Print Head: | Epson High Presicion |
| Resolution: | 1800DPI | Plate Type: | Textile Printer |
| Printing Material: | Polyester | ||
| High Light: | digital fabric printer,continuous inkjet printer |
||

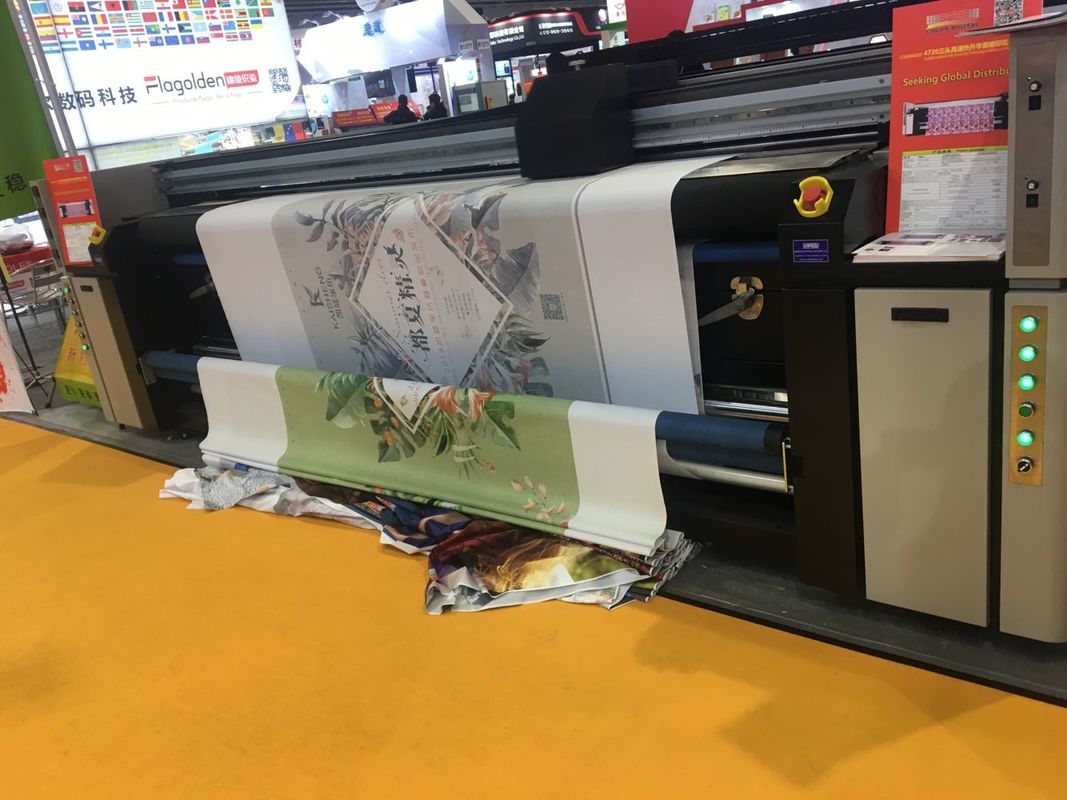

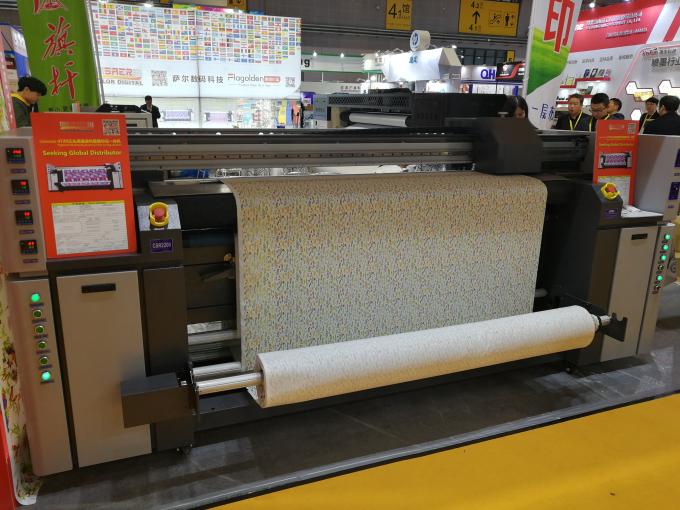

Direct Textile Printer Digital Printing Sublimation Printer Textile Printer with epson print head is suitable for producing multi color fabric in polyster fabric material. It is widely used to produce flag textile, ribbon, wall sticker etc. Automatic printing and dye make colors more bright, more fantastic, more beautiful.
1. rapidly heating, good leakproofness ensure the temperature constant
2. filter and sublimation smoke efficiently, keep the environment clean
3. Compatible with many brands of sublimation ink, easily to control the printing cost.
4.using HIWIN mute guide rail.
5.Germany IGUS silent drag chain.
6.make your printing environment more quieter
7.X axis and Y axis are using AC servo motors
| Product Model | CSR 2200 |
| Printhead | Piezo technology, Three Epson printer heads |
| Ink | Environmental Sublimation ink, Pigment Ink optional |
| Color | Dual KCMY |
| Printing Media | Soft roll to roll |
| Fabric Type | Knitted or woven cotton,linen,silk,wool,chemical fiber,nylon.oxford,cotton etc |
| Medium Transfer | Continous Transport Automatic Fabric Feeding & Taking-up |
| Nozzles | (180 nozzles x 8 lines ) x3 heads |
| Printer head higher | 15mm / 6mm ( Adjustable ) |
| Ink supply model | Continuous ink supply |
| Ink Volume | 2000ML Volume ink,automatic ink detector |
| Max materials width | 2200mm |
| Printing width | Maximum 210 cm |
| Printing Speed | Production Mode 45㎡/hour |
| Image Data Format | TIFF,JPEG |
| Rip Software | ONYX |
| Roll diameter | 3 Inch |
| Maximum weight for roll material | 100kg |
| Interface | USB 3.0 |
| RAM | 128M |
| Printer power | AC210-230V / AC220-240 Adaptive 50/60Hz |
| Sublimation machine | AC220-240V. 16A. 50/60Hz |
| Power consumption | Direct dye sublimation heater 3500w |
| Printer 1000w | |
| Temperature | 20-32°C(68 – 89.6 ℉) |
| Humidity | 40-60% RH |
Home Decoration
Print on polyester fabric
make windows curtain and Table cloth sheets
can make Wall Stickers.
This machine prints directly on fabric without heating transfer process. It can work continuously for 24 hours without corrugated.
1. Stable and continuous printing, using strong mechanical to ensure printing high resolution and stabilitIty
2.Adopt professional feeding system and fit to textile without tension. Stable feed
resolution and stability material, make sure printing process
3. No need platemaking and fit to flag and scroll
4. Using constant temperature coloration box, fast temperature rising. Good tightness to guarantee the even temperature
5. Environmental smoke exhaust filter system to handle smoke efficiently and make clean work shop
6. Use open ink supply system which is compatible to more brand sublimation ink
1.With one year warranty and lifelong technical support.
2.Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairmen and replacement by international courier
4. provide production, R&D, marketing and service. We provide high quality products, profitable printing solution,free training,on line technicial supporting and on-site service to our customers.

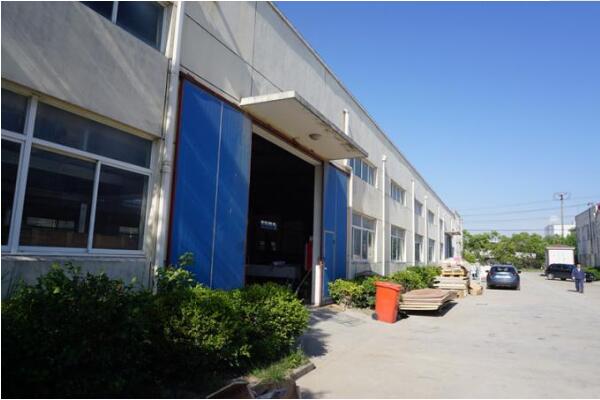

Shanghai Color Digital Supplier Co.,ltd
was established in 2001. It is advanced professional Digital Printing Equipment & Relevant materials manufacture in china .
As the development of the market, we spend a lot of financial resources and human resources to focus on the research and development of indoor and outdoor inkjet printer, and all kinds of ink. In order to satisfy our customer of all over the world, we continually upgrade our service and improve the quality of our products.
Our products include:Digital Textile Printers with Epson / XAAR / Kyocera Head,Sublimation Heater(Oven),Printing Materials,inks and Relevant Spare Parts for Piezo Printers.All our products have been CE Certificated.
