Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution

Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution

    • Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution
    • Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution
  • Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution

    Product Details:

    Place of Origin: Shanghai Of China
    Brand Name: SAER
    Certification: CE certification
    Model Number: CSR 2000 (E)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: USD 18,700-19,800
    Packaging Details: None fumigation wooden package(Package size: 3350*1070*1550mm)
    Delivery Time: 10 working days after receive your payment
    Payment Terms: T/T, Western Union
    Supply Ability: 20 Sets Per Month
    Contact Now
    Detailed Product Description
    Size Of Panel: 2.1m Max Resolution: 1800DPI
    Type: Inkjet Printer Condition: New
    Print Head: Epson 4720*3 Color Model: Dual CMYK
    Ink Supply Model: Continuous Ink Supply Max Materials Width: 2100mm
    Rip Software: Maintop 5.3 Rip Software Compatible OS: Win XP&Win 7
    Net Weight: 646KG Wet Weight: 886KG
    Ink: Sublimation,Reactive And Pigment Ink Material: Polyster,Cotton,Wool And Silk
    Print Speed: 45 Sqm / H In 4 Pass
    High Light:

    large format printers

    ,

    fabric printer machine

    ,

    large format plotter

    Product name:   Subliamtion printer with three 4720 print heads



    Working speed :







    Printing resolution and speed

    360x1800dpi(3pass) 65m²/h
    720x1200dpi(4pass) 45m²/h
    720x1800dpi(6pass) 25 m²/h







    Specifications:



    Product parameter

    Model

    CSR2000 (E)

    Print head

    Piezo technology, Epson 4720 printer head

    Ink

    Sublimation ink,pigment ink and reactive ink

    Color model

    Dual  KCMY

    Nozzles

    (180 nozzles x 8 lines ) x2 heads

    Printer head higher

    15mm / 6mm ( Adjustable )

    Ink supply model

    Continuous ink supply

    Max materials width

    2100mm

    Max printing width

    2000mm

    Roll diameter

    3 Inch

    Maximum weight for roll material

    100kg

    Interface

    USB 2.0

    RAM

    1.2M

    Printer power

    AC220-240V./AC220-240Adaptive   50/60Hz

    Sublimation machine

    AC220-240V. 16A. 50/60Hz

    Power consumption

    Direct dye sublimation heater 3500W

    Printer                               5500w

    Temperature

    20-32°C

    Humidity

    40-60% Non-condensing

    Weight

    Net Weight : 646kg                  Gross Weight : 886kg

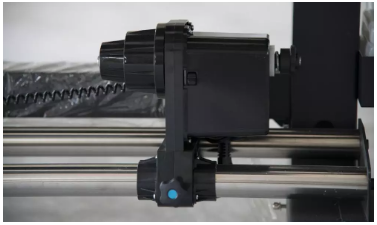

    • Perfect Experience of Media Feeding and Rolling System



    Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution 0

    Adopt Media Fixing Device to ensure smooth media feeding and rolling, meanwhile, the rolling bar is adjustable anytime, and the media tension bar enables media to enter rolling bar smoothly and completely by enhancing the tension of media

    • User Friendly Mechanical Design

    Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution 1

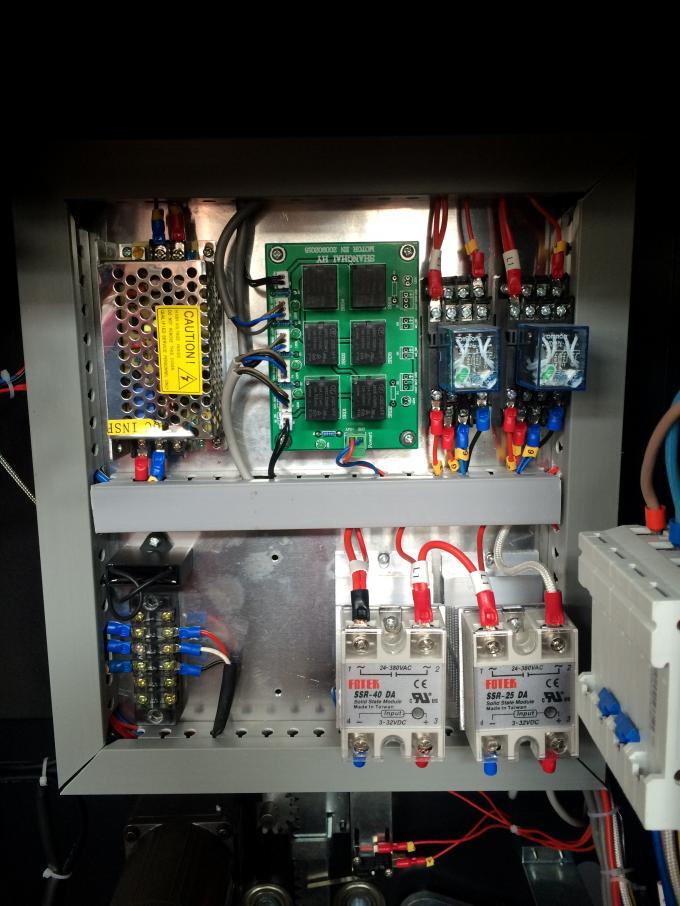

    Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergence stop button and adticollision device assist customer to make sure printer's stablity and performance in emergency situations.And All power lines and system are in side the printer, very easy to check and examine once need to check for operator.





    Advantages:

    • Directly print designs on fabric material,no need any transfer paper
    • After the high temperature to the fabric color fixation,the printed image color is bright and vivid with nice color gamut
    •  Rapid speed can reach 22 sqm / hour in 4 pass 1440 Dpi resolution
    •  Working process is simple, one person can operates with high efficency and short time.
    •  Low cost, liner breaking the highest costs performance





    Printed Samples :



    Continuous Ink Supply Sublimation Printer With Three 4720 Print Heads 1800DPI Max Resolution 2



    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manul,and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
