Product Details:
|
| Size Of Panel: | 2.1m | Max Resolution: | 1800DPI |
|---|---|---|---|
| Type: | Inkjet Printer | Condition: | New |
| Print Head: | Epson 4720*3 | Color Model: | Dual CMYK |
| Ink Supply Model: | Continuous Ink Supply | Max Materials Width: | 2100mm |
| Rip Software: | Maintop 5.3 Rip Software | Compatible OS: | Win XP&Win 7 |
| Net Weight: | 646KG | Wet Weight: | 886KG |
| Ink: | Sublimation,Reactive And Pigment Ink | Material: | Polyster,Cotton,Wool And Silk |
| Print Speed: | 45 Sqm / H In 4 Pass | ||
| Highlight: | large format printers,fabric printer machine,large format plotter |
||

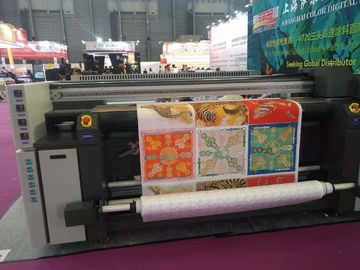

Product name: Subliamtion printer with three 4720 print heads
Working speed :
|
Printing resolution and speed |
360x1800dpi(3pass) 65m²/h |
| 720x1200dpi(4pass) 45m²/h | |
| 720x1800dpi(6pass) 25 m²/h |
Specifications:
|
Product parameter |
|
|
Model |
CSR2000 (E) |
|
Print head |
Piezo technology, Epson 4720 printer head |
|
Ink |
Sublimation ink,pigment ink and reactive ink |
|
Color model |
Dual KCMY |
|
Nozzles |
(180 nozzles x 8 lines ) x2 heads |
|
Printer head higher |
15mm / 6mm ( Adjustable ) |
|
Ink supply model |
Continuous ink supply |
|
Max materials width |
2100mm |
|
Max printing width |
2000mm |
|
Roll diameter |
3 Inch |
|
Maximum weight for roll material |
100kg |
|
Interface |
USB 2.0 |
|
RAM |
1.2M |
|
Printer power |
AC220-240V./AC220-240Adaptive 50/60Hz |
|
Sublimation machine |
AC220-240V. 16A. 50/60Hz |
|
Power consumption |
Direct dye sublimation heater 3500W |
|
Printer 5500w |
|
|
Temperature |
20-32°C |
|
Humidity |
40-60% Non-condensing |
|
Weight |
Net Weight : 646kg Gross Weight : 886kg |
Firm structure enables high speed printing without shake. Adjustable printer stand and feet ensures printer level. Meanwhile, emergence stop button and adticollision device assist customer to make sure printer's stablity and performance in emergency situations.And All power lines and system are in side the printer, very easy to check and examine once need to check for operator.
Advantages:
Printed Samples :
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
