High Speed Textile Digital Printing Machine Dual CMYK Color Mode

High Speed Textile Digital Printing Machine Dual CMYK Color Mode

    • High Speed Textile Digital Printing Machine Dual CMYK Color Mode
    • High Speed Textile Digital Printing Machine Dual CMYK Color Mode
  • High Speed Textile Digital Printing Machine Dual CMYK Color Mode

    Product Details:

    Place of Origin: Shanghai,China
    Brand Name: SAER
    Certification: CE
    Model Number: CSR 3200KJ

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: Non fumigation wooden package
    Delivery Time: 10 working days after get your payment
    Payment Terms: 100% T/T in advance
    Supply Ability: 50 sets per month
    Contact Now
    Detailed Product Description
    Product Name: Digital Textile Flag Printing Machine Application: Indoor Decoration & Outdoor Advertisement `
    Resolution: 600dpi Minimum And 1800dpi Maximum Color Mode: Dual CMYK
    Voltage: 380V,50 / 60HZ Print Head Type: Two / Four Kyocera Print Head
    Rip Software: Onyx Compatible OS: Win XP & Win 7
    Working Type: Computer Directly Control Output Combine With: All-in-one Printer And One Filter Fan
    Ink Supply Mode: 4color Mode:400cc Cartridge*2/color 800cc/color Ink Supply Mode: Continous Ink Supply
    Print Speed: 120 Sqm / Hour In 2 Pass Ink Type: Sublimation And Pigment Ink
    High Light:

    banner printing machine

    ,

    textile digital printing machine

    ,

    fabric printing machine

    High Speed 120sqm / hour Flag Printing Machine




    Contents:



    One 3.2m impartible textile printing system(print and heat synchronously)

    One filter fan for pollute waste air protect the environment.



    Usage:



    Directly print on roll textile material,after the step of print,through high temperature of heating,the completed fabric can directly to make every kinds of flags,and for home decoration,the fabric can stand sunshine and can wash,no fade.



    Technical Detais:



    Product Name Digital Textile Flag Printing Machine
    Model    CSR3200KJ
    Combine With   impartible Printing system and one Filter Fan
    Print head Piezo technology,Two / Four industrial KYOCERA print heads
    Ink Sublimation ink,Reactive ink,Pigment ink
    Media Type   Polyester,Cotton,Linen,Silk,Wool etc
    Color mode Dual CMYK
    Nozzles (180nozzles*8lines)*2 or 4 heads
    Print head higher Adjustable
    Ink supply mode 4 color mode:400cc cartridge*2/ color 800cc / color
    Max meterials width 3300mm
    Max printing width 3200mm
    Printing resolution and speed Resolution speed
    600*600dpi 2pass 120㎡/h
    600*600dpi 3pass 60㎡/h
    600*900dpi(3 pass) 75㎡/h
    600*1200dpi 4pass 48㎡/h
    720*1080dpi 6pass 30㎡/h
    Roll owter diameter 3 Inch
    Max weight for roll materials 100kg
    Printer Power   AC220-240V(Adaptive).50 / 60Hz±1Hz
    Sublimation heater power AC380V.30A
    Printer Power consumtion  1.5KW
    Heater Power consumtion 8kw
    Environment Temperature:20-32℃
    Humidity:40-60℃(Non-condensing)
    Weight 2000kg
    Rip Software   Onyx Optional
    Compatible OS   Win XP & Win 7





    Onyx Rip Software:

    1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
    2.Colorful color replacement function can easily reproduce the required color.



    Available Ink and Material:



    1) Sublimation Ink (water based): mainly used in polyester fabric.

    Completed fabric can use to make all kinds of flags,banner shows and for home decoration

    2) Reactive Ink:For cotton,linen and silk etc.

    After printing and heating,the materials can use to make clothes and scarf.

    3) Pigment Ink:For all kinds of textile fabrics.



    Specifications:



    1. Low cost

    2. High productivity

    3. Dye Sublimation system

    4. Directly print on textile material



    Save Money         No need to use transfer paper

    Save Time            No need to perform heat transfer step

    Save Space           No need to keep a workplace for a heat transfer


    Description:


     Speed and precision perfectly reflected

    With 1800 DPI highest precision and 120 sqm/hour fastest speed

    Adopt high speed industrial KYOCERA printhead

    X-ais use liner motion motor and magnetic grating

    Y-axis use Fuji AC servo motor

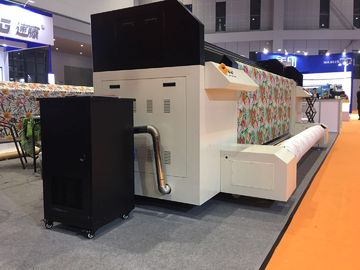

    High Speed Textile Digital Printing Machine Dual CMYK Color Mode 0

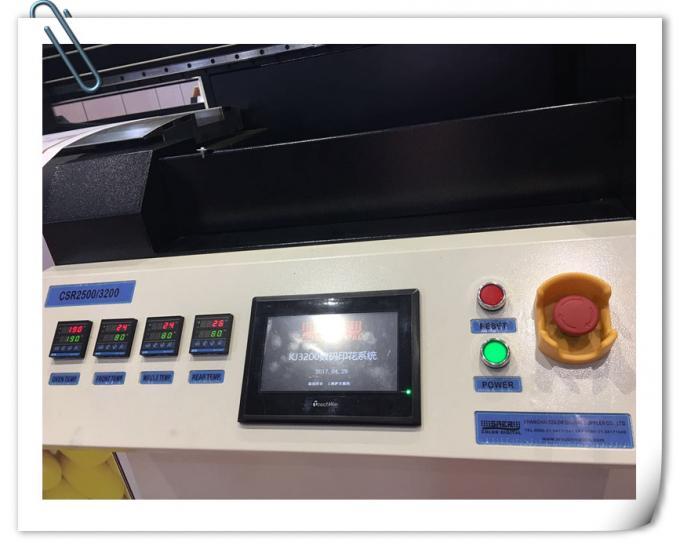

    High Speed Textile Digital Printing Machine Dual CMYK Color Mode 1
    Applications:



    Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.

    Outside: Advertising materials to make flag, banner, act fast show and so on.



    High Speed Textile Digital Printing Machine Dual CMYK Color Mode 2


    After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



    How To Order:



    Inquriy-------Quotation-------Order-------Production-------Quality Control-------Packing-------Shipping-------Delivery
