1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers

1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers

    • 1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers
    • 1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers
  • 1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers

    Product Details:

    Place of Origin: Shanghai of China(Mainland)
    Brand Name: SAER
    Certification: CE Approval
    Model Number: SR 1800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiation
    Packaging Details: None fumiation wooden package(Package Size:3400*880*1330 mm)
    Delivery Time: Within 5 working days after payment
    Payment Terms: Western Union, T/T
    Supply Ability: 100 Sets Per Month
    Contact Now
    Detailed Product Description
    Color Mode: Double 4 Color CMYK Ink: Sublimation Ink,Reactive Ink,Pigment Ink
    Include: One 1.8 M Sublimation Heater And One Filter Fan Voltage: 220-240V,50HZ
    United Printer: Mutoh,Mimaki,Roland And Any Other Piezo Printer Condition: New
    Heat Media: Polyster,Cotton,Linen And Silk Working Width: 1800mm
    Working Type: Roll To Roll Or Directly Out Machine Type: Stand Alone Or Unit With Any Piezo Printer
    Print Speed: 20-100m/hour
    High Light:

    textile printing machines

    ,

    sublimation oven

    1.8M Color Fixation Machine Use With Piezo Printers To Show Vivid Image





    Introduction:



    Two Parts:

    One 1.8m Sublimation Textile Heater,high temperature to fix the color of fabric after printer printed.

    The other is Activated Carbon Filter Fan to collect wasted gas.



    Specification:



    1. Low cost
    2. High productivity
    3. Working together with piezo printers.
    4. Directly heating on textile with high temperature.

    5. Good after sales service.



    Characteristics:



    1. Together with printer,save space and time,easy to operate.

    2. Can seperately operate,improve the working speed.

    3. Can Unit any piezo printers,like Mutoh Mimaki and Roland.

    4. Far infrared blacktube heating,can work at least 10000 hours.

    5.Can work 24 hours without interception.



    Product Description:



    Product Name Printer Dryer
    Brand SAER
    Product Model SR 1800
    Power 3.8KW
    Working Width 1800MM
    Heat Tuble Dimension 2200MM
    Working Temperture 100 to 250 °C
    Tension 0 to 1.2Kg
    Working Voltage 220~240V 50HZ
    Take Up working Method Directly out or Roll to Roll.
    Available Printer Mimaki, Roland , Mutoh and any Piazo Printer



    Features :



    • Easy to load the media in and out oven during your machine working
    • Easy to open the caver to clean inside of oven
    • Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    • Easy to change the active carbon from the filter
    • Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.
    • No smell ,No Pollution.
    • Passed CE certification.



    Advantage:


    1. Exhaust without any smell, good environment need.
    2. Normal tempreture for exhaust, no dangerous for hot air out.
    3. High Efficiency cold system to make sure the exhaust temperture less then 25 Degree
    4. Drawer-type device in a timely manner to facilitate the replacement of activated carbon to ensure

    that the emission of harmful gases



    Application :



    Color appear and fixation of Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, curtain,indoor and outdoor printing etc



    After Sales Service:



    1. With one year warranty and lifelong technical support.

    2. Offer Video and operation manual, and the professional technical staff online guidance.

    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier



    Product detail picture:

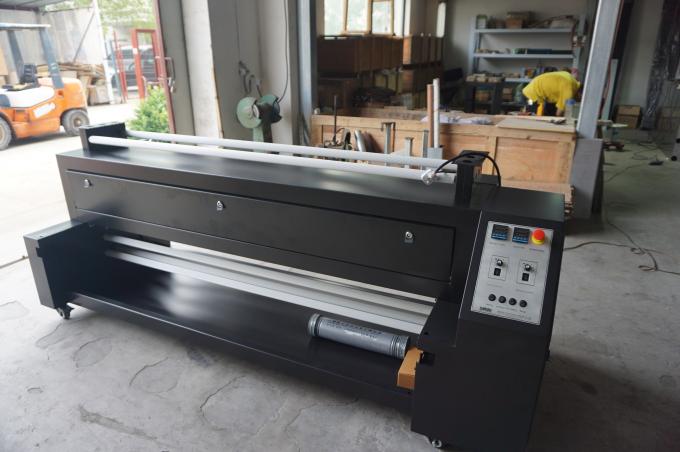

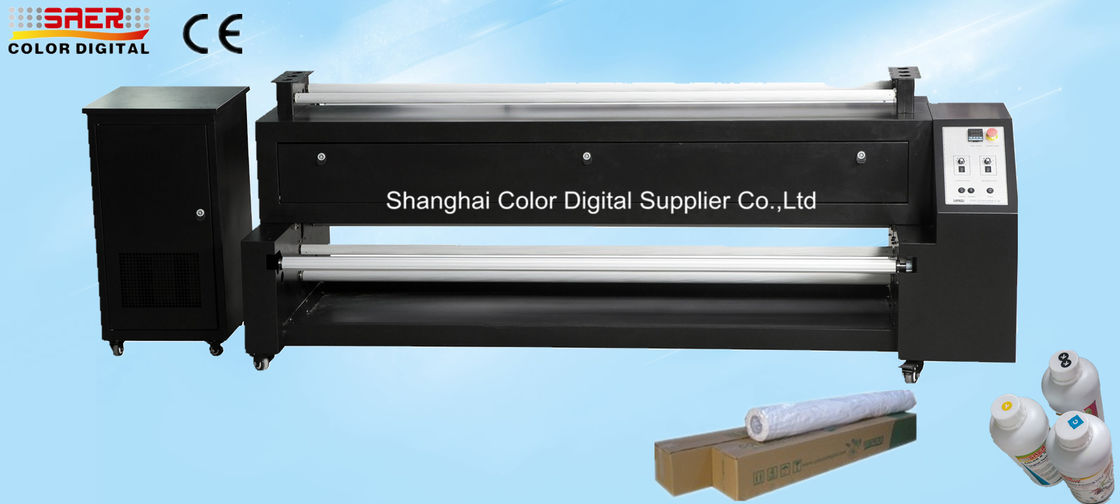

    1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers 0

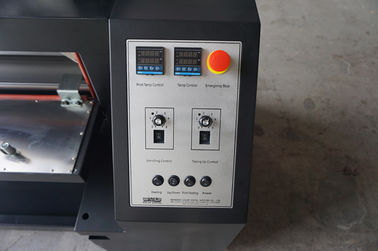

    1.8M Color Fixation Machine Use Sublimation Heater With Piezo Printers 1
