| Product Name: | Direct Fabric Plotter | Application: | Indoor & Outdoor Flag Making |
|---|---|---|---|
| Max Resolution: | 1800 DPI | Color Mode: | Dual CMYK |
| Voltage: | 220V | Gross Power: | 5.5KW |
| Print Head Type: | Three Epson 4720 Print Head | Plate Type: | Roll To Roll Printing Machine |
| Rip Software: | Maintop Rip Software Onyx | Compatible OS: | Win XP & Win 7 |
| Printing Width: | 3.2m | Ink: | Sublimation,Reactive And Pigment Ink |
| Printing Interface: | Connect With Computer | ||
| High Light: | mimaki digital printing machine,digital fabric printer,continuous inkjet printer |
||

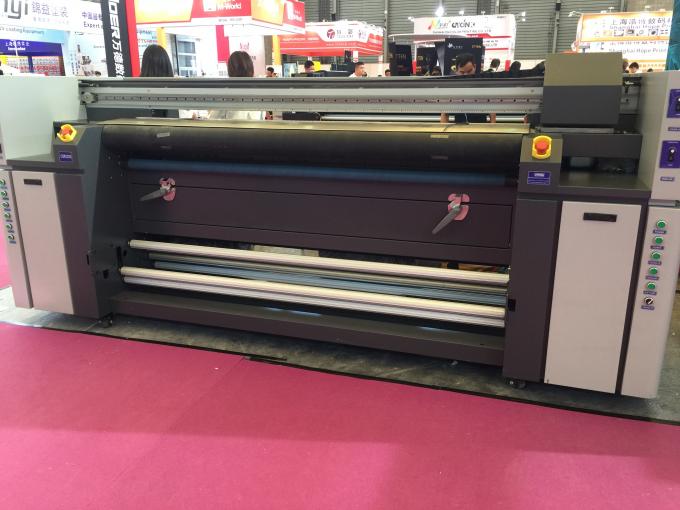

Flags Fabric Printing Machine 3200mm Large Format Plotter With 4720 Epson Print Head
Specifications:
| roduct name | Economic CSR3200 Sublimation Machine | ||
| Item No. | CSR 3200 | ||
| Printhead | EPSON 4720 | ||
| Number of Printhead | Three | ||
| Print Resolution | 1800dpi | ||
| ink | sublimation ink/pigment ink. | ||
| Maximum Print Width | 2100mm | ||
| Print Speed | 3 pass | 360x1800DPI | 65m²/h |
| 4 pass | 720X1200DPI | 45m²/h | |
| 6 pass | 720x1800DPI | 35m²/h | |
| Printer Head height | Adjustable 1.5~6mm | ||
| Ink | Type | Sublimation Ink, pigment ink | |
| Color | dual CMYK | ||
| Ink Supply System | Continuous Ink Supply System | ||
| Media | Maximum Width | 2000mm | |
| Feeding mode | Automatic feeding and taken-up system | ||
| weight | Sublimation machine net weight 800kg, gross weight 1000kg | ||
| power consumption | sublimation heater | Directly dye sublimation heater 3500w | |
| printer | printer 1000w | ||
| printer power | AC210-230v | 50-60HZ 16A | |
| temperature | 25-35°C | ||
| humidity | 35-65%(non-condensing) | ||
Printing Resolution And Speed:
Resolution(DPI) Speed
360*1800sdpi(3pass) 65m²/h
720*1200dpi(4 pass) 45m²/h
720*1800dpi(6 pass) 35m²/h
Advantages:
1. Direct textile sublimation printer can directly print on polyster fabric,no need any transfer paper.
2.The printed fabic after sublimation heater process can directly make banner flag etc,no fade.
3.The machine has an easy learing curre,you will be able to use iy perfectly within 3 days.
Description:
1. three Epson 4720 Print heads,faster speed,longer head life time.Feather printing funcation available,print heads correction and counterpoint are more easy.
2. Using HIWIN mute guide rail.Germany IGUS silent drag chain make your printing environment more quiter
3. X axis and Y axis are using AC servo motors.
4. Intelligent print head cleaning service,supplys safe and convenient print head cleaning and protection function.
5. Equipped with the feeding motor Positive and Negative transfer function,taking and feeding constant tension transmission syst.
6. The unique print platform design to make the cloth always smooth in the process of printing.
7. Unique filtering lampblack system,make the picture very clean.
8. Taking up and feeding roller are inflatable roller.
9. Taking up and feeding fabric are smoothly
10.Low cost and no need any transfer paper.
Applications:
Interior Home Decoration:Print on polyster fabric to make windows curtain and Tablecloth,sheets and so on.
Outside:Advertising materials to make flag,banner,act fast show and so on.

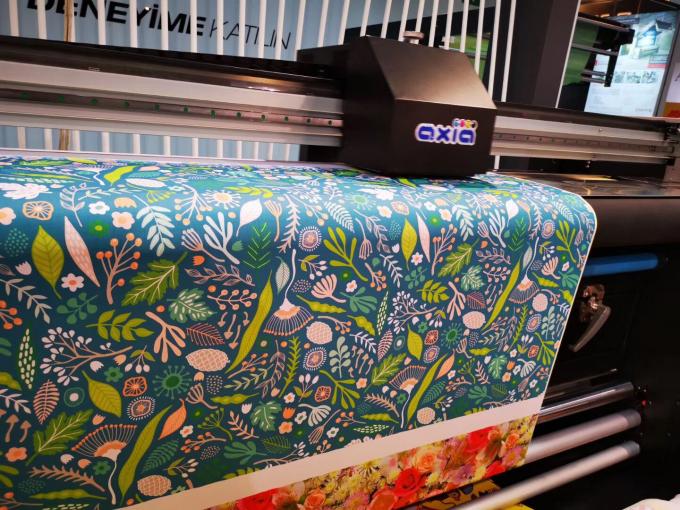

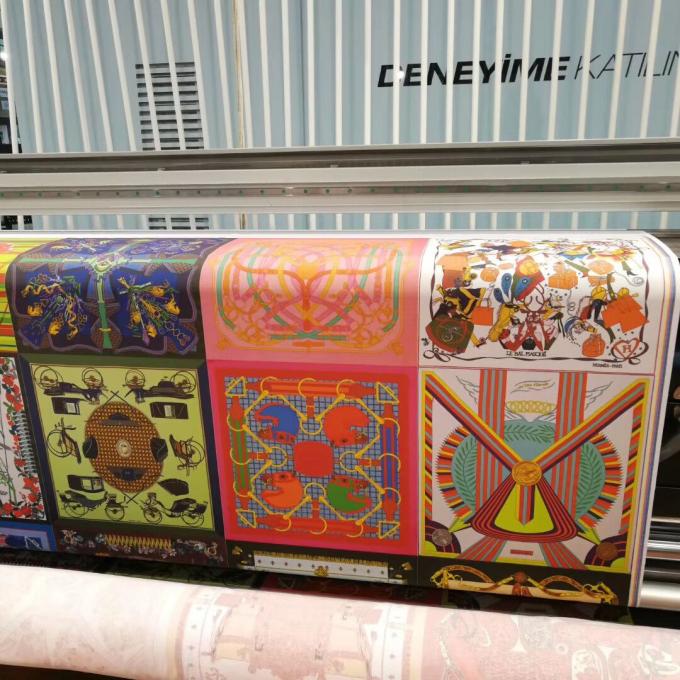

Printing Samples:
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manul,and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
