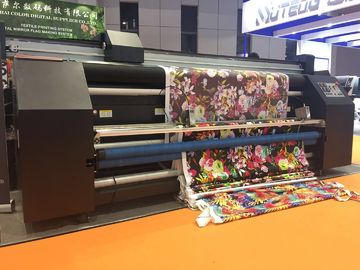

Continous Ink Supply Mode Digital Fabric Printing Machine

large.img.alt

Large Image :  Continous Ink Supply Mode Digital Fabric Printing Machine

Verified Supplier

China

Verified Supplier

China

Detailed Product Description
Printhead: Two Pieces Of Epson DX5 Piezo Heads Printing Speed: 23 ㎡ / Hour In 4 Pass
Material Can Print On: Sublimation Polyester,cotton,silk,wool,mixed Etc Ink Type: Dye Sublimation Ink,reactive Ink,pigment Ink
Service: Support Oversea Service,Online Suppot Work Way: Roll To Roll Directly Print On Fabric Material
Voltage: 220V-240V / 50 HZ Compatible OS: Win XP & Win 7
Rip Software: Onyx Ink Color: CMYK
Ink Supply Mode: Continous Bulk Ink System Dry Type: Heater / Oven Dry
Maximum Media Width: 2400mm Maximum Print Width: 2200mm
Print Interface: USB Package Size: 3550*1111*1510MM
Net Weight: 788kg Gross Weight: 986kg
High Light:

Continous Ink Fabric Printing Machine

,

CMYK Digital Fabric Printing Machine

,

2200mm Fabric Printing Machine

Continous Ink Supply Mode Digital Fabric Printing Machine





Contents:



One all-in-one Fabric printer (print and heat together,Synchronous operation)

One filter fan for pollute waste smoke,to protect the enviroment



Usage:



Serve solutions for small production, sample making ,designer ideas and training areas .



Product Feature



1. This Dye Sublimation Textile Printer Machine For POLYESTER  and Full cotton . It can Direct Printing on Sublimation Polyester. It also can print on full cotton. If you print cotton fabirc . this machine have to use Pigment Ink.

2. It  Adopt Newsest Epson DX5 Printhead With High Precison.

3. This Textile Printer Machine For Flag Use Dye Sublimation Ink . No Smell, no pollute.

4. This machine with print and heat function . save cost and place.

5. It is direct print image into Fabric .



Product Technical Data





                                     Product  Parameter
Model CSR 2200
Print head Piezo texhnology,Epson 5th printer head
Ink Sublimation ink,Reactive ink,Reactive ink
Color mode 4*4 color
Nozzles (180nozzles*8lines)*2head
Print head higher Adjustable
Ink supply mode Continuous Bulk Ink System
Max meterials width 2400mm
Max printing width 2200mm
Printing resolution and speed Resolution speed
720*360dpi     2pass 40㎡ / h
360*1080dpi   3pass 32㎡ / h
720*720dpi     4pass 22㎡ / h
720*1080dpi   6pass 18㎡ / h
        720*1440dpi   8pass 12㎡ / h
Roll owter diameter 3 Inch
Max weight for roll materials 100kg
Interface USB 2.0/HIUSB
RAM 128M
Printer with heater  power AC220V 50/60Hz
Power consumtion 6.5KW
Environment Temperature:20-32℃
Humidity:40-60℃(Non-condensing)
weight 780kg



Specifications:



Save Money   No need to use transfer paper

Save Time      No need to perform heat transfer step

Save Space    No need to keep a workplace for a heat transfer



Product Features:



  • Saer Textile Inkjet Printer: with high resolution, outdoor and indoor applied, designed especially for printing of textile, sublimation banner cloth etc
  • This unit is double 4 color type outdoor and indoor printer, Adopts the Epson 5t h Generation of piezo technology, two heads, each head has 1440 nozzles in 8 rows, long using life.
  • Using HIWIN mute guide rail. germany IGUS silent drag chain, make your printing environment more quiter.
  • Strong Media Feed-in system, for smooth printing on heavy materials, such as textile, sublimation banner cloth and so on.
  • X axis and Y axis are using AC serve motors

Continous Ink Supply Mode Digital Fabric Printing Machine 0



characteristics:



1. Low cost: About 2 degree electricity cost per hour with non-stop running

2. High productivity:40m2 / hour of the speed

3. Dye Sublimation system: print onto fabric with sublimation ink.

4. Directly print on textile: no need any transfer paper.

5. Good after sales service: 1 year maintenance period.



Produtc Service :



1. This machine has One year warranty .

2. We Support Oversea technical service and with all life techincal support.



Application Field



It is widely used in Textile, flag, poster, banner, tablecloth, wall pictures, interior decoration, indoor and outdoor printing etc




Continous Ink Supply Mode Digital Fabric Printing Machine 1
