Digital Automatically Fabric Heating Oven With Filter In 3.2m Width

Digital Automatically Fabric Heating Oven With Filter In 3.2m Width

    • Digital Automatically Fabric Heating Oven With Filter In 3.2m Width
    • Digital Automatically Fabric Heating Oven With Filter In 3.2m Width
    • Digital Automatically Fabric Heating Oven With Filter In 3.2m Width
  • Digital Automatically Fabric Heating Oven With Filter In 3.2m Width

    Product Details:

    Place of Origin: Shanghai of China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: SR 3200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiation
    Packaging Details: Non fumigation wooden pakage(Package size:4350mm*1310mm*1230mm)
    Delivery Time: whithin 5 working days after get the payment
    Payment Terms: T/T, Western Union
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Plate Type: High Temperature Color Fixing Machine Automatic Grade: Automatic
    Condition: New Color & Page: Multicolor(Dual CMYK)
    Dimensions(L*W*H): 4350mm*1310mm*1230mm Working Width: 3.2m
    Working Type: Roll To Roll Available Printer: Mutoh,Mimaki,Roland And Any Piezo Electricity Printer

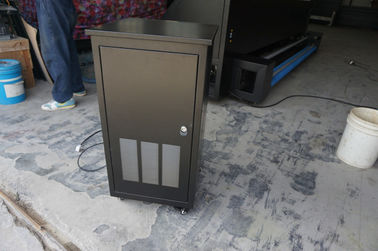

    United With: One 3.2m Heater Machine And One Filter Fan Available Media: Polyester,Cotton,Silk Etc
    High Light:

    digital printing machine

    ,

    digital printing machines

    Digital Automatically Fabric Heating Oven With Filter In 3.2m Width


    Products Features:


    1. Far infrared blackbody tube radiation electro thermal heating,our tube can work at least 10000 hours.
    2. Our machine have excellent heat insulation,can save more power for you.
    3. Easy to load the media in and out oven during your machine working
    4. Blackbody tube have more thermal efficiency
    5. Intelligent PID Temperature Control
    6. Feeding and Taking up Are synchronous
    7. Perfect oil & water collect solution in oven..
    8. Quick Tail Gas Treatment
    9. Convenient to Maintain


    Advantage:

    1· Electro thermal Heating
    2· Intelligent PID Temperature Control
    3· Digital Tension Control
    4· Feeding and Taking up Are synchronous
    5· Vacuum Fan Delivery Is Controllable


    6· Quick Tail Gas Treatment
    7· Convenient to Maintain
    8· Easy to Set up and Operate


    9. Easy to load the media in and out oven during your machine working
    10. Easy to open the caver to clean inside of oven
    11. Special clutch to control the feeding up system working or stop , it’s easy for you loading the roll materials.
    12. Easy to change the active carbon from the filter
    13. Adopting the most advanced thermal energy technology low power consumption, saves electricity and conserve energy costs.


    Specifications:



    Product Name

    Direct Dye Sublimation Heater machine

    Model

    SR 3200

    Blackbody Tube Working Model

    Far Infrared

    Mainly Use

    Appear and fix the color

    Power

    6.5kw(include filter fan)

    Maximum Width

    3300mm

    Heat Tube Dimension

    3400mm

    Working Temperature Control

    Room temperature ~250°C

    Temperature Control Method

    PID

    Tension Control

    3kg(optional counterweight to control tension)

    Maximum Speed

    0~2800mm/min

    Filter Fan Speed

    0~300m³/h

    Filter Fan Power

    400W

    Working Voltage

    220v 50hz

    Machine size

    4350mm*1310mm*1230mm(not include filter

    Net Weight

    625kg(not include filter)

    Gross Weight

    1025kg(Include filter and package)

    Operating mode

    Instrument control, manual, automatic opera


    Application:

    Our sublimation machine is CE certificated. And our sublimation  printer has been used most field such as flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.

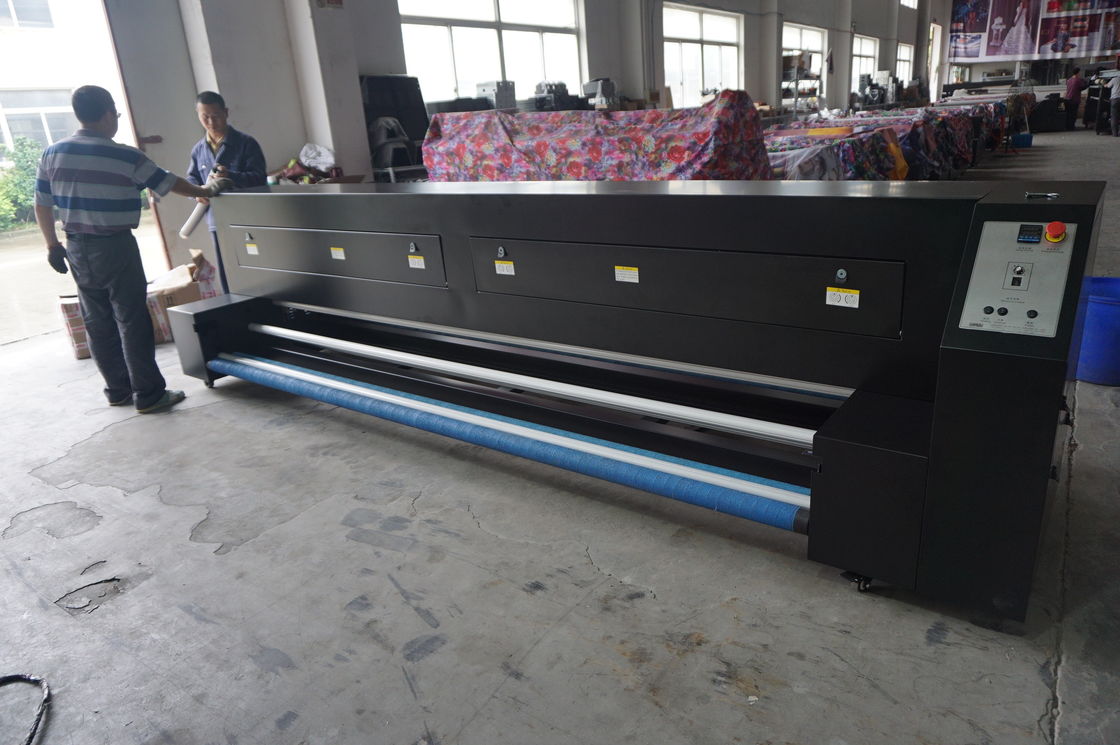

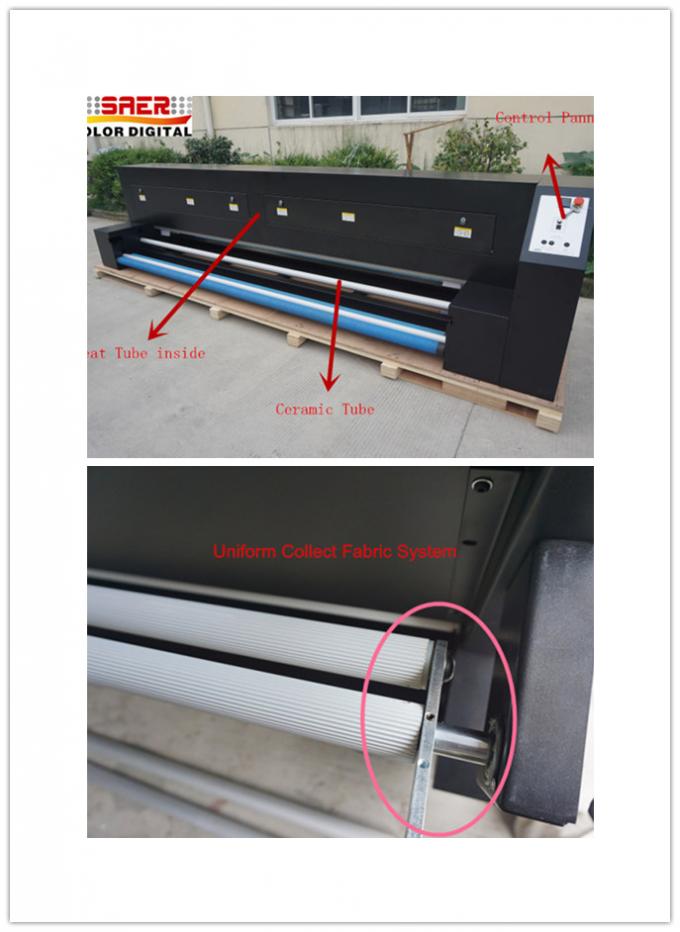

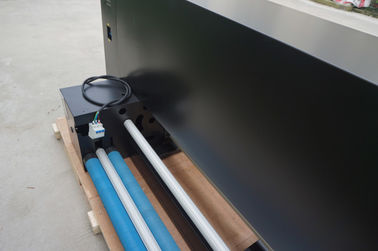

    Machine Details:

    Digital Automatically Fabric Heating Oven With Filter In 3.2m Width 0

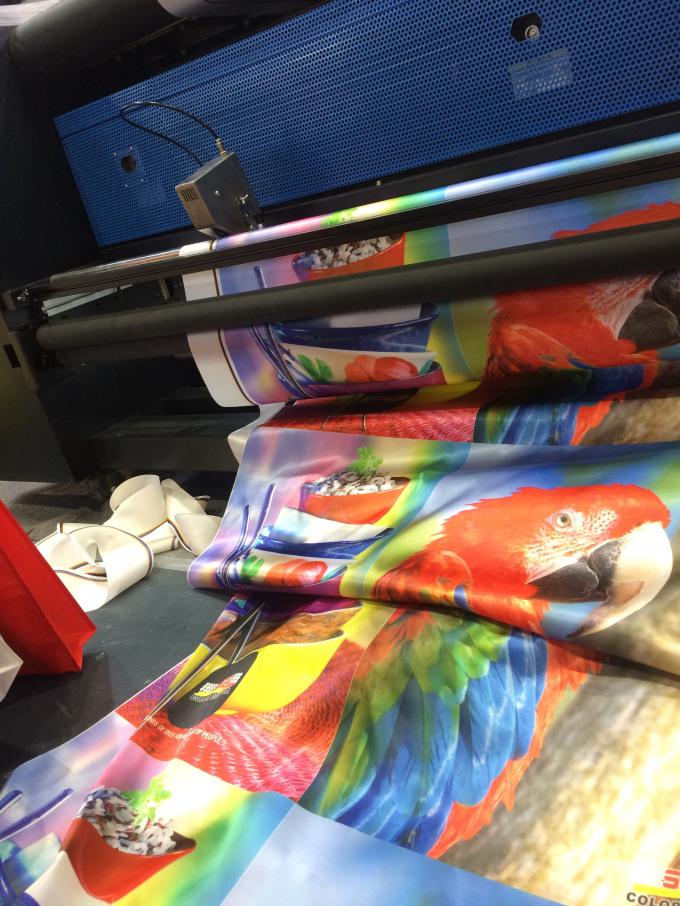

    Heated Samples:


     Digital Automatically Fabric Heating Oven With Filter In 3.2m Width 1

     After Sales Service:

    1. With one year warranty and lifelong technical support.
    2. Offer Video and operation manul,and the professional technical staff online guidance.
    3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
