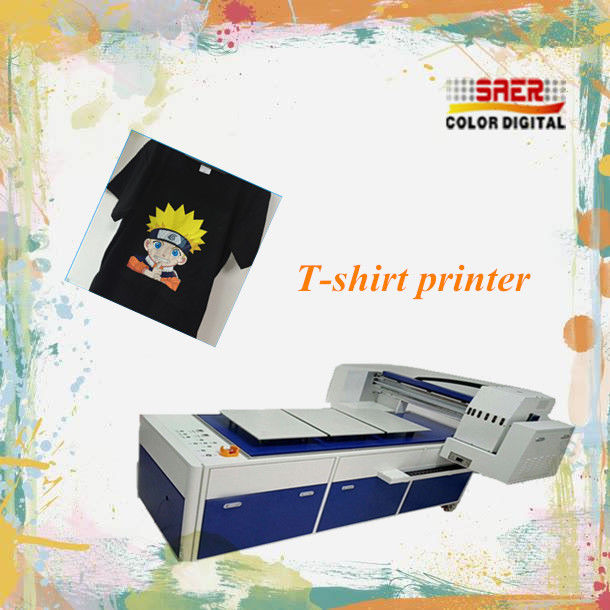

Direct To Garment 8 Color 1440dpi Dtg Printer T Shirt Garment Printer

Direct To Garment 8 Color 1440dpi Dtg Printer T Shirt Garment Printer

Direct To Garment 8 Color 1440dpi Dtg Printer T Shirt Garment Printer

Product Details:

Place of Origin: CHINA
Brand Name: SAER
Certification: CE CERTIFICATE
Model Number: CSR2200(R)

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: 14000USD-15000USD
Packaging Details: non fumigation wood package
Delivery Time: usually one week after payment
Payment Terms: T/T
Supply Ability: 1000 per month
Contact Now
Detailed Product Description
Usage: T-shirt Printing DPI: 1200*1800
MOQ: 1 Set Ink Type: Pigment
Type: Digital Printer,Inkjet Printer,T Shirt Flatbed Printered Warranty: 1 Year(Except Printhead)
Plate Type: Flatbed Printer,Textile Printer Tray Number: Three

Product name:  Direct To Garment 8 Color 1440dpi Dtg Printer T-Shirt Garment Printer







Machine Features:





High speed T shirt printing machine with 8 ricoh printhead, can print different color, three station design, support multi-version delivery, work efficiency.
Imported paint ink, soft feel and high color fastness co exist.Customized professional Rip software, picture looks more three-dimensional.












Machine Ink specifications:









Ink Color CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
Ink type Import pigment ink, good fastness,bright color
Ink supply Negative pressure supply ink











Parameters:





Items Technical Parameters
Model CSR2200(R)
Print head Print head Ricoh GH2220 head
QTY 8 pieces
Speed Production models A3 size 4pass Dark color fabric 1min.14s
Light color fabric 58s
precision A3 size 6pass Dark color fabric 1min.52s
Light color fabric 1min.27s
Tray Standard configuration Optional configuration
Tray size 380*480mm 600*1200mm
Tray Numbers 3 1
Interface USB
Computer system CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
Working environment temperature:20℃-30℃, humidity:55%-70%
Power supply 210-230VAC 50/60 HZ 16A
Software Rip software
Machine Dimension 2065*1705*1240mm
Machine Weight 260kg









Advantages:



1.Can print one piece t-shirts easily and conveniently or also can make mass production.For big size machine canprint on sheet cotton fabrics also.

2.Digital T shirt Printer is Capable of printing on black, read, white and any color t shirts.
3. printing surface can print 600*1200.
4.head can lift by 6 cm.Can replace by any size table
5.The spacing between printing nozzle and cloth can maintain a height of 10mm.With the addition of a head-mounted collider, the spacing can greatly reduce the risk of rubbing against the head of the nozzle
6.With high viscosity of ink resin, high fastness of printed pattern.The ink is smooth and not easy to plug
7. Can be printed in cycles, saving the waiting time of manual laying.
8.Printing speed of output A3 format printing time is 1 minute 50.
9. Black cloth background color gradient layer is good, do not show white color.Ensure the breathability of fabric after printing.
10. White ink cycle can reduce white ink precipitation, prevent the bubbles in the ink from affecting the printing line.







Our Service:



Pre-sale service:

You can tell us your requirements, our professional sales staff will recommend you more suitable machines or solutions according to your requirements, which enable you to get the best effect from minimum input.



In sale Customer Service:

1. We also have customer service to support you once you place the order.

2. Any questions or requests can be reachable for you by mail,online message or phone.



After-sales Technical Support Service:
1.One year warranty for printer(not including printhead and consumables parts).
2.Technical service all life time.
3.BySkype, phone, whatsapp, mail trough video, photo with illustration to provide solutions.
4.Our tech team at your side when you are in need of help in the first time.



Other Special Services:

If you have any questions or suggestions for our work and products, please contact us, well reply you promptly. All are just for creating more value for you.









Related Machine:





Sublimation Machine:


Our sublimation machine is CE certificated. And our sublimation printer has been used most field such as T-Shirt printing, flag printing, banner poster printing, textile digital printing, carpet digital printing, windows curtain digital printing and interior decoration printing ,indoor and outdoor printing etc.


Fabric Printing System:

Our Sublimation System includes one brand new printer and one sublimation heater machine, directly print to the sublimation textile with sublimation ink, and then through our sublimation system to appear and fix the color ,after this the process printed pictures become very bright . No need any sublimation paper more !
















Printed Picture:



Direct To Garment 8 Color 1440dpi Dtg Printer T Shirt Garment Printer
