Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
Place of Origin: | Shanghai, China |
Brand Name: | SAER |
Certification: | CE Certification |
Model Number: | USR300 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiated |
Packaging Details: | Non-fumigation wooden box |
Delivery Time: | To be negotiated |
Payment Terms: | T/T, Western Union |
Supply Ability: | 50 sets per month |
Condition: | New | Print Dimension: | A3 |
---|---|---|---|
Ink Type: | UV Ink | Warranty: | 1 Year |
Automatic Grade: | Full-automatic | Video Outgoing-inspection: | Provided |
Color Configuration Of Printing: | CMYK+W+Varnish | White Ink Mixing System: | Yes |
Usage: | UV DTF Sticker Print | Plate Type: | Roll-to-Roll Printer |
High Light: | ONYX UV DTF Sticker Making Machine,30cm UV DTF Sticker Making Machine |

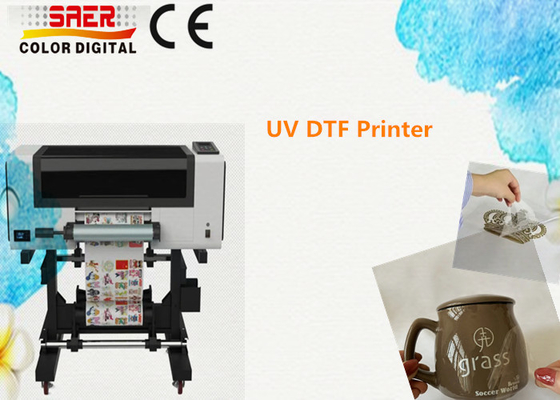

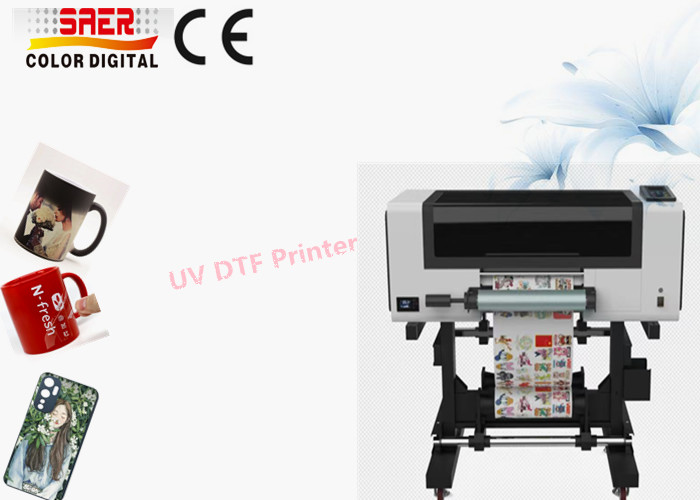

Product name: UV DTF Sticker Making Machine 30cm crystal sticker UV printer with ONYX software
Machine parameters:
Model | USR300 | |
Print head | Epson i1600 (3pcs) | |
Printing Technology | Piezo electric inkjet | |
Acceptable media |
Width | 300mm |
Thickness | Maximum 3mm | |
Weight | 50kg | |
Printing width | 300mm | |
Ink Cartridge |
Type | UV ink |
Capacity | 1500ml | |
Color | CMYK+W+Varnish | |
Printing resolution | Max 2400 dpi | |
Media heating system | 1200W | |
Interface | USB 2.0 | |
Power supply | AC220V, 50/60HZ | |
Weight | 112kg | |
Package Dimensions | 1230*840*650mm(138kg) |
Machine Printing Speed :
Printing speed |
4 pass(720*1200dpi) | 12 sqm/h |
6 pass(720*1800dpi) | 8 sqm/h | |
8 pass (720*2400dpi) | 6 sqm/h |
Our machine features:
1. Bright color and high definition, unlimited material, unlimited size, unlimited shape, low cost, convenient positioning, high efficiency printing.
2. Easy to use, already achieve full automation.
3.2-in-1 UV sticker DTF Printer - Traditional UV printing procedure includes printing and then laminating, but this
machine allows these two processes to realize at the same time.
4.No need laminators, realize the liberation of hands, improving work efficiency.Break the limits of printing products height, shape and size for flatbed printer .
5. Support common color printing and golden foil sticker printing.
After-sales service:
1, If you use our ink, we will always provide you with free repair service.
2, Our engineer can provide instant online support service.
3, We would send you spare parts and inks in lower price.
4, We can issue you excludsive dealership after we confirm our cooperation and we will 100% loyal to our dealers.
5, Free technical training will be provide in the factory.
Machine Maintenance Instructions:
1, Need to put some water into the ink stack cap while the machie is printin. It greatly keeps the ink cap wet to prevent agglomeration and the print head blocked.
2, Grating need be wiped with dry clean fabric for every month.
3, The machine need to be kept cleaned all the time. If can kept like a new machine, which will better.
4, Need to put some lunricating oil on the trolley track for every half a month or for every month.
5, As for the ink cap, scraper and lifting plate clean, must be kept clean all the time.
6, It is best to turn on the machine in two or three days if you do not use the machine for long time. And print the test strip or print some tasks to prevent the print head blocked.
FAQ:
1, Can you make our design?
Of course, your customized design (OEM/ODM) is available.
2, How long i can get the feedback after we sent the enquiry?
We will reply you within 12 hours in working day.
3,What's the universal lead-time for order delivery?
Small production: 3-4 days Mass production :7-15days or basing on your qty.
4, Can you make our design for the package?
Yes, you can send us the design which you need .We will value the price and make the exact same package basing on your design. Or we also have some packages for your reference.
5, What can you get from us?
Excellent products (unique design, advance printing machine,strict quality control ) Factory direct sale (favorable and competitive price) Great service(OEM,ODM, after-sales services, fast delivery) Professional.
6, What kind of shipping do you have?
DHL,FEDEX,EMS, etc.
Multifuncational Effect:
