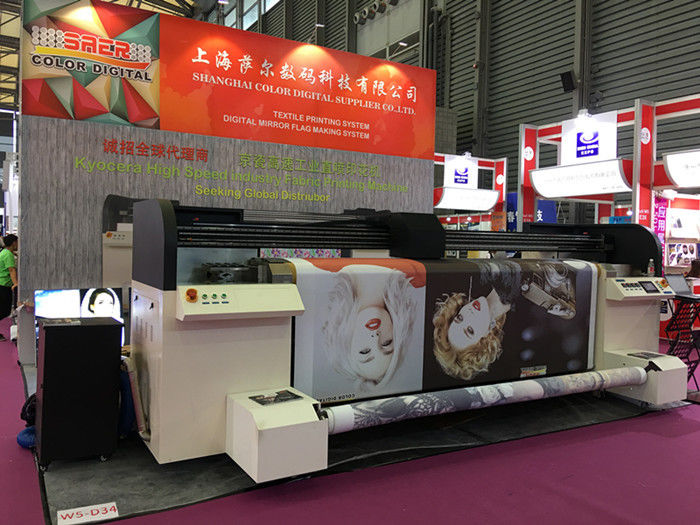

Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour

Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour

Large Image :  Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour

Verified Supplier

Shanghai of China

Verified Supplier

Shanghai of China

Detailed Product Description
Model: CSR 3200KJ Resolution: Maximum 1800 Dpi
Color Mode: Cyan,Magenta,Yellow,Black Print Head Type: Industrial Kyocera Drop-on-demand Micro-Piezo Print Heads ( Two Or Four Optional )
Rip Software: Onyx 12 Working Type: Computer Directly Control Output
Max Speed: 120sqm / Hour Drop Volume: 5PL
Media Heating: Pre & Post-Media Heating Ink Type: Sublimation Or Pigment Optional
Ink Supply Mode: Continous Ink Supply Roll Owter Diameter: 3 Inch

Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour





Characteristics



1, Heating pipes, four ceramic heating pipe, heating speed, heat more evenly.
2, Front and rear swing axle, you can make the fabric smooth continuous printing, easy to wrinkle.

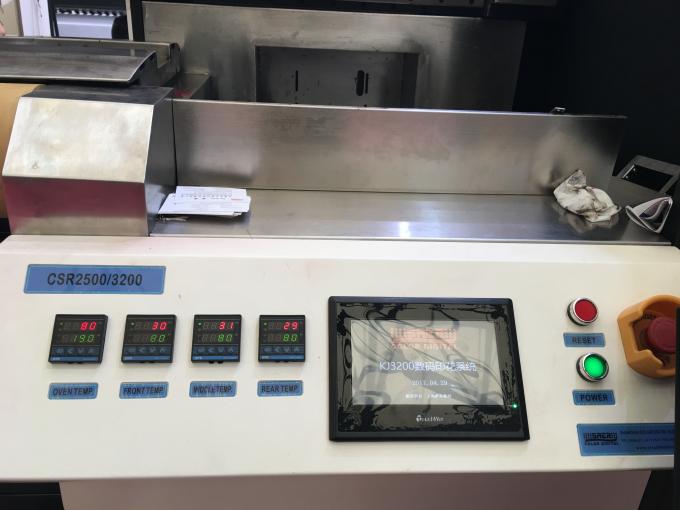

3, Intelligent temperature adjustable system (0-300 degrees can be adjusted)
4, Wearing a cloth bearing the weight of the shaft is in the 100kg.



Technical Details:



Product Name Digital Fabric Printing Machine
Model CSR3200KJ
Construction 3.2m All-in-one Printing system with one Filter
Print head Quantity Piezo technology Industrial KYOCERA print heads,Two / four PCS
Ink Sublimation ink,Pigment ink optional
Media Type   Different fabrics like Polyester,Cotton,Linen,Silk,Wool.polycotton etc
Color mode Cyan,Magenta,Yellow,Black
Nozzles (180nozzles*8lines)*2 /4 heads
Print head higher Adjustable
Ink supply mode

4color mode:400cc cartridge*2/color 800cc/color

Continous Bulk Ink System

Max meterials width 3300mm
Max printing width 3200mm
Roll owter diameter 3 Inch
Image Format JPG  Tiff and other common sizes
Real Time Tracking None
Media Feeder Yes
Media Take-up Yes
Auto cleaning system Yes
Picture Drying System Fan drying system,Infrared heating
Max weight for roll materials 100kg
Printer Power   AC220-240V(Adaptive).50/60Hz±1Hz
Sublimation heater power AC380V.30A
Printer Power consumtion  1500W
Heater Power consumtion 8kw
Environment Temperature:20-32℃
Humidity:40-60℃(Non-condensing)
Weight 2000kg
Rip Software   Onyx 12
Compatible OS   Win 7 & Win 8 & Win XP



Print Speed:



Printing resolution and speed Resolution speed
600*600dpi 2pass 120㎡/h
600*600dpi 3pass 60㎡/h
600*900DPI(3 pass) 75㎡/h
600*1200dpi 4pass 48㎡/h
720*1080dpi 6pass 30㎡/h

Media Details:



Breadth Processing Heating Drying Type
3.2m Roll to Roll + Auto Feeding + Auto Roll Up Pre & Post Media Heating Infrared Drying Polyester,Cotton etc



Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hourKyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hourKyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour

Onyx Rip Software:

1. Easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.



Available Ink and Material:



1) Sublimation Ink (water based): mainly used in polyester fabric.

Completed fabric can use to make all kinds of flags,banner shows and for home decoration

2) Pigment Ink:For all kinds of textile fabrics.



Specifications:



1. CMYK four Colors.

2. 3.2m Print Width.

3. Suitable for Water Based Ink, Sublimation Ink, Pigment Ink.

4. Indoor Signs, Textile Printing, Decoration and so on.

5. Automatic Feeding, Taking Up, Cleaning, Heating.

This type of high-tech inkjet printer is mainly used for advertising industry. It can present pictures vividly.



Description:


 Speed and precision perfectly reflected

With 1800 DPI highest precision and 120 sqm/hour fastest speed

Adopt high speed industrial KYOCERA printhead

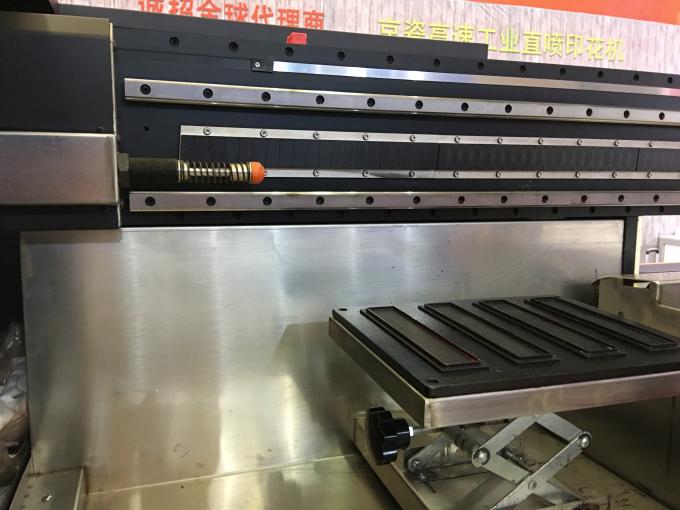

X-ais use liner motion motor and magnetic grating

Y-axis use Fuji AC servo motor


Examples of Use:



Clothing

SportsWear, T-Shirts, Accessories

HomeTextiles

BedLinen, Upholstery, Table Cloths

Soft-Signage

Flags,Wall Decorations, Outdoor Advertising





Digital Dye sublimation printer equipped with accuratetensile force system provides stable and hi-effective fabrics feeding process,which is suitable for a wide range of fabrics and overcome the difficulties of materials slant and pleat occurring while printing.

Digital sublimation textile printer printing width from 1800mm to 3200mm is available. It can print and produce various colorful banners, canvas and other coated fabrics and textile fabrics. And can be used both indoors and outdoors.



Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour Kyocera Heads CMYK Multicolor Digital Fabric Printing Machine 120sqm / hour
