Shanghai Color Digital Supplier Co., Ltd.
Professional Digital Textile Printing Equipment & Relevant Materials General Supplier
 |
| Place of Origin: | Shanghai Of China |
| Brand Name: | SAER |
| Certification: | CE |
| Model Number: | CSR 3200 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Non Fumigation Wooden Package(4460*1160*1730mm) |
| Delivery Time: | 10 working days after receive your payment |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 20 sets / month |
| Product Name: | Digital Fabric Printing Machine | Software: | ONYX Software |
|---|---|---|---|
| Color & Page: | Multicolor | Color Mode: | Dual CMYK |
| Voltage: | 380V | Print Head: | Epson High DIP Head *3 |
| Rip Software: | Indoor & Outdoor Advertising Field | Compatible OS: | Windows 7& Windows 10 |
| Include: | One 3.2m All-in-one Printing System And One Filter | Ink: | Sublimation ,Pigment Ink |
| Material: | Polyster,Cotton,Silk And Wool Fabric | Gross Power: | 6500W |
| High Light: | Beach Flag Digital Fabric Printing Machine,Multicolor Digital Fabric Printing Machine,Pigment Ink Digital Fabric Printing Machine |
||

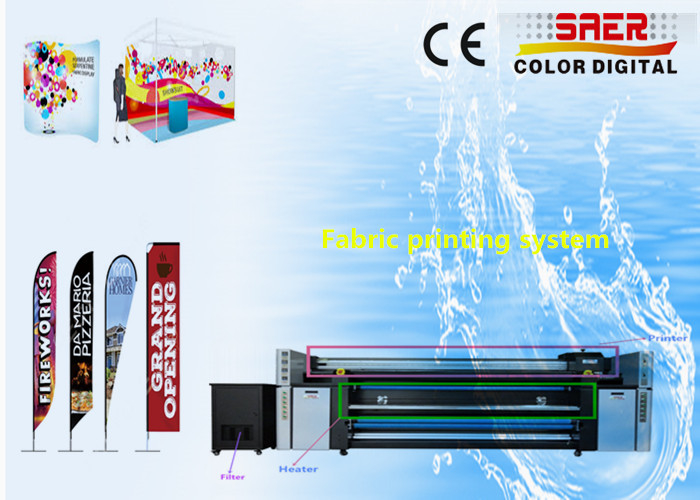

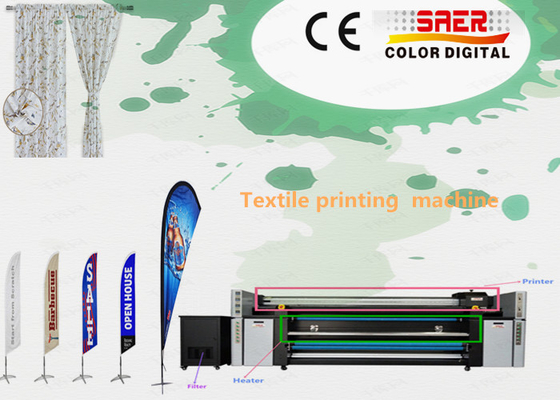

Product name: Beach flag printing machine / Large format banner Printing system
Specifications:
|
Model |
CSR3200 |
|
Print head |
Piezo technology, Epson print head |
|
Ink |
Sublimation Ink,Reactive ink and Pigment Ink |
|
Color Mode |
Dual CMYK |
|
Nozzles |
(180 nozzles*8 lines)*3 heads |
|
Print Head Height |
1.5mm/6mm(adjustable) |
|
Ink Supply Mode |
Continuous Ink Supply |
|
Max Material Width |
3300mm |
|
Max Printing Width |
3200mm |
|
Roll Owter Diameter |
3 Inch |
|
Max Weight For Roll Material |
100KG |
|
Interface |
USB3.0 |
|
RAM |
128M |
|
Printer Power |
380V |
|
Power |
Direct Dye Sublimation Heater 3500W |
|
Environment |
temperature 20-32 degree |
|
Weight |
1120KG |
Product Feature:
1. Direct Print image into fabric
2. This machine with print and heat in one machine Save price and save place.
3. It is adopt EPSON printhead with high precision.
4. This machine max print width 3.2m
Machine working speed:
|
Printing resolution and speed
|
Resolution(dpi) speed |
| 360*1800dpi(3 pass) 65m2/h | |
| 720*1220dpi(4 pass) 45m2/h | |
| 720*1800dpi(6 pass) 35m2/h |
Automatic feeding and collecting structure:
1,Intelligent infrared heater and fan drying system;
2,The machine through different quality tests is stable and competent enough for mass production requirement.
3,No Pinch roller, let the fabric no wrinkle and print smoothly
4,Keep the fabric good air permeability after sublimation
5,Printing groove designed specially for fabric printing to collect waste ink and keep
fabric clean.
6,Patented ink tanks keep ink supply constantly.
Competitive Advantage:
• Lower investment cost,3.2 meters width machine more usability
• One time molding mechanism design, reflect the stability and reliable of textile printer
• High speed
• Automatic high precision feeding system, make sure that the exact stationary into the cloth long figure carefree
• Using the sublimation ink, compatible with the advertising industry in backlit mode. more environmental, more beautiful effect.
Rip Software:
1. Onyx rip sofware easy to complete the Photos / vector data,replacement of RGB / CMYK,and can easily to achieve color change.
2.Colorful color replacement function can easily reproduce the required color.
Applications:
Interior Home Decoration: Print on polyester fabric to make windows curtain and Tablecloth, sheets and so on.
Outside: Advertising materials to make flag,roll up banner, act fast show and so on.
(1) 12-month warranty
(2) Free techinical traning
(3) On-site service
(4) Sample free
(5) Lifetime maintenace
After Sales Service:
1. With one year warranty and lifelong technical support.
2. Offer Video and operation manual, and the professional technical staff online guidance.
3. Guarantee prompt warranty service for main parts repairment and replacement by international courier
