Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color

Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color

    • Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color
    • Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color
  • Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color

    Product Details:

    Place of Origin: China
    Brand Name: SAER
    Certification: CE Certification
    Model Number: CSR2200(R)

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 14,000usd-15,000usd
    Packaging Details: Non-fumigation wooden box
    Delivery Time: withion one week workdays after get the payment
    Payment Terms: Western Union, T/T
    Supply Ability: 100 per month
    Contact Now
    Detailed Product Description
    Usage: T-shirt Printer Printhead: Ricoh GH2220
    Voltage: 220V/110V Ink Channel: 8 Color
    Ink: Pigment Ink Condition: New
    Automatic Grade: Automatic After -sales Service: Engineers Available To Service Machinery Overseas

    Product name:  Multifunctional t shirt printing machine and A3 size t-shirt printing machine





    Product Features:



    1. printing surface can print 600*1200.

    2.head can lift by 6 cm.Can replace by any size table

    3.The spacing between printing nozzle and cloth can maintain a height of 10mm.With the addition of a head-mounted collider, the spacing can greatly reduce the risk of rubbing against the head of the nozzle

    4.with high viscosity of ink resin, high fastness of printed pattern.The ink is smooth and not easy to plug

    5. can be printed in cycles, saving the waiting time of manual laying.

    6.Printing speed of output A3 format printing time is 1 minute 50.

    7. black cloth background color gradient layer is good, do not show white color.Ensure the breathability of fabric after printing.

    8. White ink cycle can reduce white ink precipitation, prevent the bubbles in the ink from affecting the printing line.

    9.Double guide rail machine is more stable and firm.art is extremely sharp and clear.

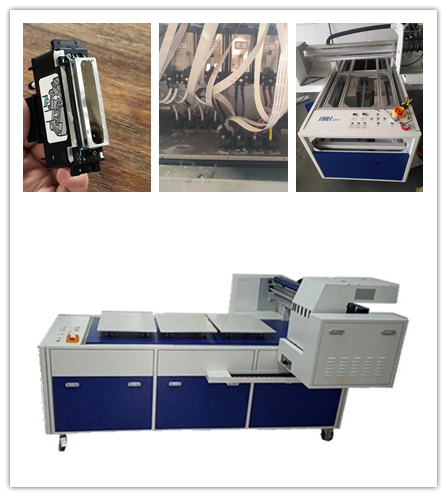

    Details of machine



    Multifunctional T Shirt Printing Machine A3 Size 220V / 110V Voltage 8 Color







    Parameters:







    Items Technical Parameters
    Model

    CSR2200(R)

    Print head Print head Ricoh GH2220 head
    QTY 8 pieces
    Ink Color CMYK+WWWW/CMYK+FMFY+WW/CMYK+OR BL+WW
    Ink type Import pigment ink, good fastness,bright color
    Ink supply Negative pressure supply ink
    Speed Production models A3 size 4pass Dark color fabric 1min.14s
    Light color fabric 58s
    precision A3 size 6pass Dark color fabric 1min.52s
    Light color fabric 1min.27s
    Tray Standard configuration Optional configuration
    Tray size 380*480mm 600*1200mm
    Tray Numbers 3 1
    Interface USB
    Computer system CPU>2GHz, 64 bit CPU, RAM>8G, Windows7,Windows10
    Working environment temperature:20℃-30℃, humidity:55%-70%
    Power supply 210-230VAC 50/60 HZ 16A
    Software Rip software
    Machine Dimension 2065*1705*1240mm
    Machine Weight 260kg


    How to choose a t shirt printing machines for sale ?



    1.Judge if the printer is of high resolution. Print an image on a pvc sheet with high resolution once. After the image is printed, put the pvc sheet on the flatbed printer and print again. If the image is very clear after

    twice printing, then the printer is of high resolution.
    2.Get to know if the company has good aftersale service? If you want to use the printer skillfully, you have to choose a company with good aftersale service.
    If you meet problems, the company must have technicians to give you technical supports.

    IF NOT YOUR PRINTER WILL STAY IN YOUR WAREHOUSE SLEEPING THERE.
